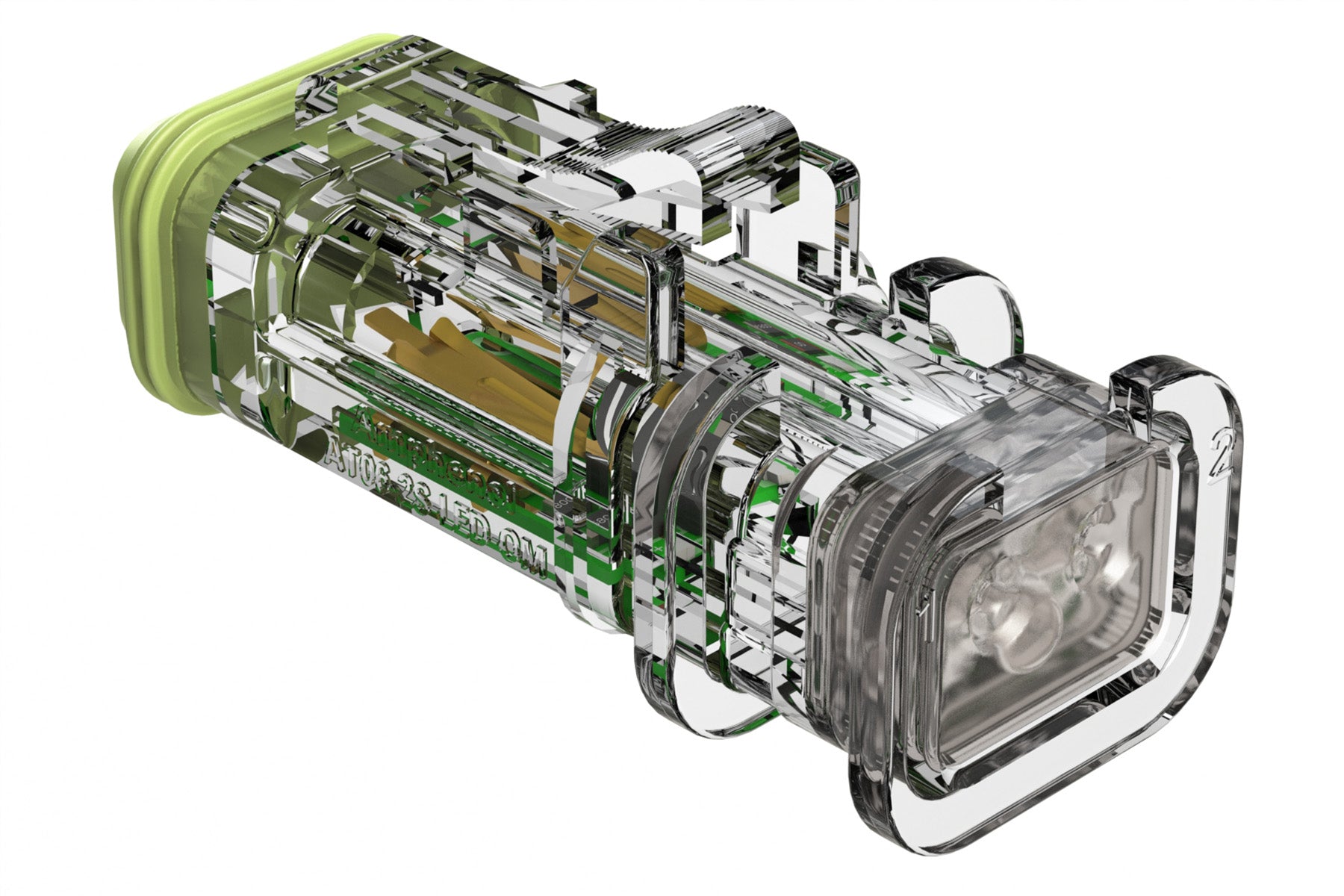

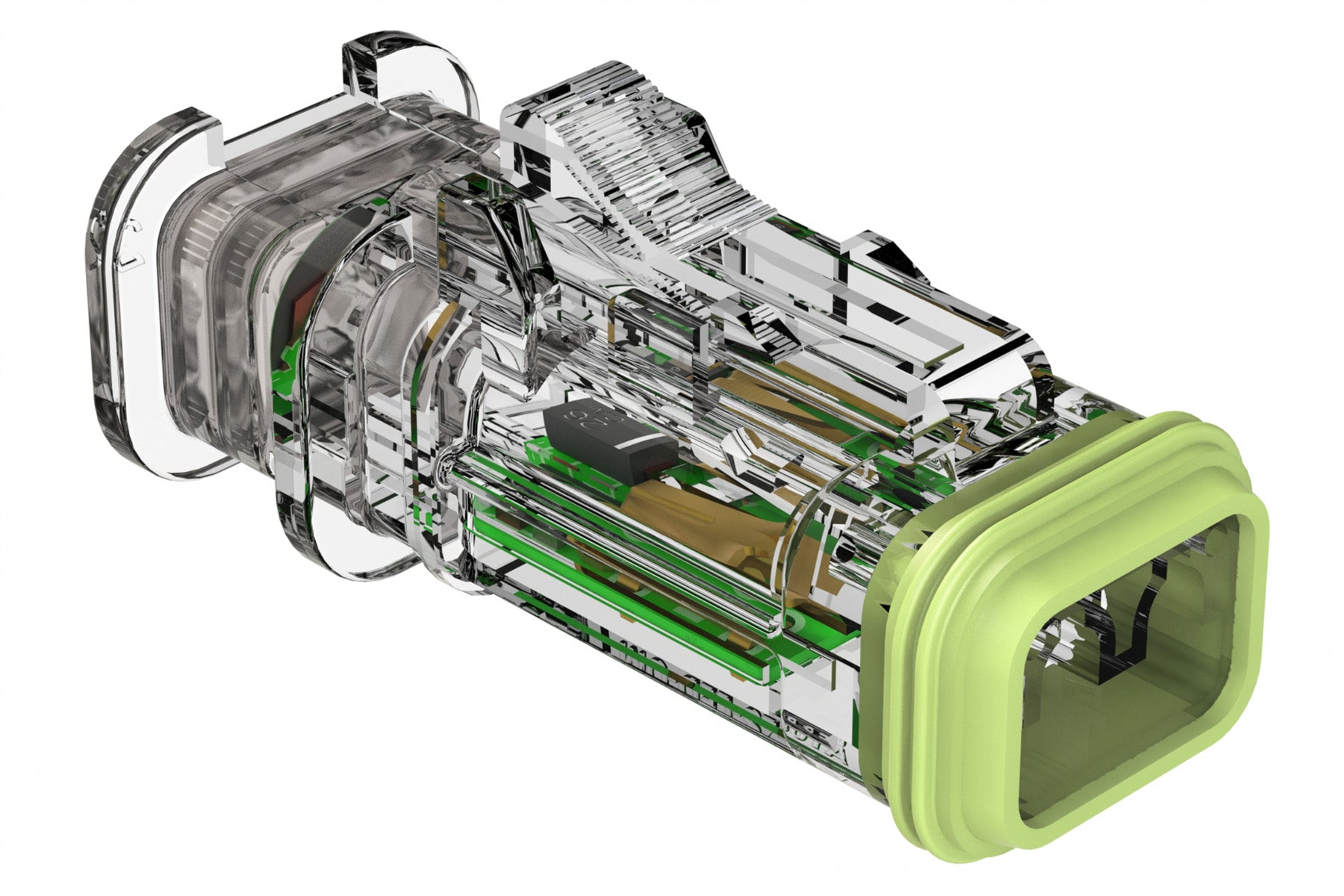

AT06-2S-LED1224VR-OMC 2 Position LED Overmold Plug, Socket, LED 12 V or 24 V, Clear Body, RVP Circuit, Reduced Diameter Seal, Green LED
AT06-2S-LED1224VR-OMC 2 Position LED Overmold Plug, Socket, LED 12 V or 24 V, Clear Body, RVP Circuit, Reduced Diameter Seal, Green LED
IMAGE MAY DIFFER
SKU:AT06-2S-LED1224VR-OMC
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 2Gender: Female
Contact Size: 16
Colour: Clear
IP Rating: IP68 (1M of Water for 24 Hours), IP69K. Both in mated condition
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -40°C to +85°C
Mating Cycle Durability: >100
Housing Material: Natural Polycarbonate
Seal Material: Silicone Rubber
Mating Part: AT04-2P* Receptacle
Wedge Part: AW2S-LED
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular
2 Position LED Overmold Plug, Socket, LED 12 V or 24 V, Clear Body, RVP Circuit, Reduced Diameter Seal, Green LED
