Heavy-Duty, Multi-Pin, 13A-25A, Thermoplastic Connectors

Available in 2, 3, 4, 6, 8, 12, 13 (Mixed), 15 (Mixed) and 18 position

Amphenol Sine Systems’ AT Series™ connectors are a high-performance, thermoplastic, cost-effective solution with superior environmental seals and seal retention capabilities with IP68 and IP69K ratings (in mated condition). The connector design incorporates an integrated latching system with over-sized detents that ensures a definitive electrical and mechanical connection. All of our AT Series™ connectors offer a wide range of end caps and strain relief options and have been developed to be comparable with all other existing standard products industry-wide. Available in BoardLock™, HYPERBUSS™, LED, PanelMate™ and StructurePlus™ options.

Features

IP68 and IP69K rated (in mated condition)
10-24AWG, 13A-25A, Size 12, 16 Contacts
Thermoplastic housing with integrated latch featuring over-sized detents for mating to ensure a secure connection.
Excellent UV resistence.
Best-in-Class wedgelocks ensure proper contact alignment & seal retention.
Integrated latch for mating ensures a secure connection.
Superior front and rear environmental seals and seal retention.
Comparable with existing standard products industry-wide.
Wide range of end caps and strain relief options.
Utilizes A Series™ Machined or Stamped and Formed Contacts

Applications: Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy, as well as other demanding interconnect applications

Assembly Instructions AT Series Assembly Instructions

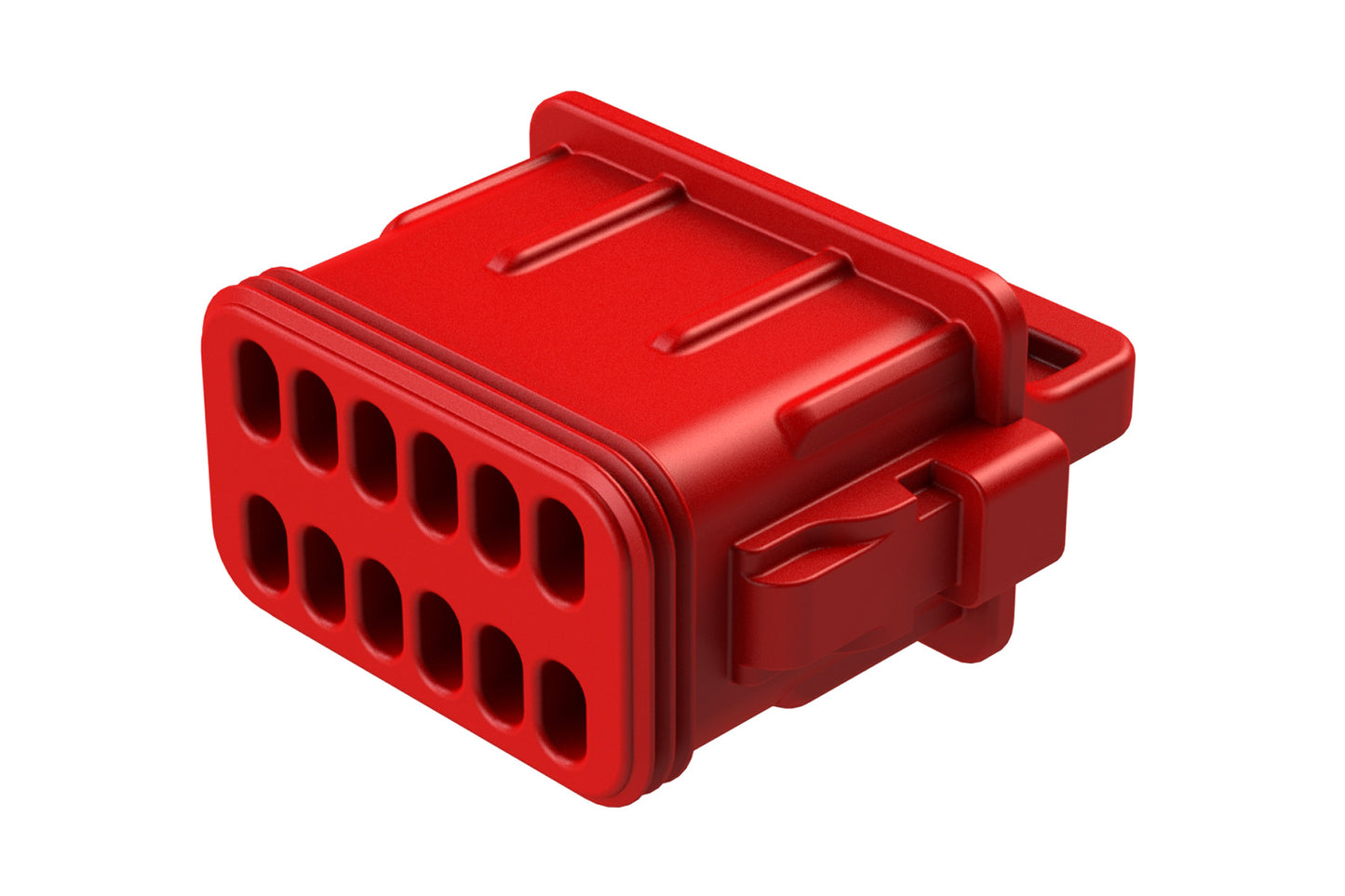

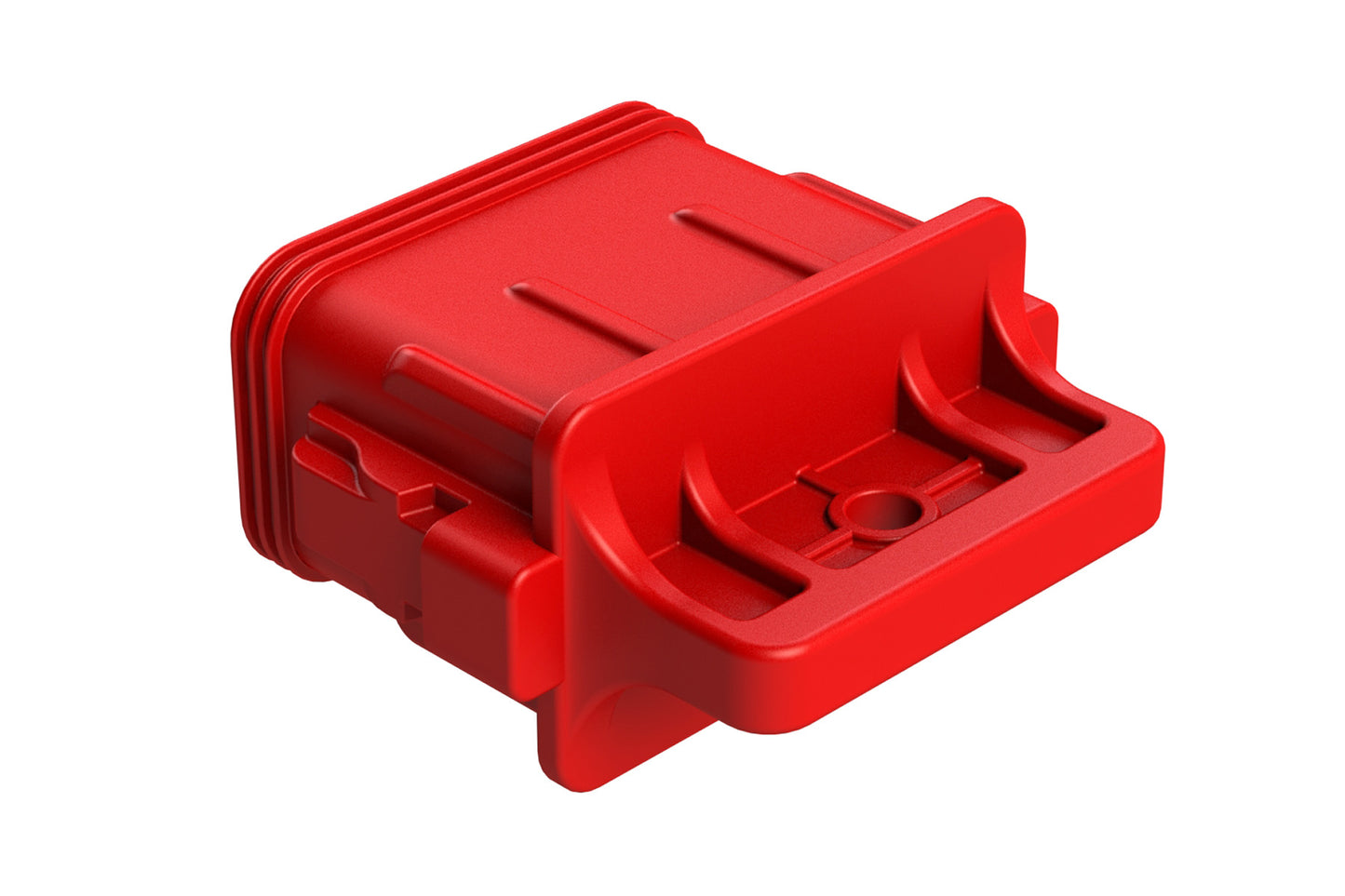

AT12P-RSC-RED Seal Cap for 12 Position Receptacle, Red

AT12P-RSC-RED Seal Cap for 12 Position Receptacle, Red
