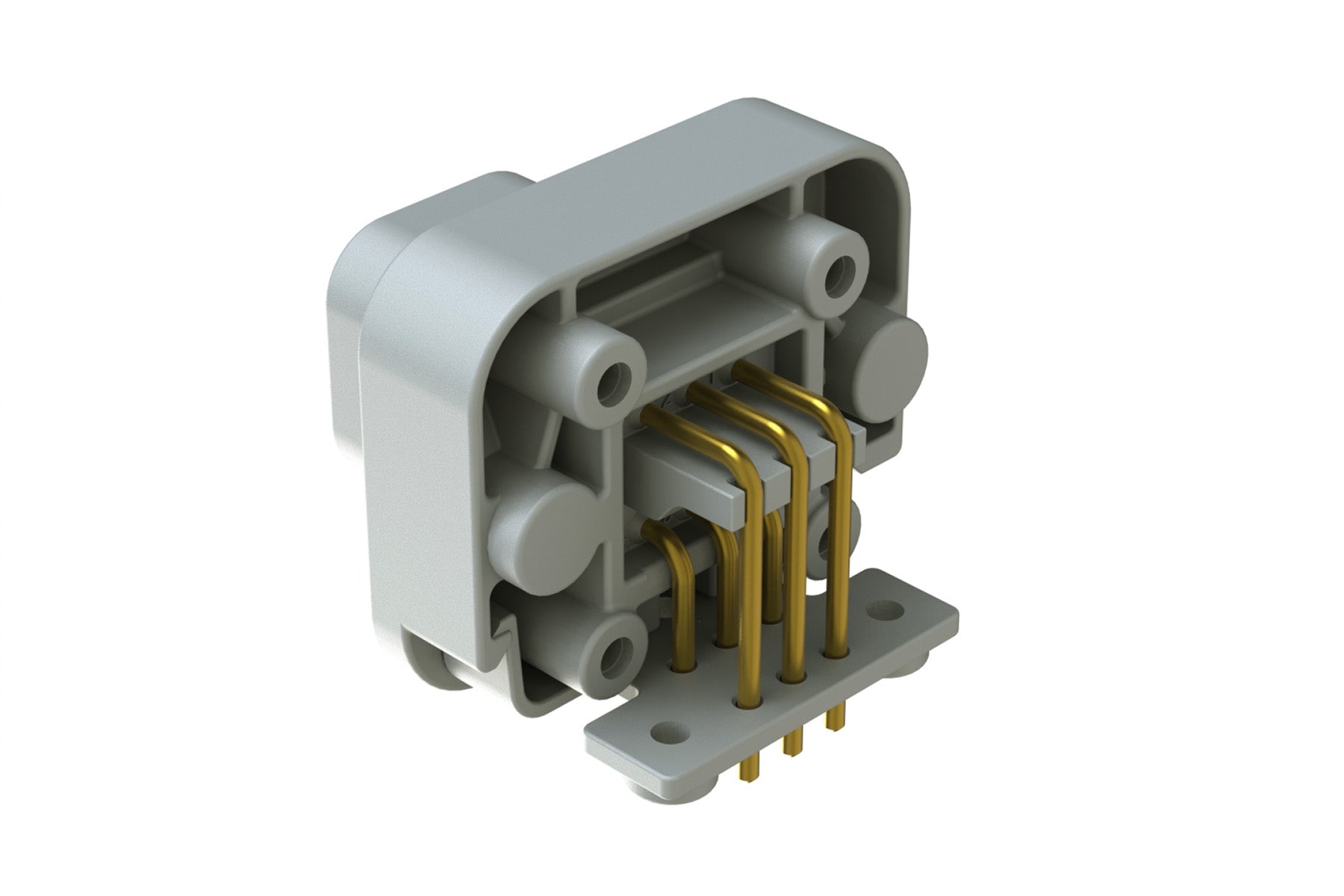

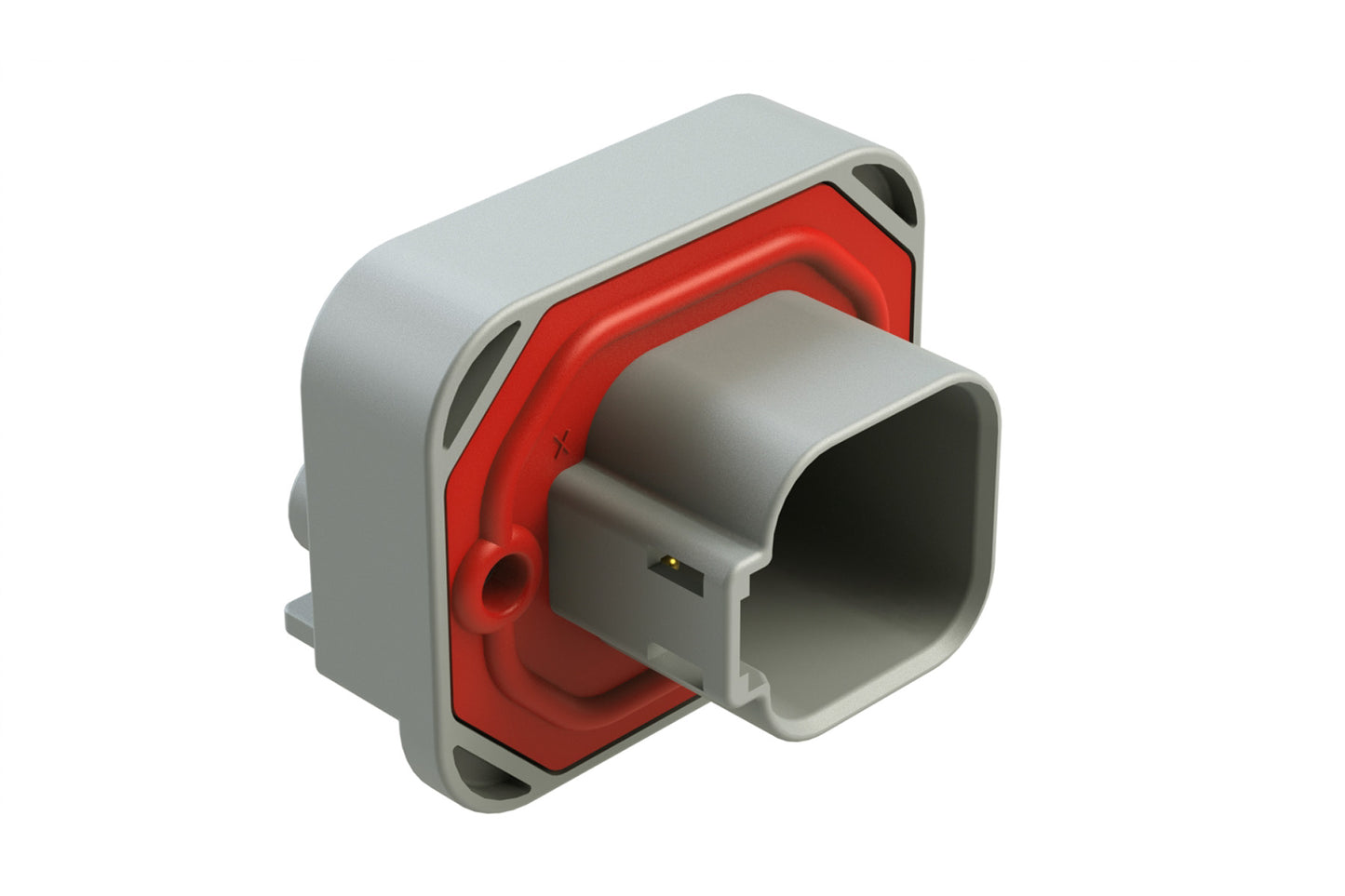

AT13-6P-BM01GRY 6 Position Right Angle Flange Mount PCB Receptacle, Grey, Gold Plated Contacts Included. DT13-6P-G003
AT13-6P-BM01GRY 6 Position Right Angle Flange Mount PCB Receptacle, Grey, Gold Plated Contacts Included. DT13-6P-G003
IMAGE MAY DIFFER
SKU:AT13-6P-BM01GRY
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 6Gender: Male
Contact Size: 16
Contact Material: Copper Alloy
Colour: Grey
IP Rating: IP67 (mated condition)
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: 100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-6S* PLUG
Wire Range: 14-20 AWG
Shape: Rectangular
6 Position Right Angle Flange Mount PCB Receptacle, Grey, Gold Plated Contacts Included
