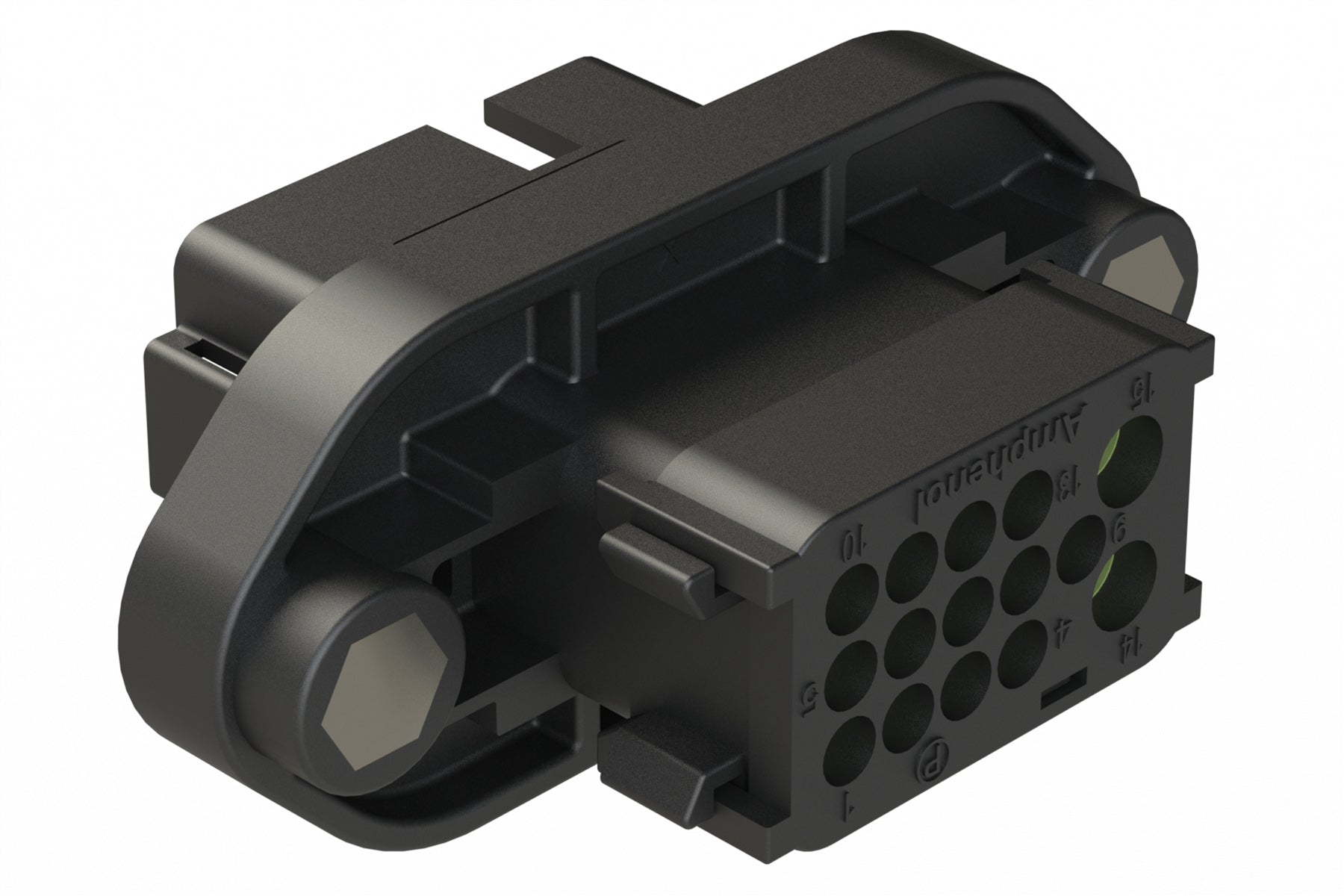

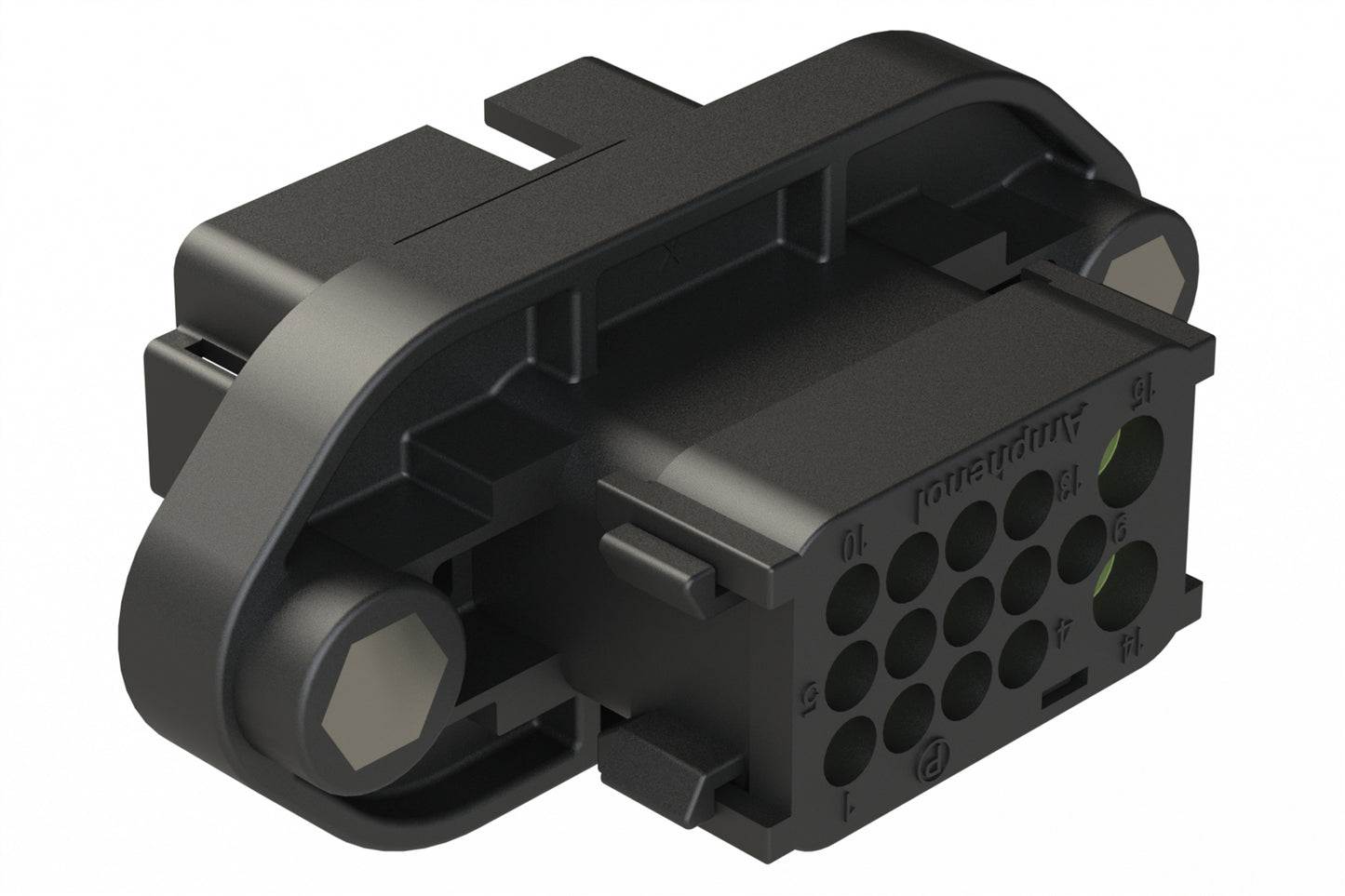

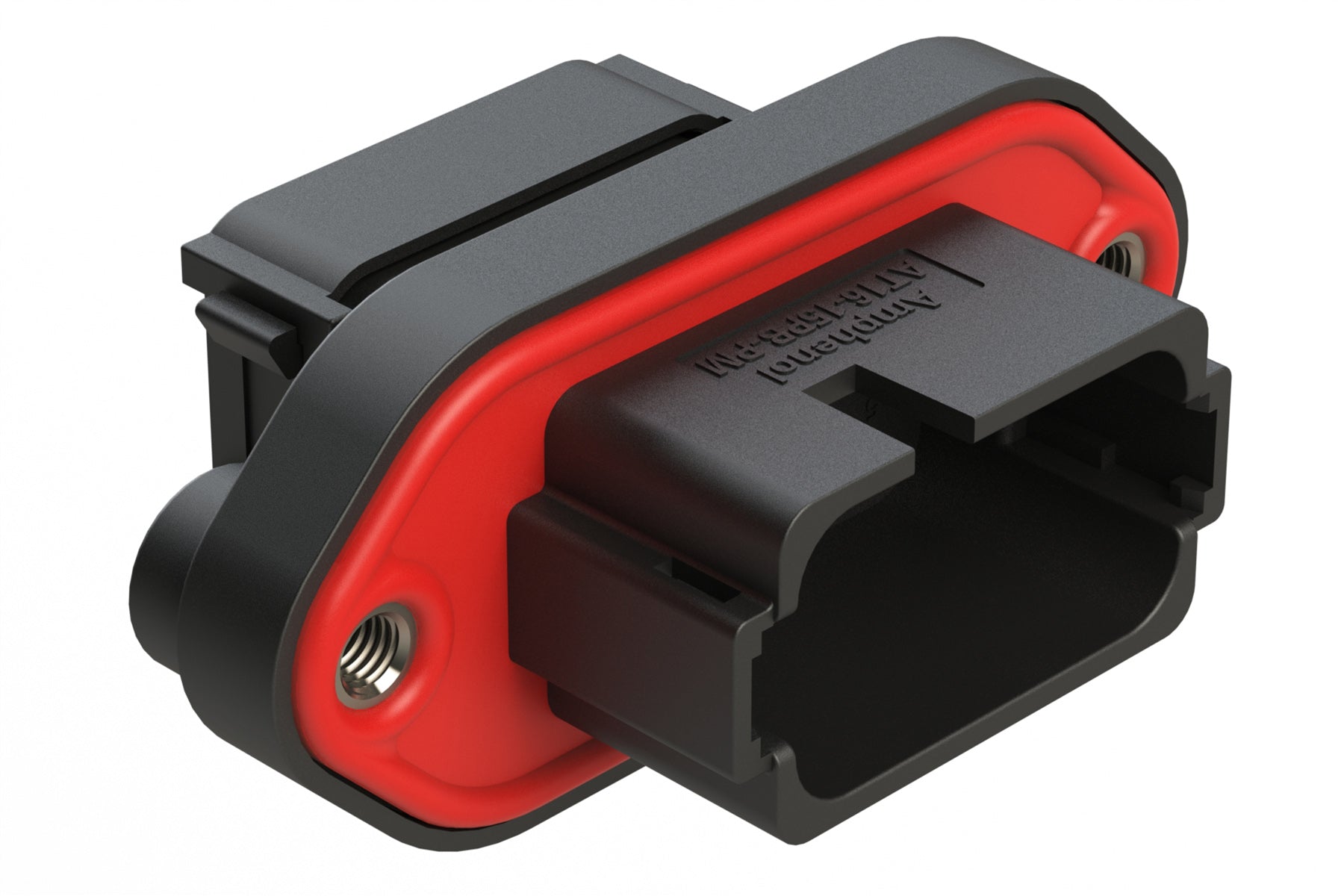

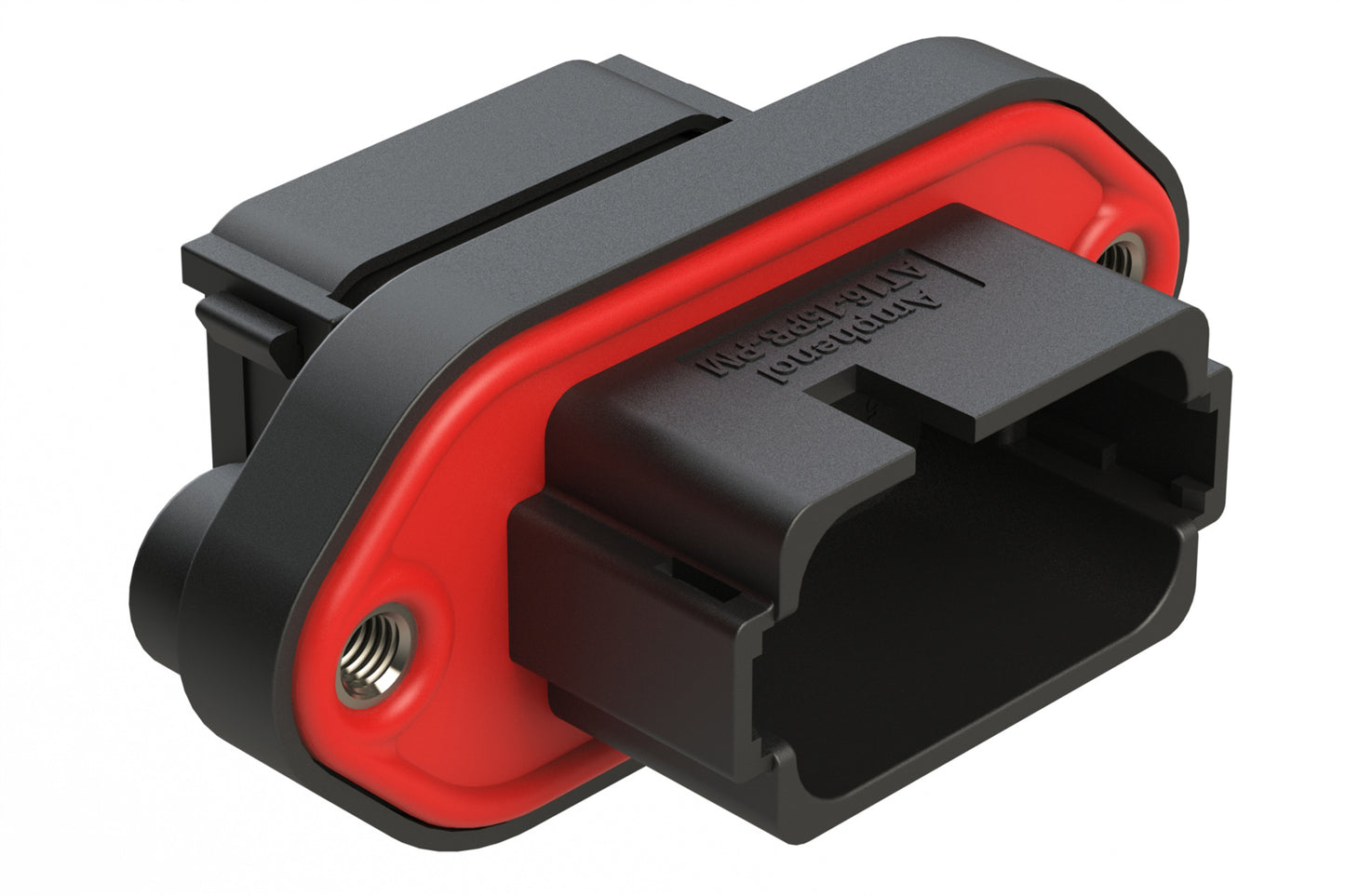

AT16-15PB-PM11 15 Position Panel Mount Receptacle with Flange and End Cap, Pin, Keyed B, Reduced Diameter Seal, Black
AT16-15PB-PM11 15 Position Panel Mount Receptacle with Flange and End Cap, Pin, Keyed B, Reduced Diameter Seal, Black
IMAGE MAY DIFFER
SKU:AT16-15PB-PM11
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 15Gender: Male
Contact Size: 12,16
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 Hours, in mated condition), IP69K (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: 100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT16-15SB* Plugs
Seal Diameter: 2.46mm (.097 in) - 4.01mm(.158 in)
Wire Range: 12-14 AWG, 14-22 AWG
Shape: Rectangular
15 Position Panel Mount Receptacle with Flange and End Cap, Pin, Keyed B, Reduced Diameter Seal, Black
