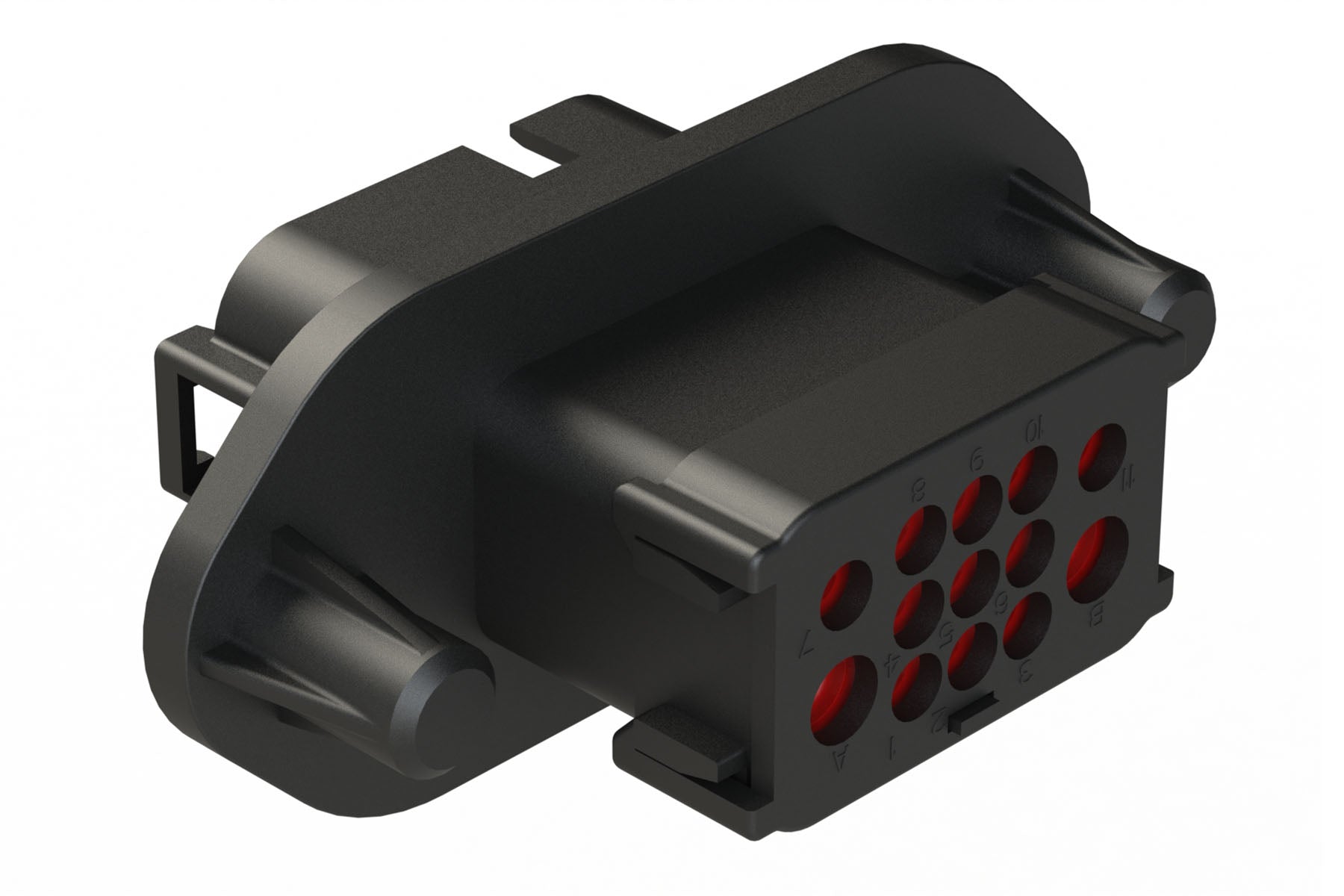

AT1612-13PB-G 13-Way Receptacle, Pin, Panel Mount, Self-Threading, Standard Seal, Cap, Keyed B. (Wedgelock not required)
AT1612-13PB-G 13-Way Receptacle, Pin, Panel Mount, Self-Threading, Standard Seal, Cap, Keyed B. (Wedgelock not required)
IMAGE MAY DIFFER
SKU:AT1612-13PB-G
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 13Gender: Male
Contact Size: 12,16
Contact Material: Copper Alloy
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT1612-13SB* PLUG
Wedge Part: Wedgelock not required
Seal Diameter: 2.24mm (.088") -3.68mm (.145"), 3.40mm (.134") - 4.95mm(.195")
Wire Range: 12-14 AWG / 14-20 AWG
Shape: Rectangular
13-Way Receptacle, Pin, Panel Mount, Self-Threading, Standard Seal, Cap, Keyed B. (Wedgelock not required)
