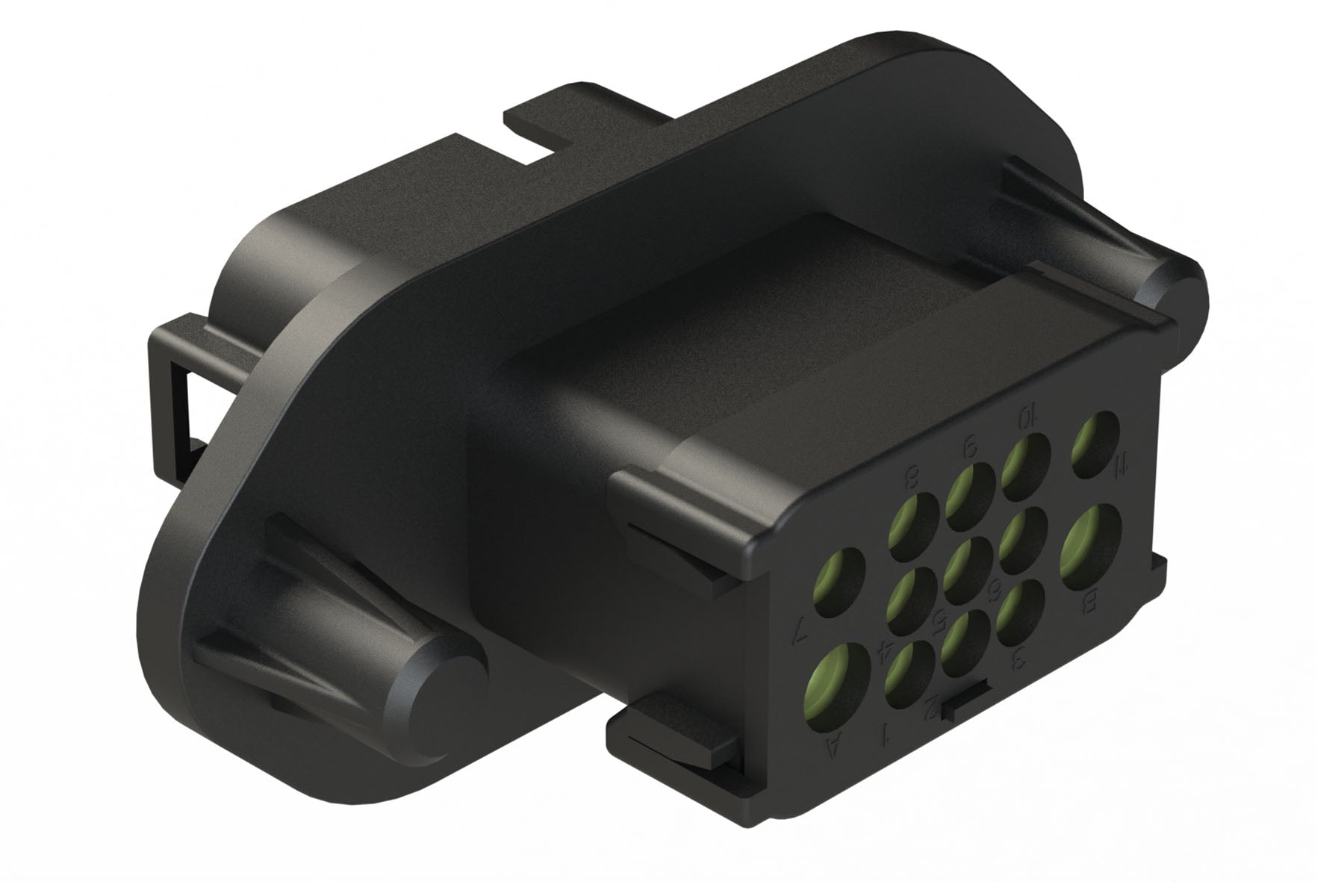

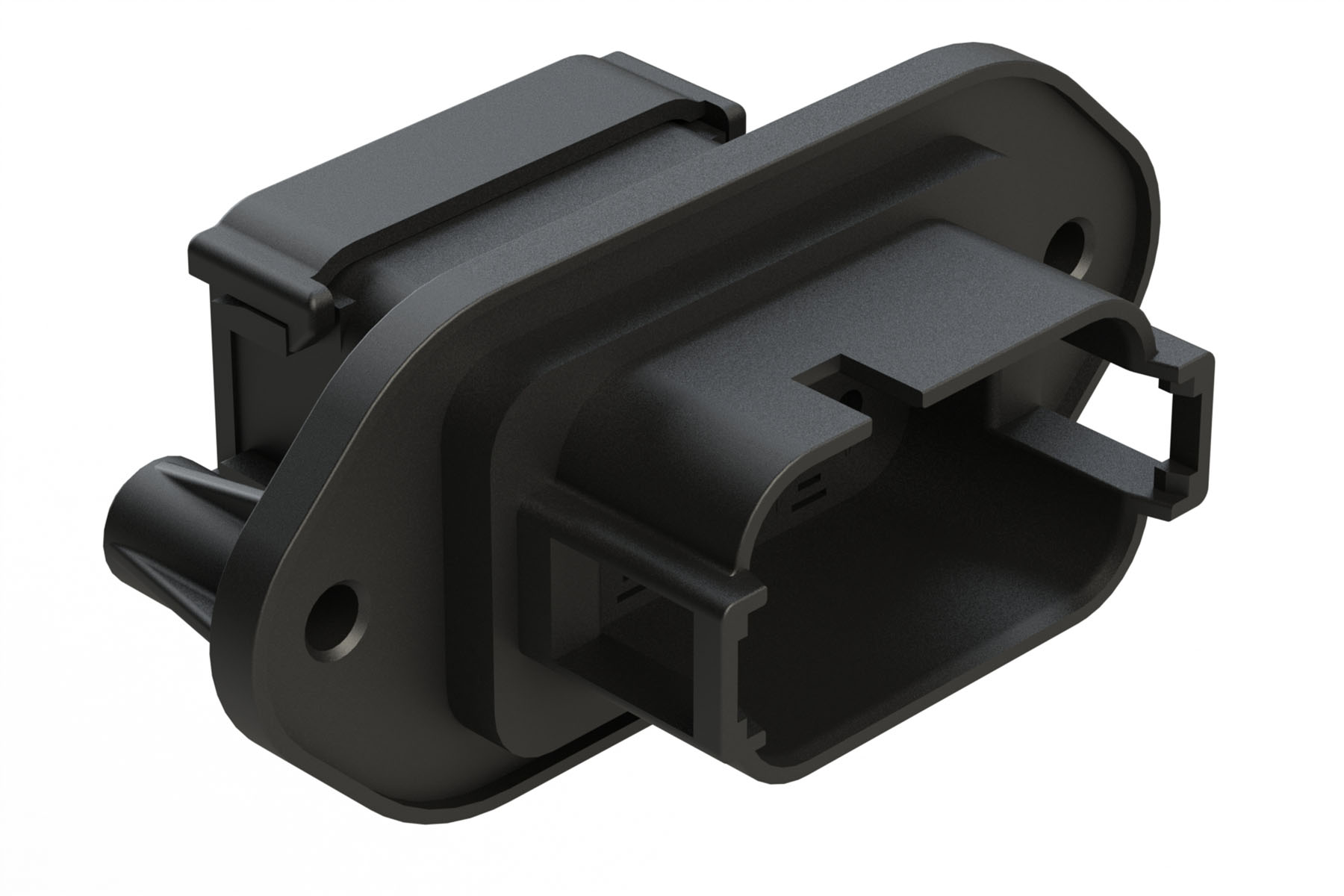

AT1612-13PB-RD 13-Way Panel Mount Receptacle, Key Position B Reduced Seal, No Gasket. (Wedgelock not required)
AT1612-13PB-RD 13-Way Panel Mount Receptacle, Key Position B Reduced Seal, No Gasket. (Wedgelock not required)
IMAGE MAY DIFFER
SKU:AT1612-13PB-RD
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 13Gender: Male
Contact Size: 12,16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT1612-13SB* PLUG
Wedge Part: Wedgelock not required
Seal Diameter: 1.35mm (.053") - 3.05 mm (.120"), 2.46mm (.097") - 4.01mm(.158")
Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Rectangular
13-Way Panel Mount Receptacle, Key Position B Reduced Seal, No Gasket. (Wedgelock not required)
