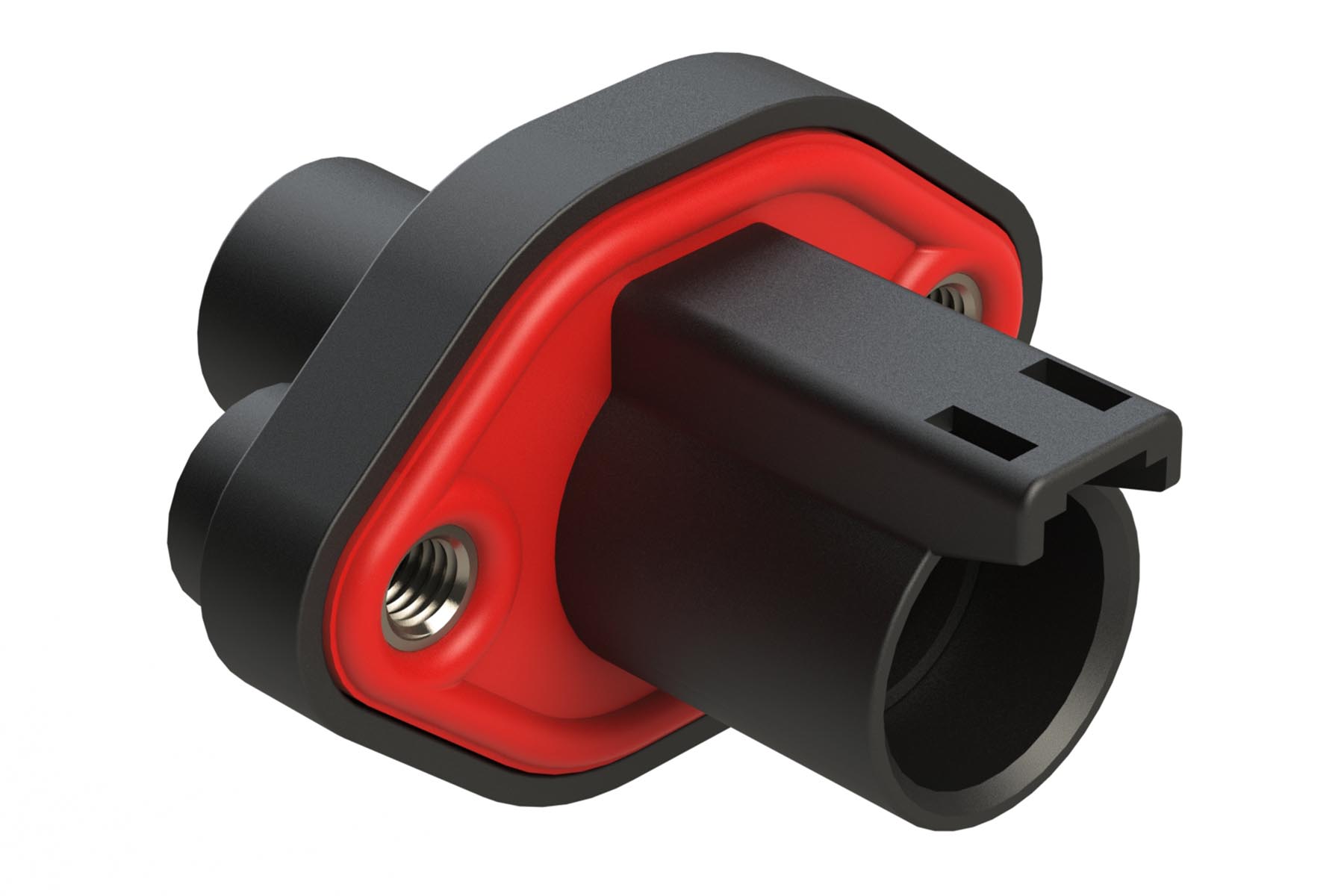

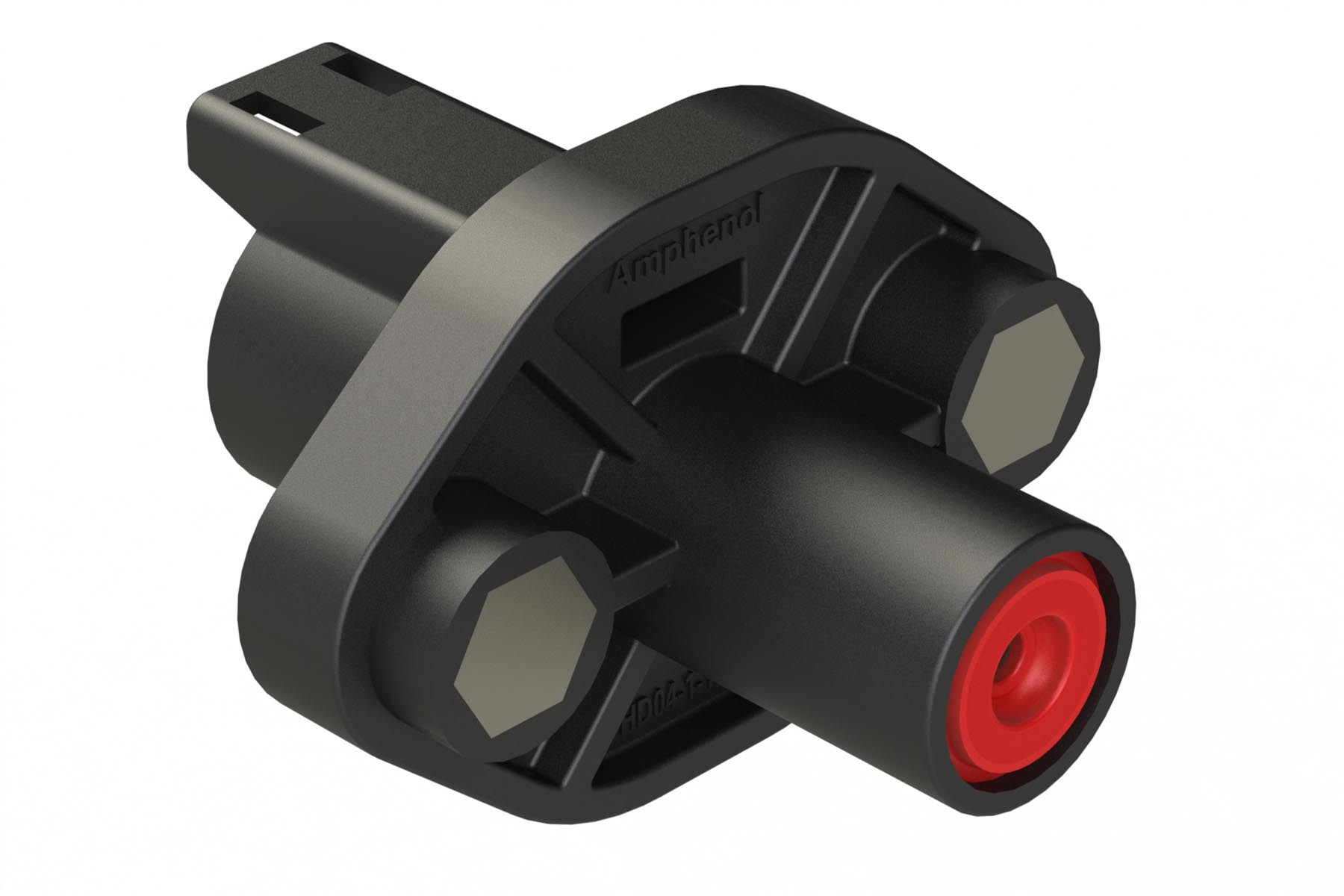

ATHD04-1-12P-PM05 Single Pole, Receptacle, Pin, Size 12, Flange Mount, Threaded Insert, Black
ATHD04-1-12P-PM05 Single Pole, Receptacle, Pin, Size 12, Flange Mount, Threaded Insert, Black
IMAGE MAY DIFFER
SKU:ATHD04-1-12P-PM05
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 1Gender: Male
Contact Size: 12
Colour: Black
IP Rating: IP68(IM of water for a period of 24 hours, mated condition); IP69K (mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATHD06-1-12S* Plug
Seal Diameter: 3.40mm (.134") - 4.32mm (.170mm)
Wire Range: 10-14 AWG
Shape: Circular
Single Pole, Receptacle, Pin, Size 12, Flange Mount, Threaded Insert, Black
