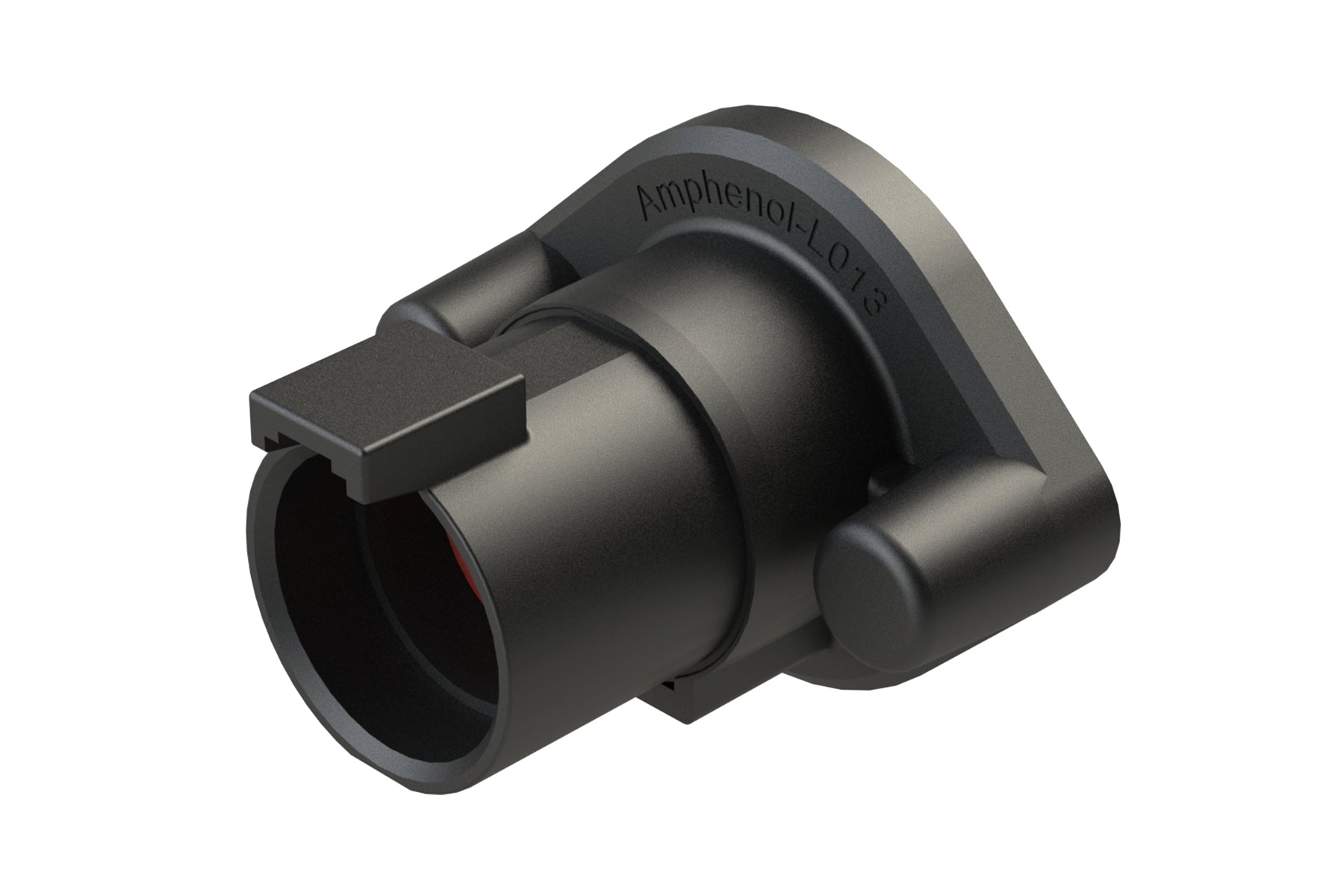

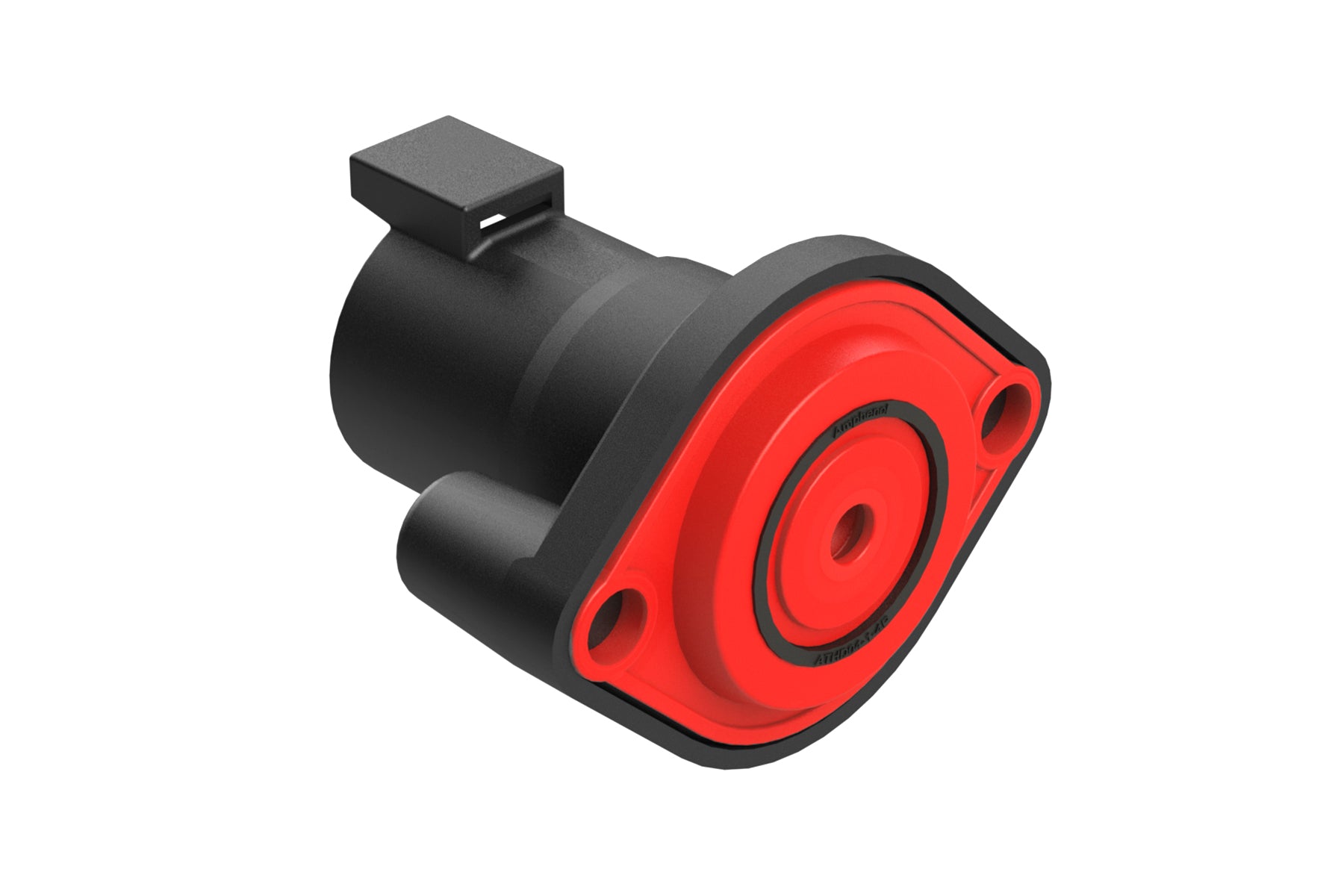

ATHD04-1-4P-L013 1 Position Receptacle, Flush Flange Mount 100A / 1000V, Pin, environmentally sealed. DTHD04-1-4P-L013
ATHD04-1-4P-L013 1 Position Receptacle, Flush Flange Mount 100A / 1000V, Pin, environmentally sealed. DTHD04-1-4P-L013
IMAGE MAY DIFFER
SKU:ATHD04-1-4P-L013
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 1Gender: Male
Contact Size: 4
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATHD06-1-4S* Plug
Seal Diameter: 6.63mm (.261") - 10.67mm (.420")
Wire Range: 4-6 AWG
Shape: Circular
1 Position Receptacle, Flush Flange Mount 100A / 1000V, Pin, environmentally sealed
