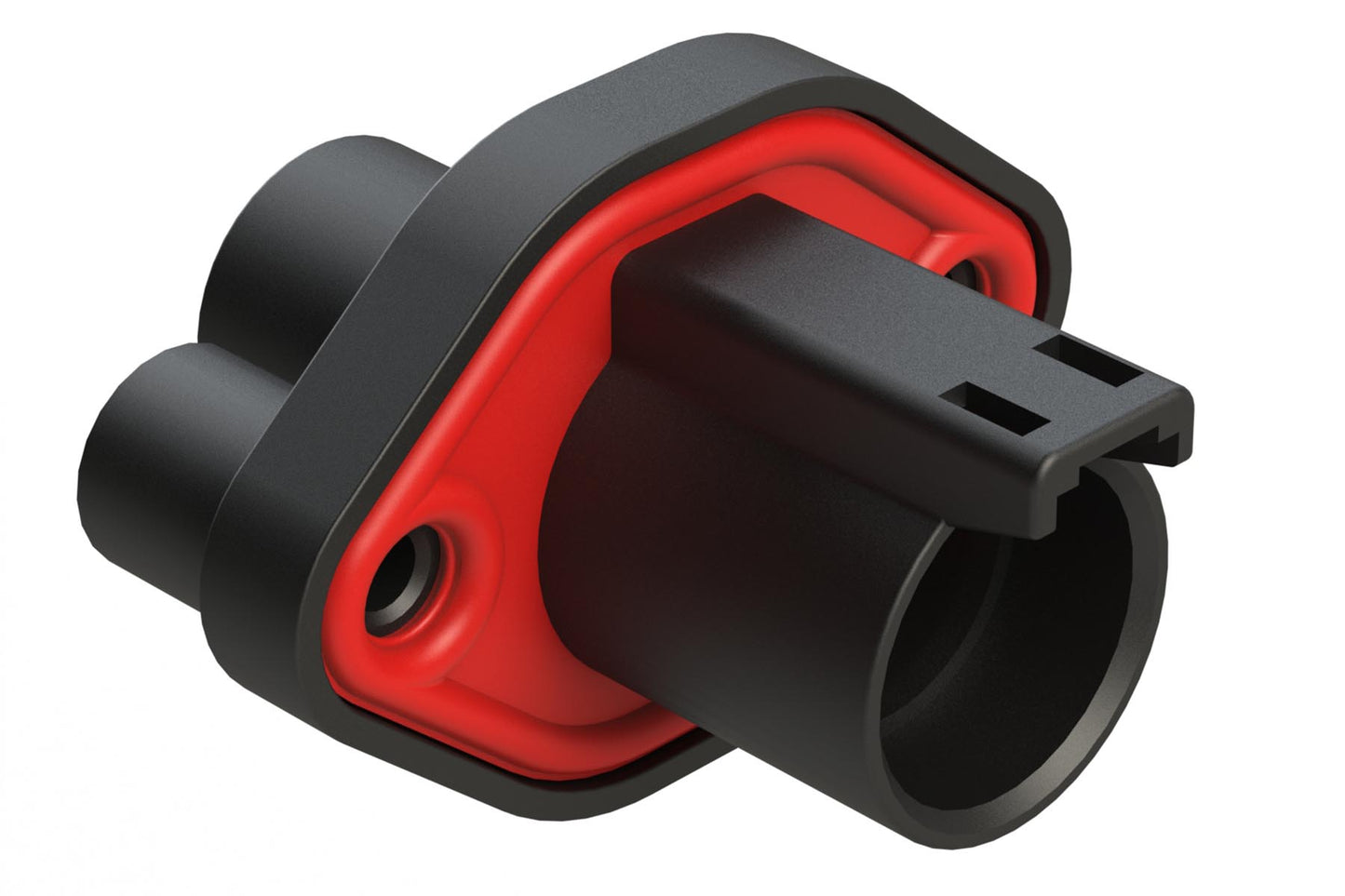

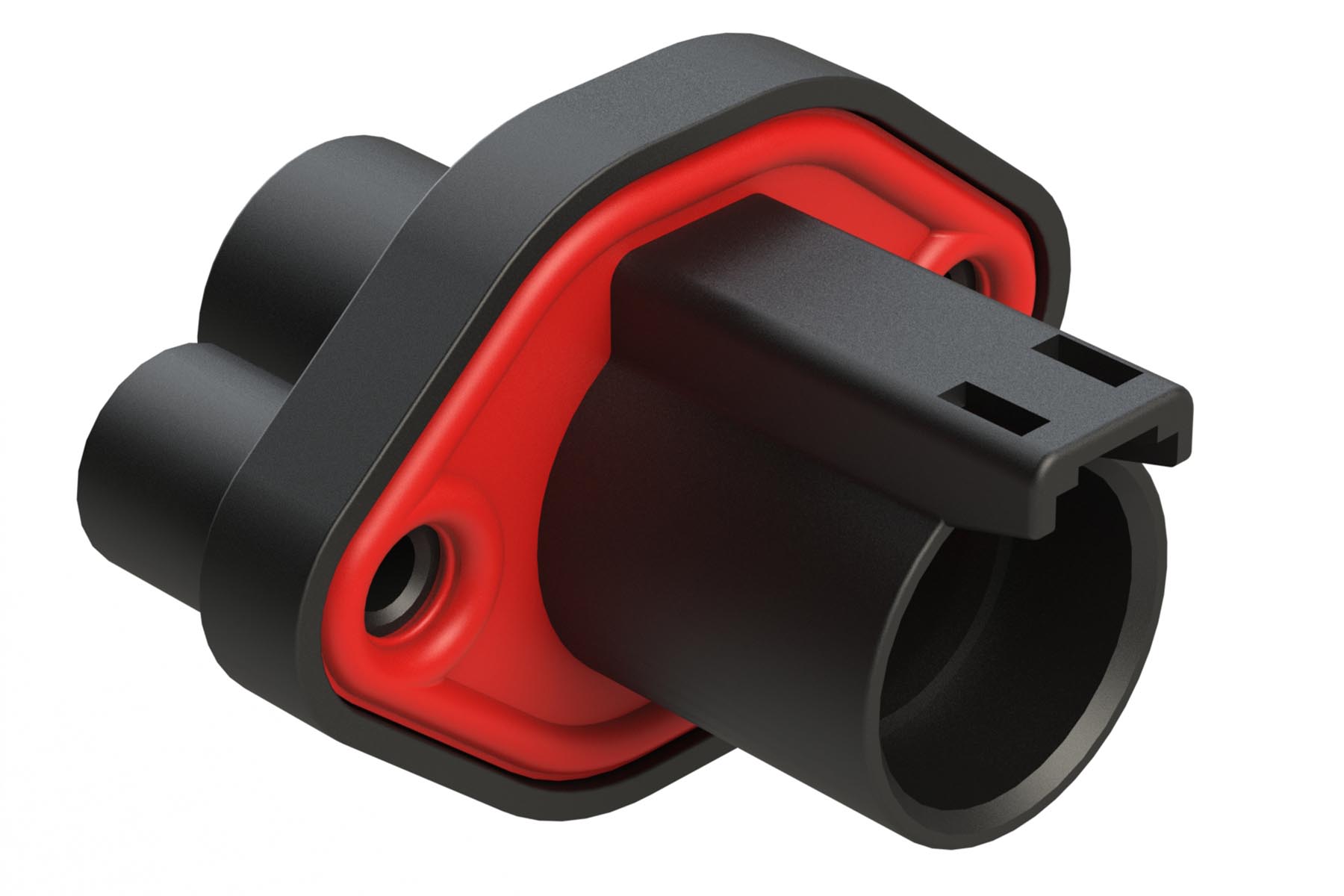

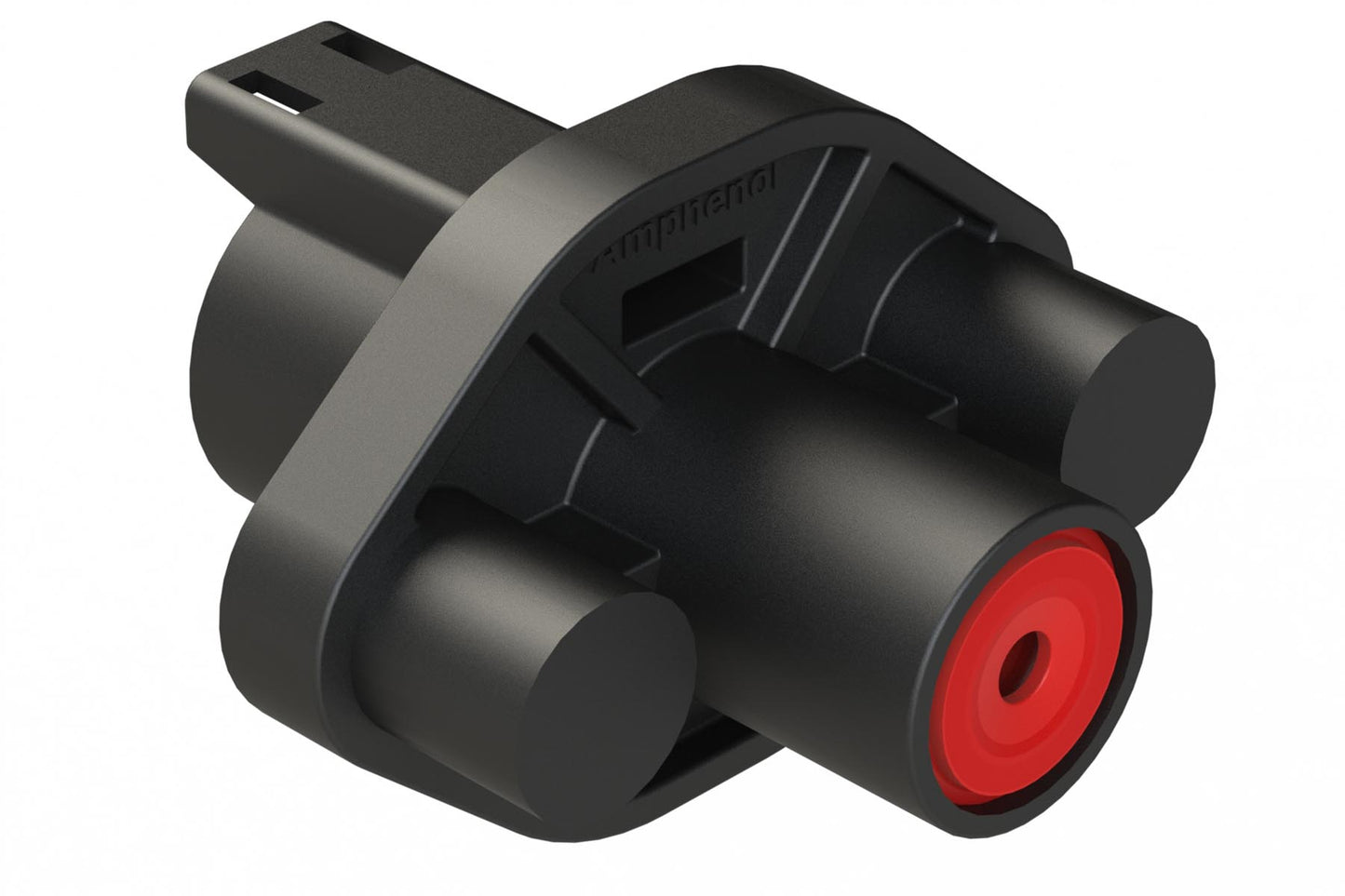

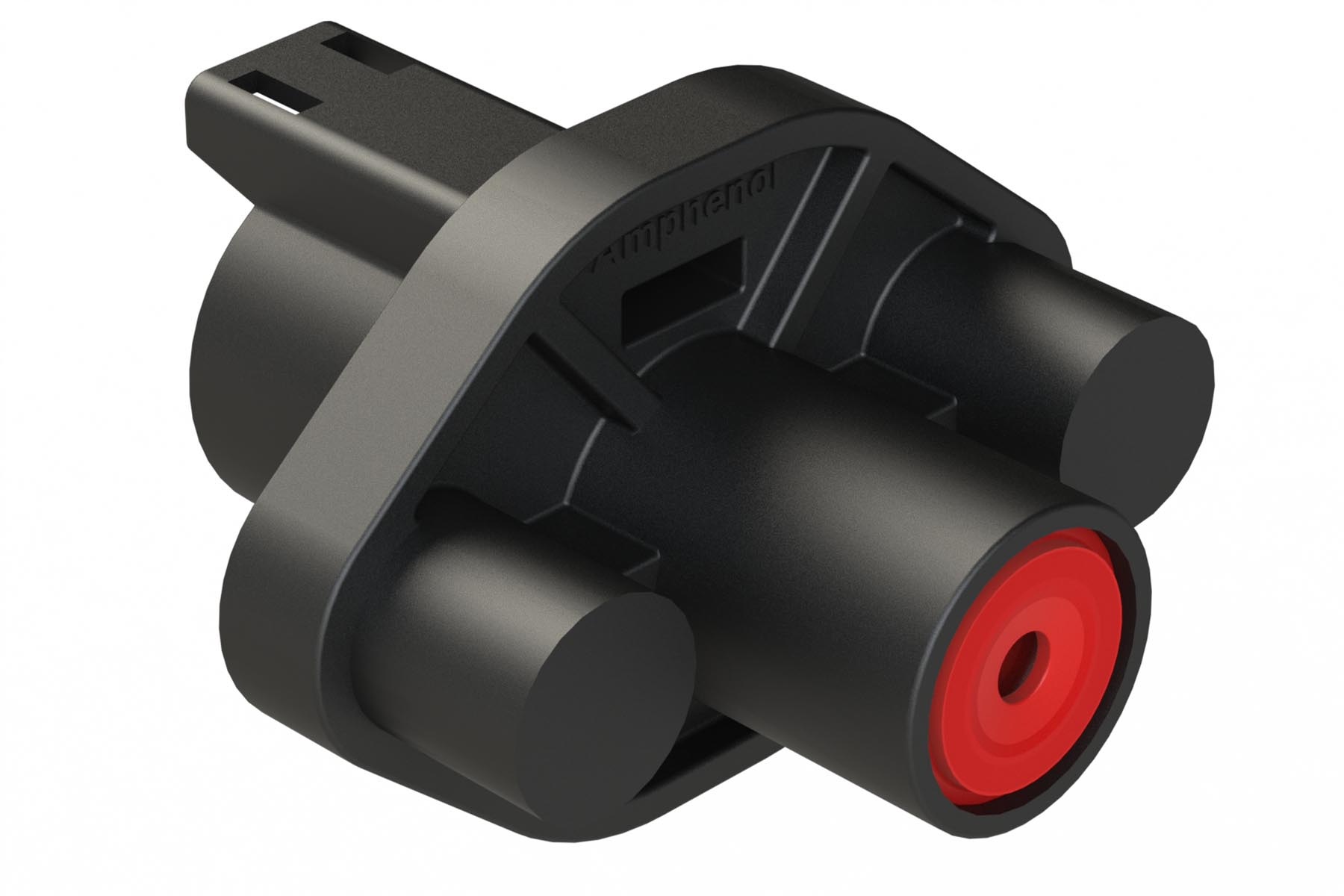

ATHD04-1-8P-PM11 Single Pole, Receptacle, Pin, Size 8, Flange Mount, Self Threading, Black
ATHD04-1-8P-PM11 Single Pole, Receptacle, Pin, Size 8, Flange Mount, Self Threading, Black
IMAGE MAY DIFFER
SKU:ATHD04-1-8P-PM11
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 1Gender: Male
Contact Size: 8
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATHD06-1-8S* Plug
Seal Diameter: 4.83mm (.190") - 6.09mm (.240")
Wire Range: 8-10 AWG
Shape: Circular
Single Pole, Receptacle, Pin, Size 8, Flange Mount, Self Threading, Black
