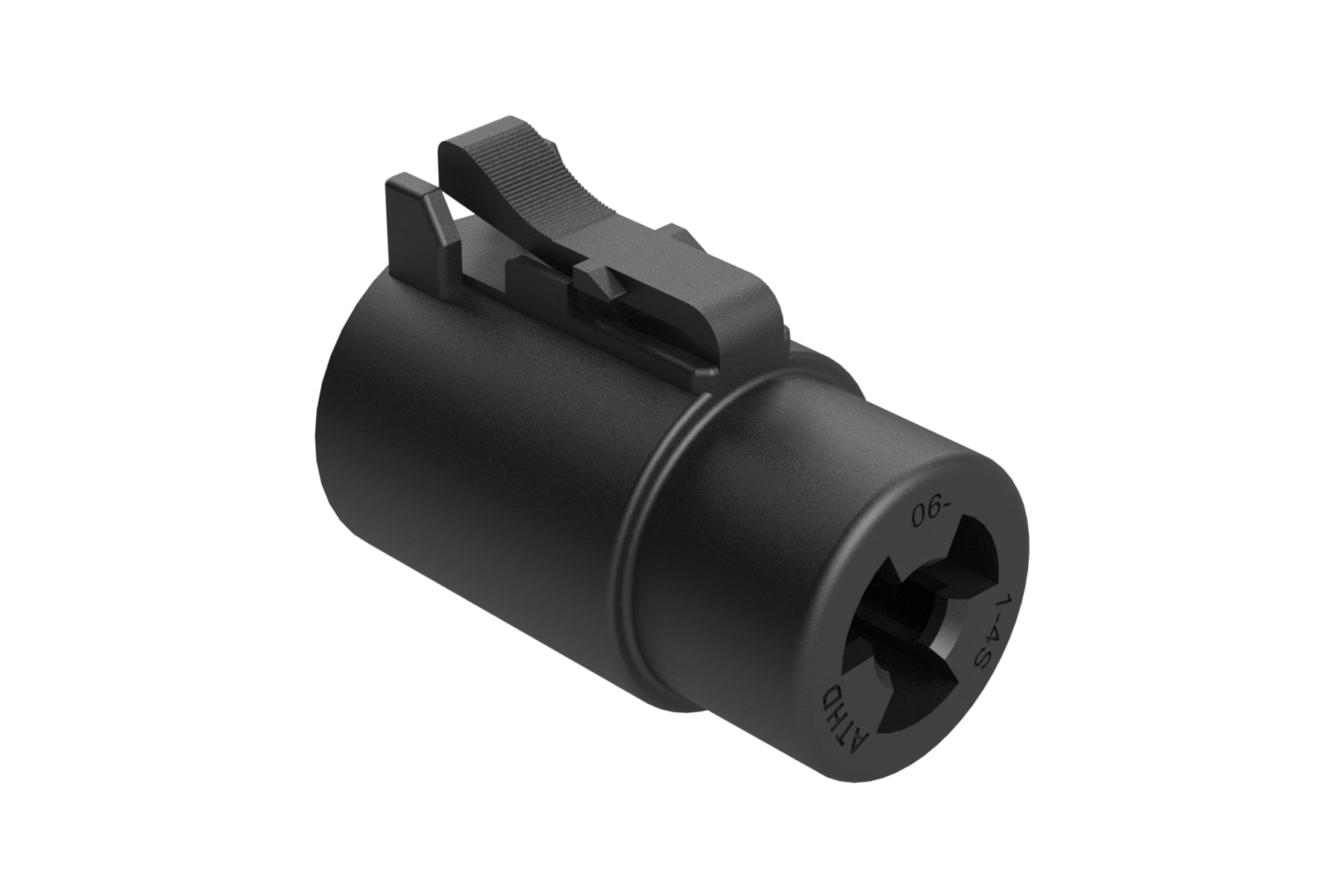

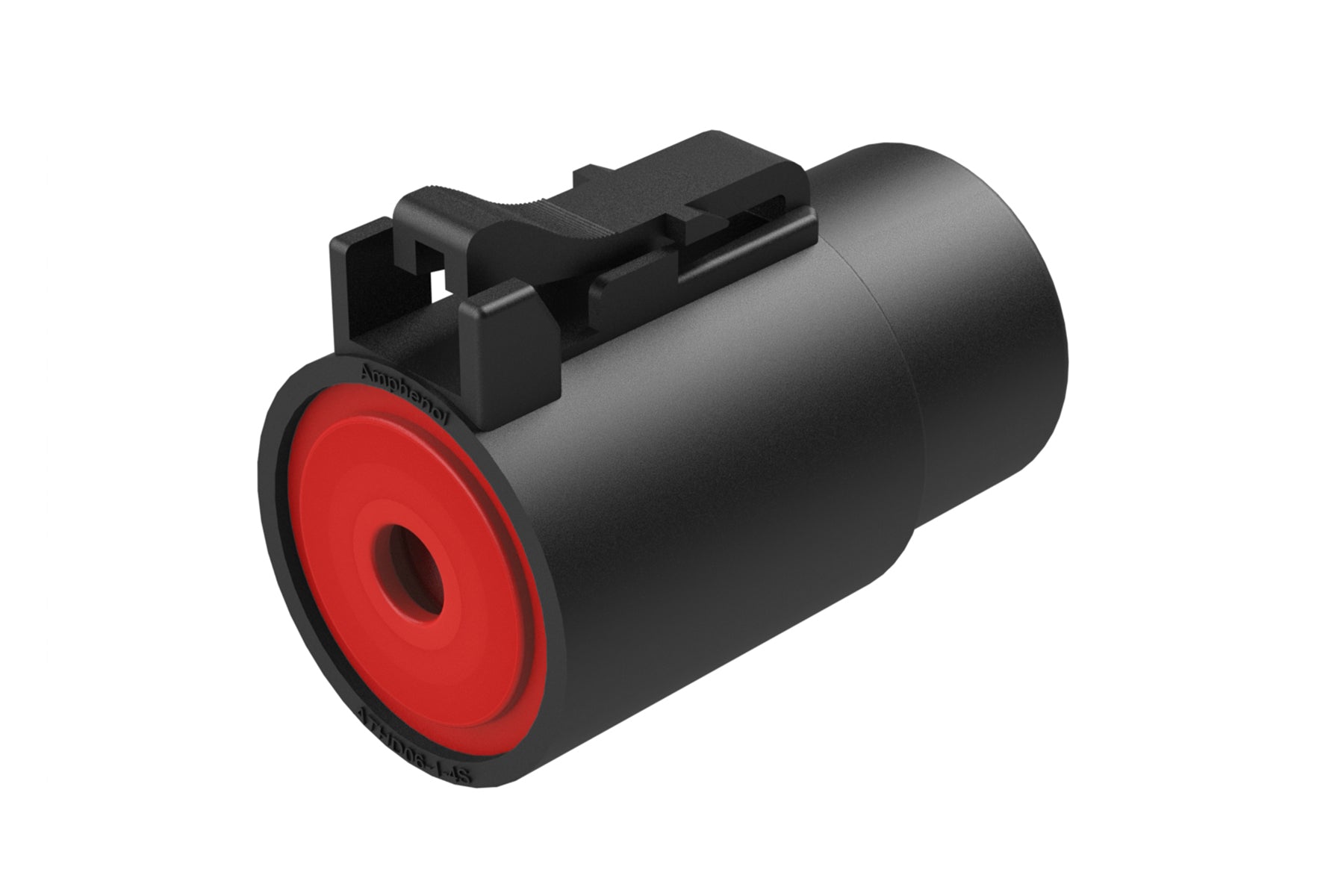

ATHD06-1-4S 1 Position Plug, 100A / 1000V, Socket, environmentally sealed. DTHD06-1-4S
ATHD06-1-4S 1 Position Plug, 100A / 1000V, Socket, environmentally sealed. DTHD06-1-4S
IMAGE MAY DIFFER
SKU:ATHD06-1-4S
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 1Gender: Female
Contact Size: 4
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATHD04-1-4P* Receptacle
Seal Diameter: 7.1mm - 7.4mm
Wire Range: 6 AWG (16-13mm²)
Shape: Circular
1 Position Plug, 100A / 1000V, Socket, environmentally sealed
