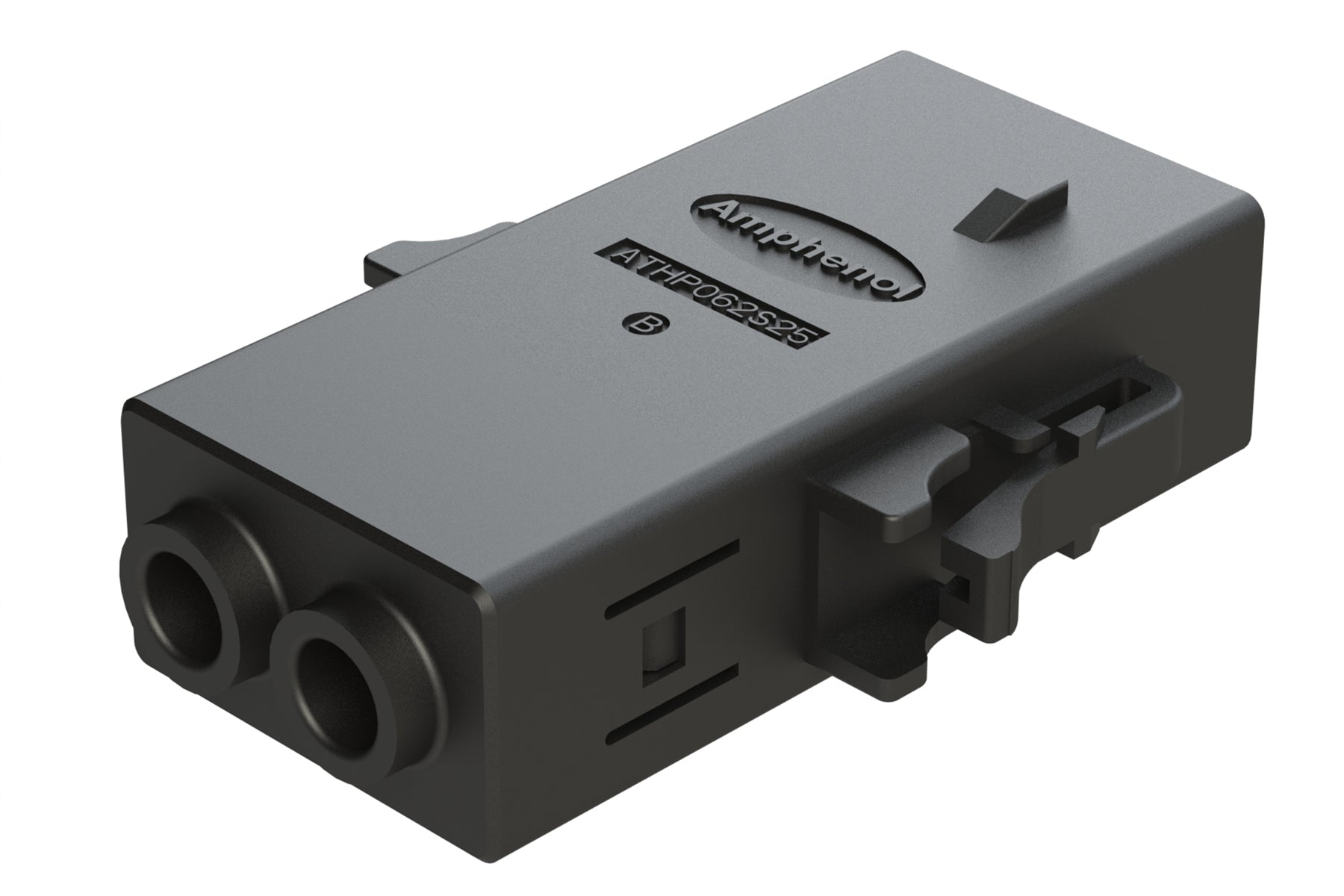

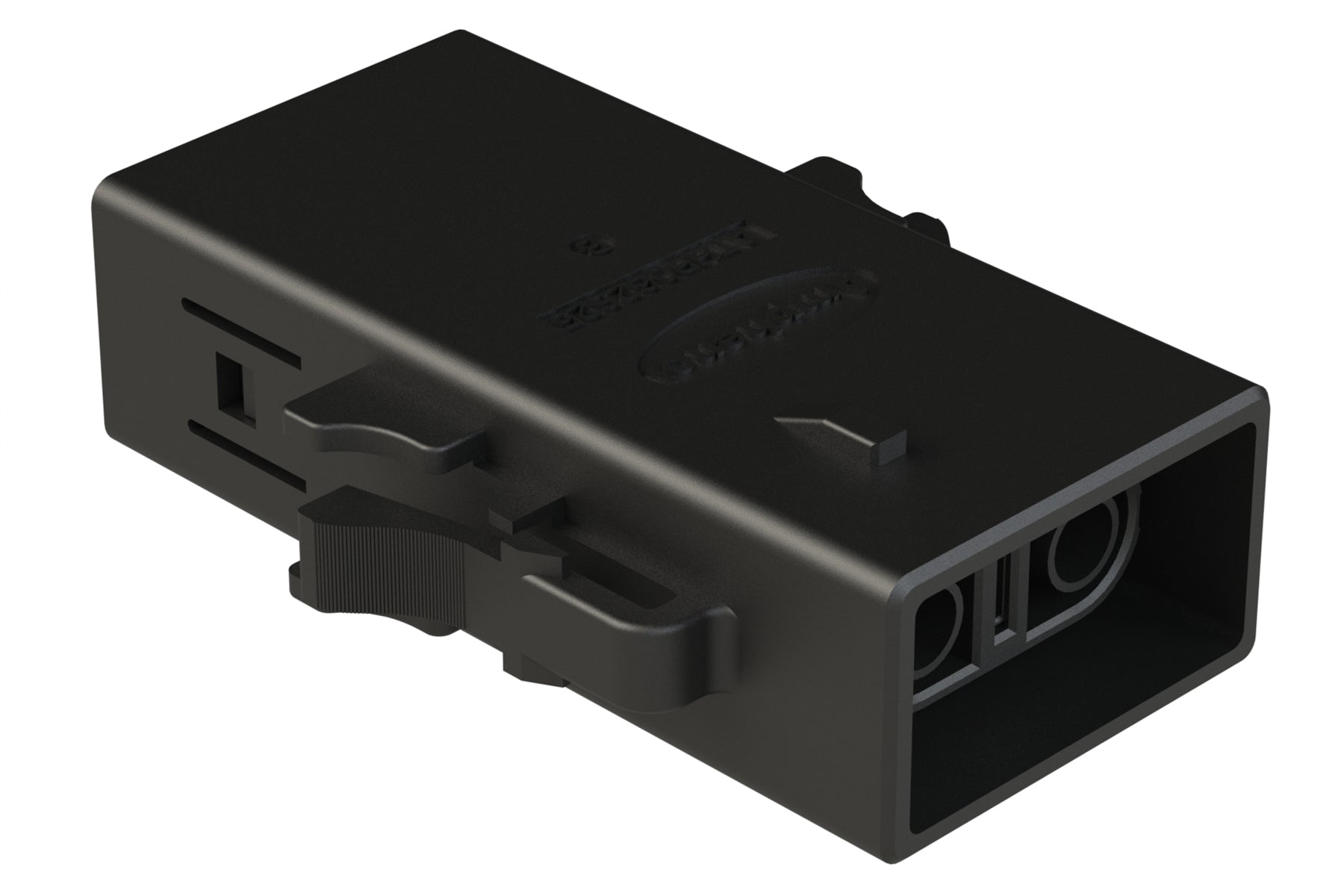

ATHP062S25ELB-S2-BLK 2 Position EMC Plug with High Voltage Interlock Loop, B Key, 4.8-5.8mm Cable Range, Black. Contacts ordered separately.
ATHP062S25ELB-S2-BLK 2 Position EMC Plug with High Voltage Interlock Loop, B Key, 4.8-5.8mm Cable Range, Black. Contacts ordered separately.
IMAGE MAY DIFFER
SKU:ATHP062S25ELB-S2-BLK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 2Gender: Female
Contact Size: 2.5mm
Contact Material: (Power) Copper Alloy, Silver Plated
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 500 MEGOHMS MIN @25-40°C TO +130°C
Operating Temperature: -40°C to +130°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATHP042P25ELB
Wire Range: 6mm²,4mm²,2.5mm²
Shape: Rectangular
2 Position EMC Plug with High Voltage Interlock Loop, B Key, 4.8-5.8mm Cable Range, Black. Contacts ordered separately.
