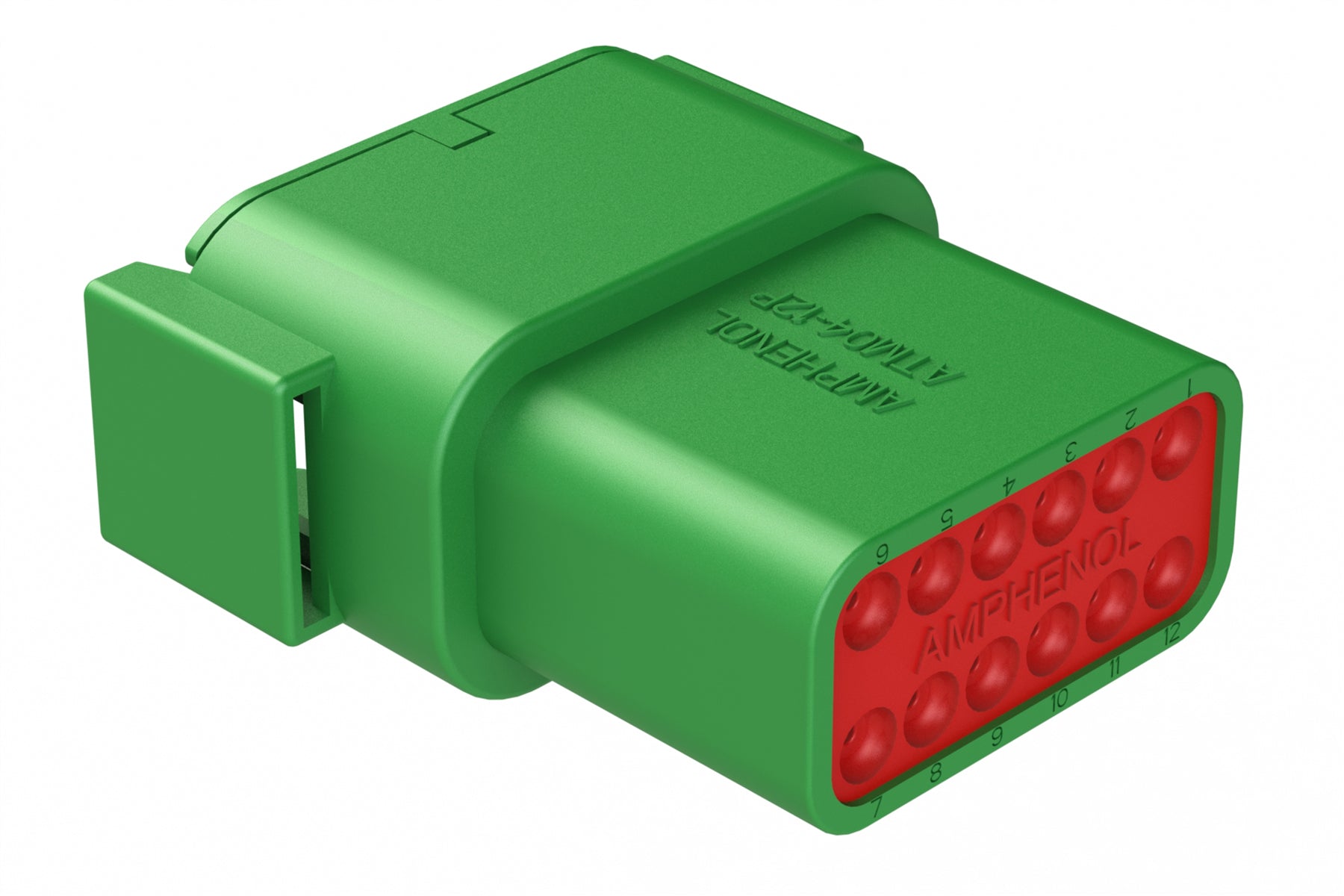

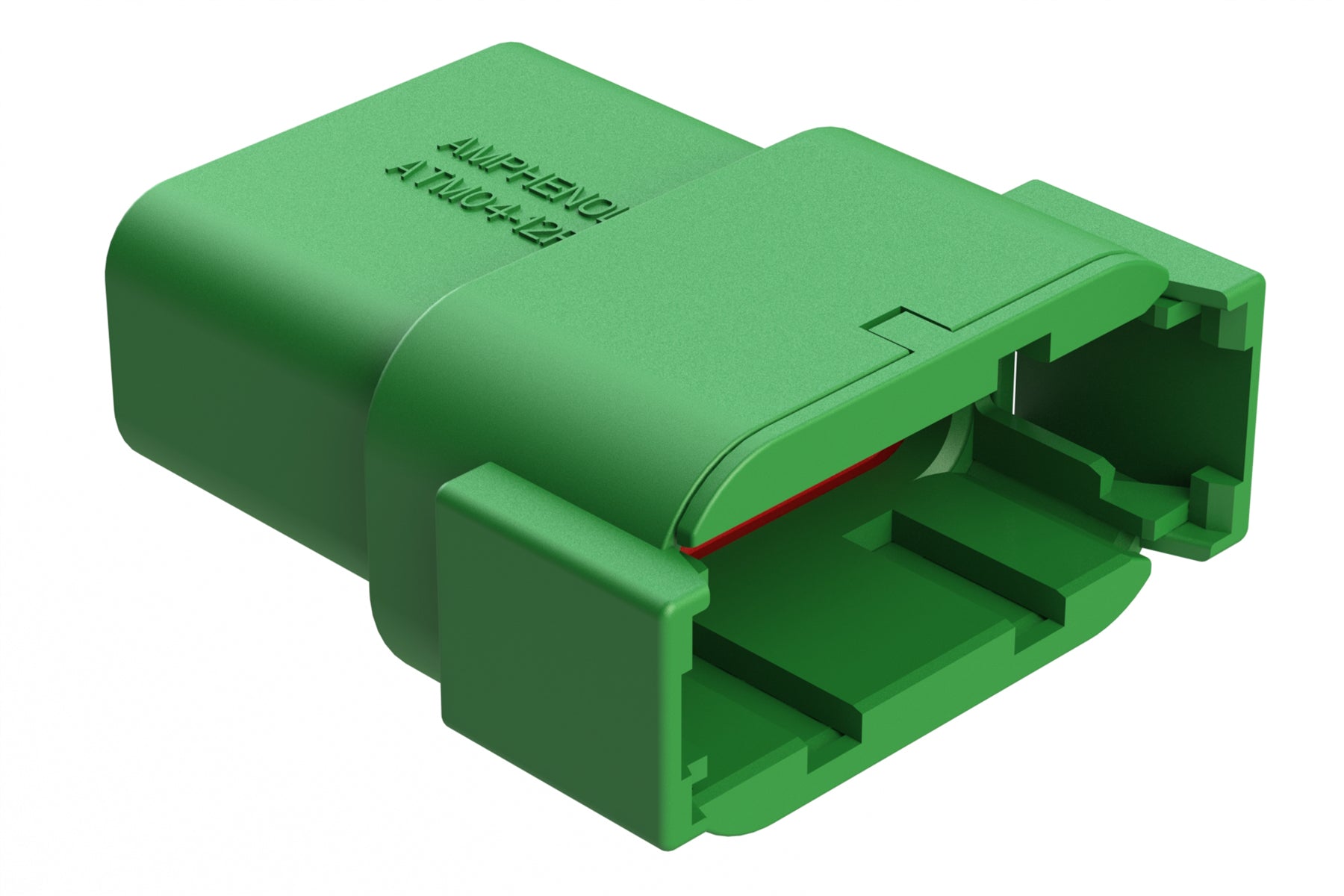

ATM04-12PC 12-Way Receptacle, Male Connector with C Position Key. DTM04-12PC
ATM04-12PC 12-Way Receptacle, Male Connector with C Position Key. DTM04-12PC
IMAGE MAY DIFFER
SKU:ATM04-12PC
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 12 C Position KeyGender: Male
Contact Size: 20
Colour: Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: ATM06-12SC* Plug
Wedge Part: AWM-12S
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 16-22 AWG
Shape: Rectangular
12-Way Receptacle, Male Connector with C Position Key
