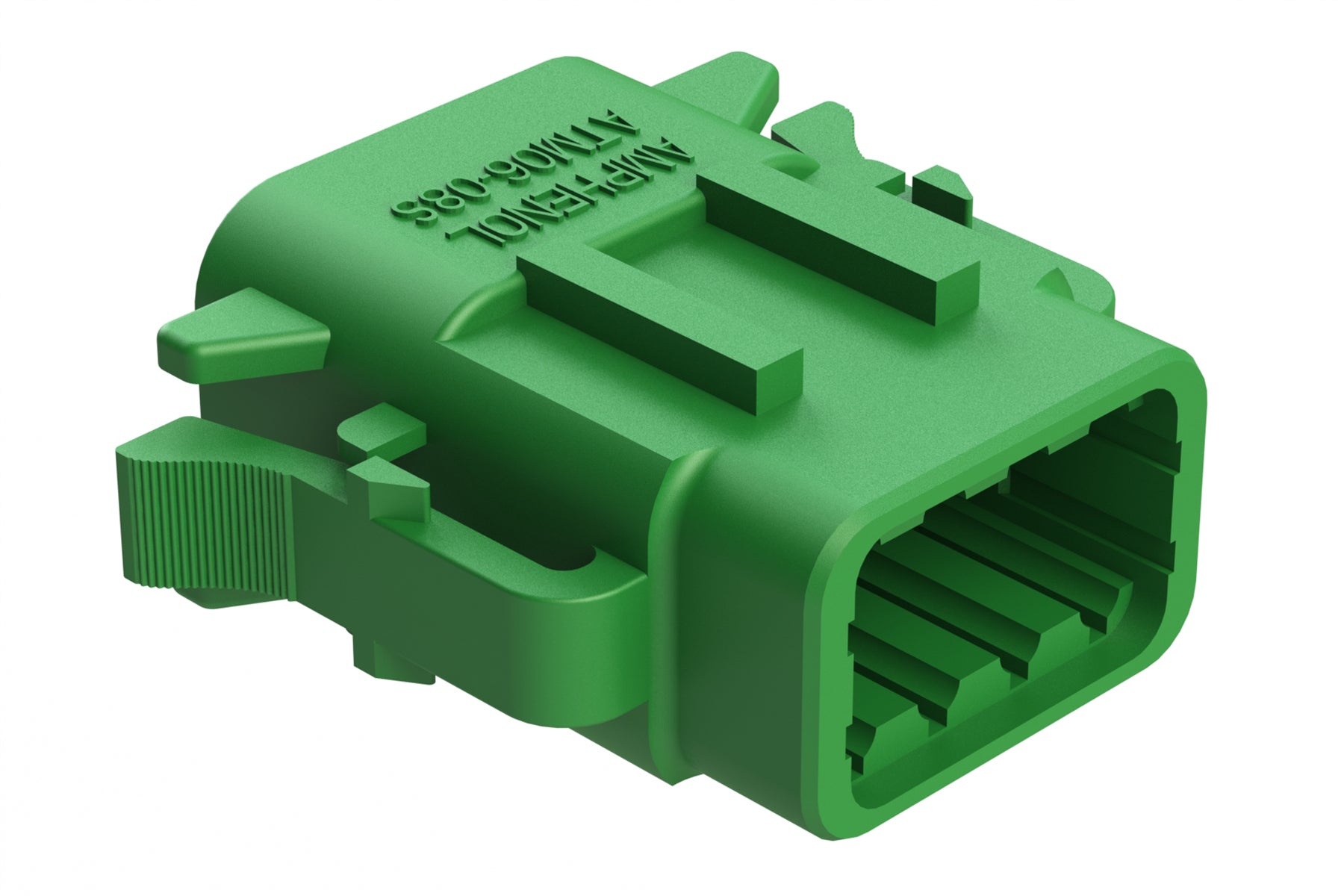

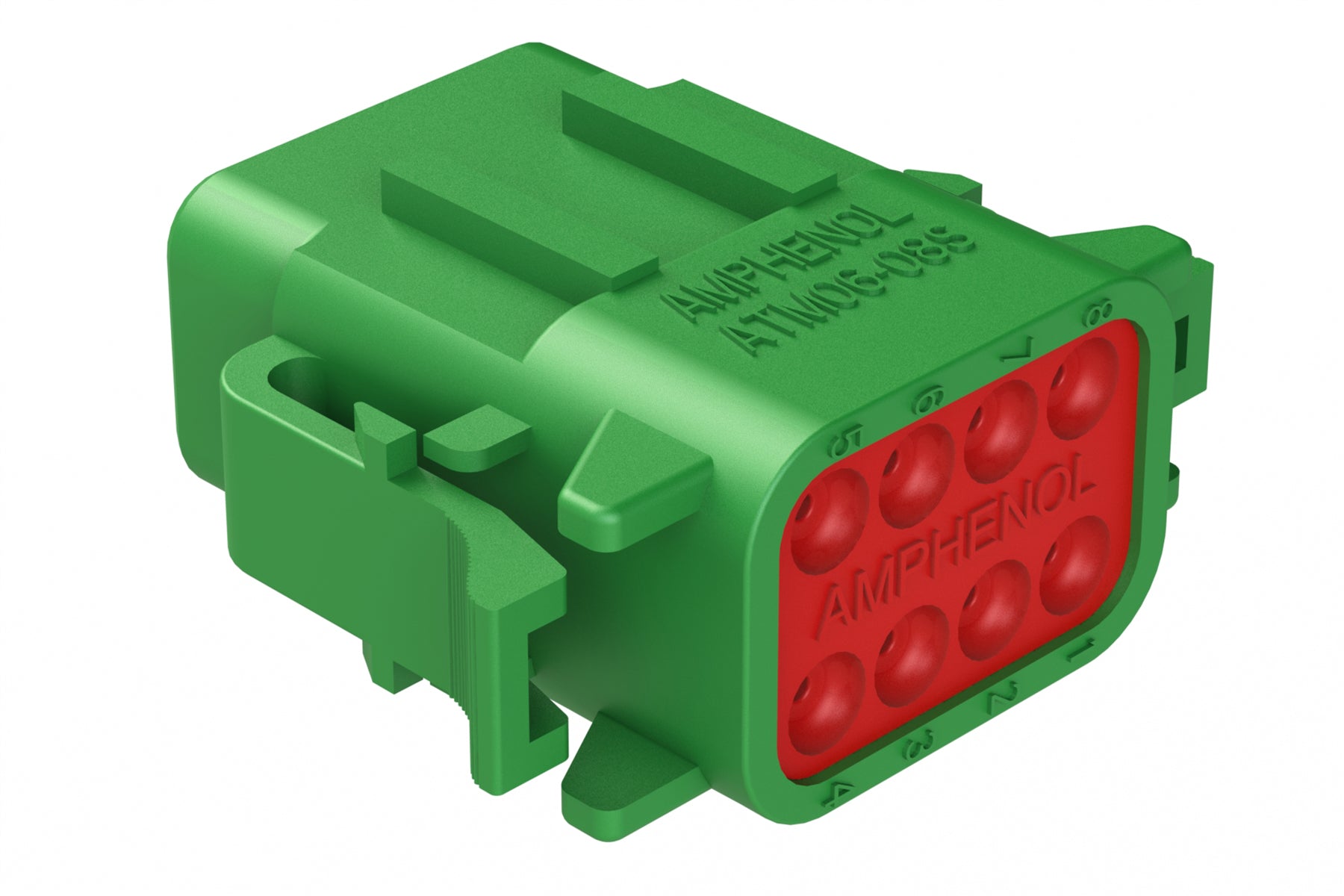

ATM06-08SC 8-Way Plug, Female Connector with C Position Key. DTM06-08SC

Name: ATM06-08SC 8-Way Plug, Female Connector with C Position Key. DTM06-08SC
Brand: Amphenol Sine Systems
SKU: ATM06-08SC
Availability: InStock

IMAGE MAY DIFFER

SKU:ATM06-08SC

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions
Assembly Instructions

Specifications

No. of Positions: 8 C Position Key
Gender: Female
Contact Size: 20
Colour: Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: ATM04-08PC* Receptacle
Wedge Part: AWM-8S
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 16-22 AWG
Shape: Rectangular

8-Way Plug, Female Connector with C Position Key
