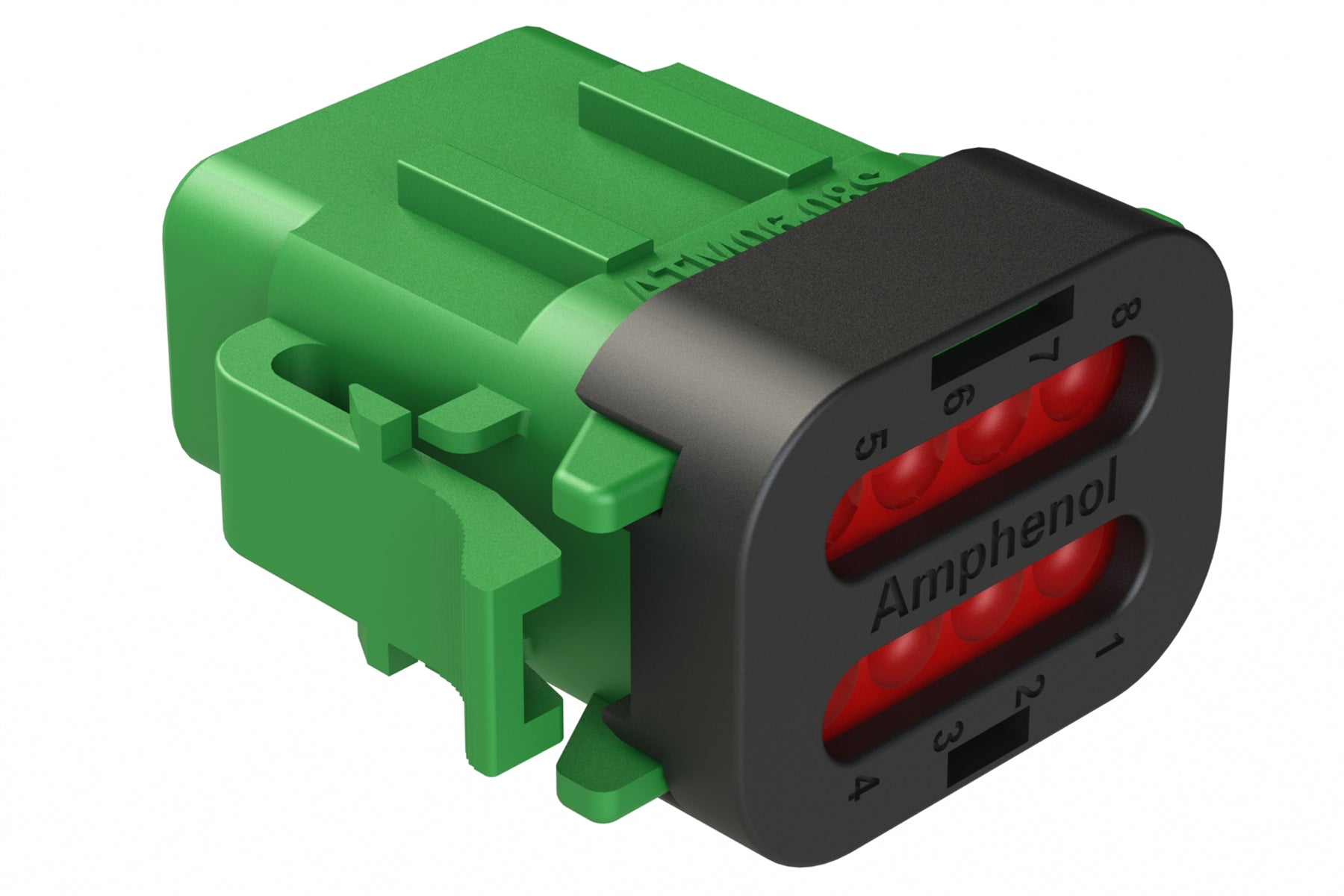

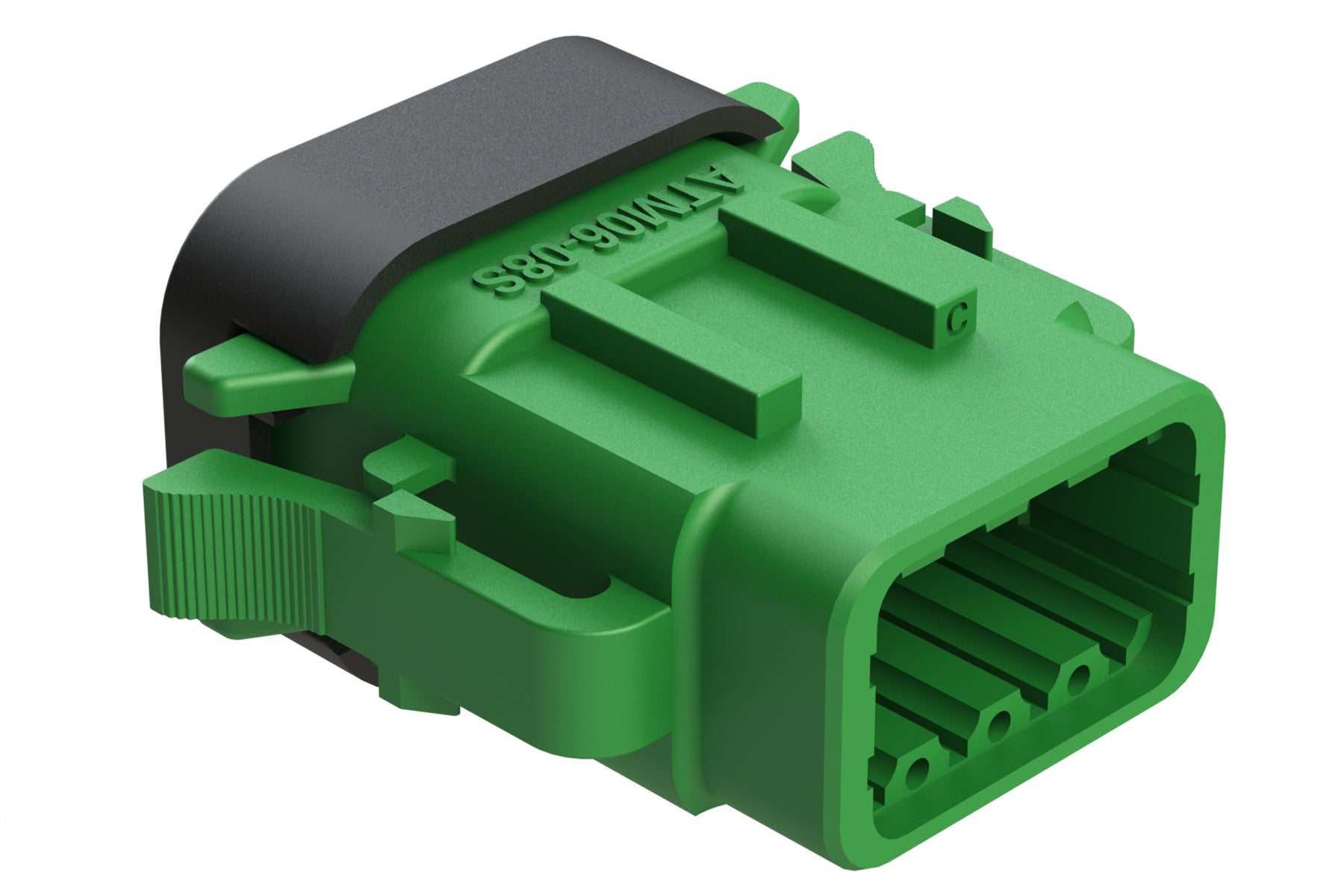

ATM06-08SC-SF1GN 8 Position Plug, Socket, Keyed C, Snap-Fit End Cap, Green
ATM06-08SC-SF1GN 8 Position Plug, Socket, Keyed C, Snap-Fit End Cap, Green
IMAGE MAY DIFFER
SKU:ATM06-08SC-SF1GN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 8Gender: Female
Contact Size: 20
Colour: Green
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silcone Rubber
Mating Part: ATM04-08PC* Receptacle
Wedge Part: AWM-8S
Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
Wire Range: 16 - 22 AWG (1.5 - 0.35 mm²)
Shape: Rectangular
8 Position Plug, Socket, Keyed C, Snap-Fit End Cap, Green
