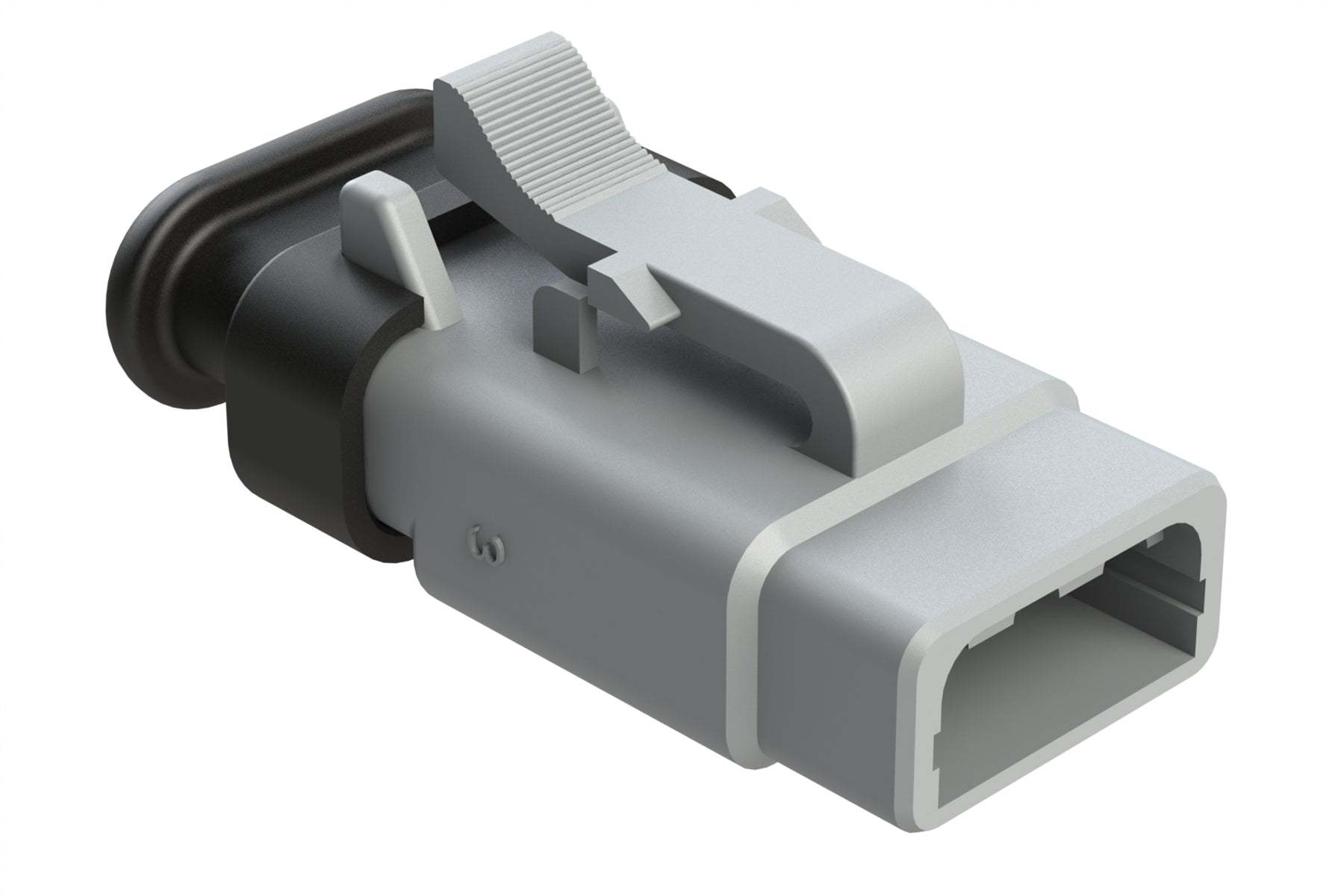

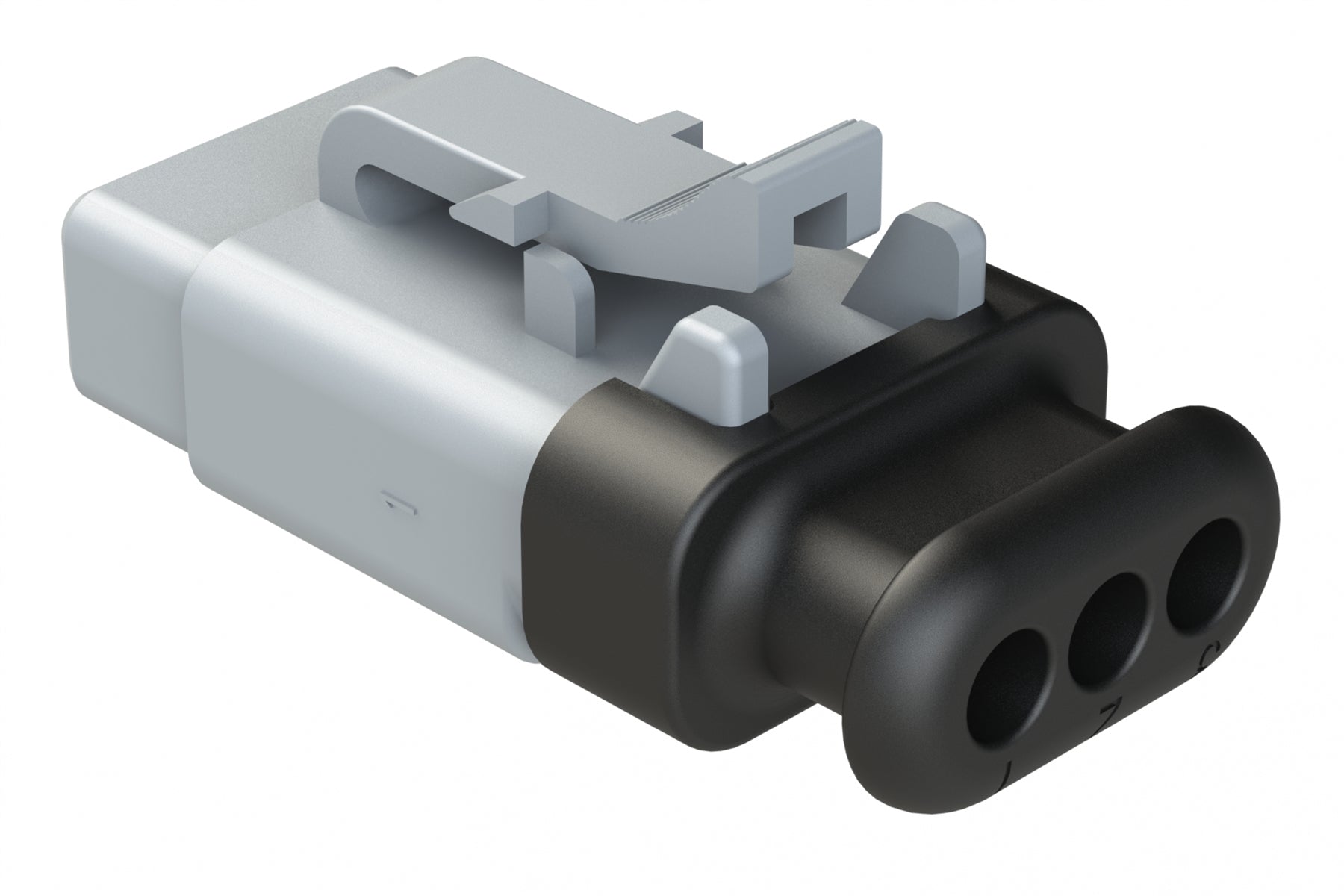

ATM06-3S-SR01GY 3 Position, Plug, Socket, Standard Diameter Rear Seal (Red), SR01 Strain Relief, Grey Body (Requires Wedgelock AWM-3S.). DTM06-3S-E007
ATM06-3S-SR01GY 3 Position, Plug, Socket, Standard Diameter Rear Seal (Red), SR01 Strain Relief, Grey Body (Requires Wedgelock AWM-3S.). DTM06-3S-E007
IMAGE MAY DIFFER
SKU:ATM06-3S-SR01GY
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 3Gender: Female
Contact Size: 20
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATM04-3P* Receptacle
Wedge Part: AWM-3S
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 16-22 AWG
Shape: Triangular
3 Position, Plug, Socket, Standard Diameter Rear Seal (Red), SR01 Strain Relief, Grey Body (Requires Wedgelock AWM-3S.)
