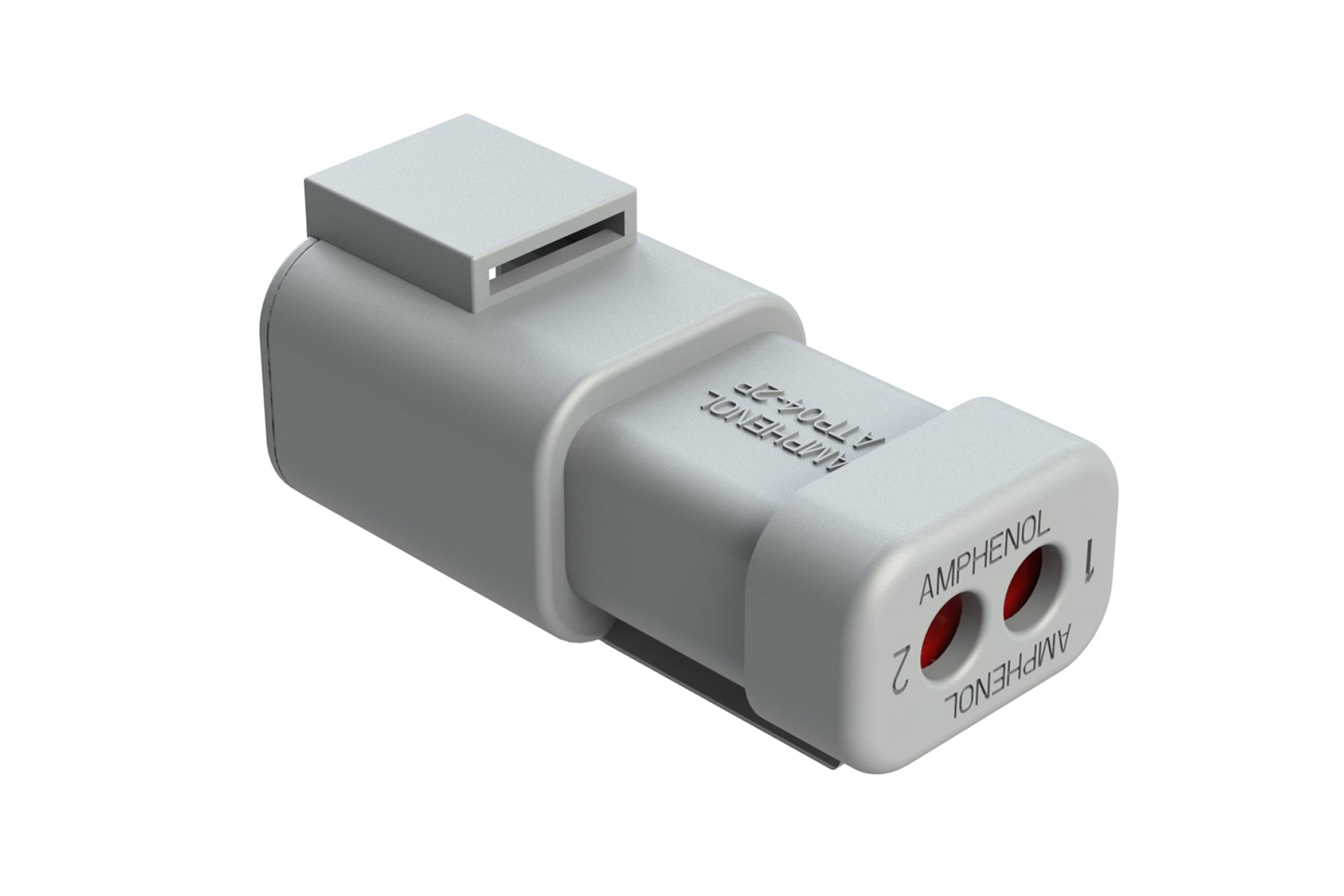

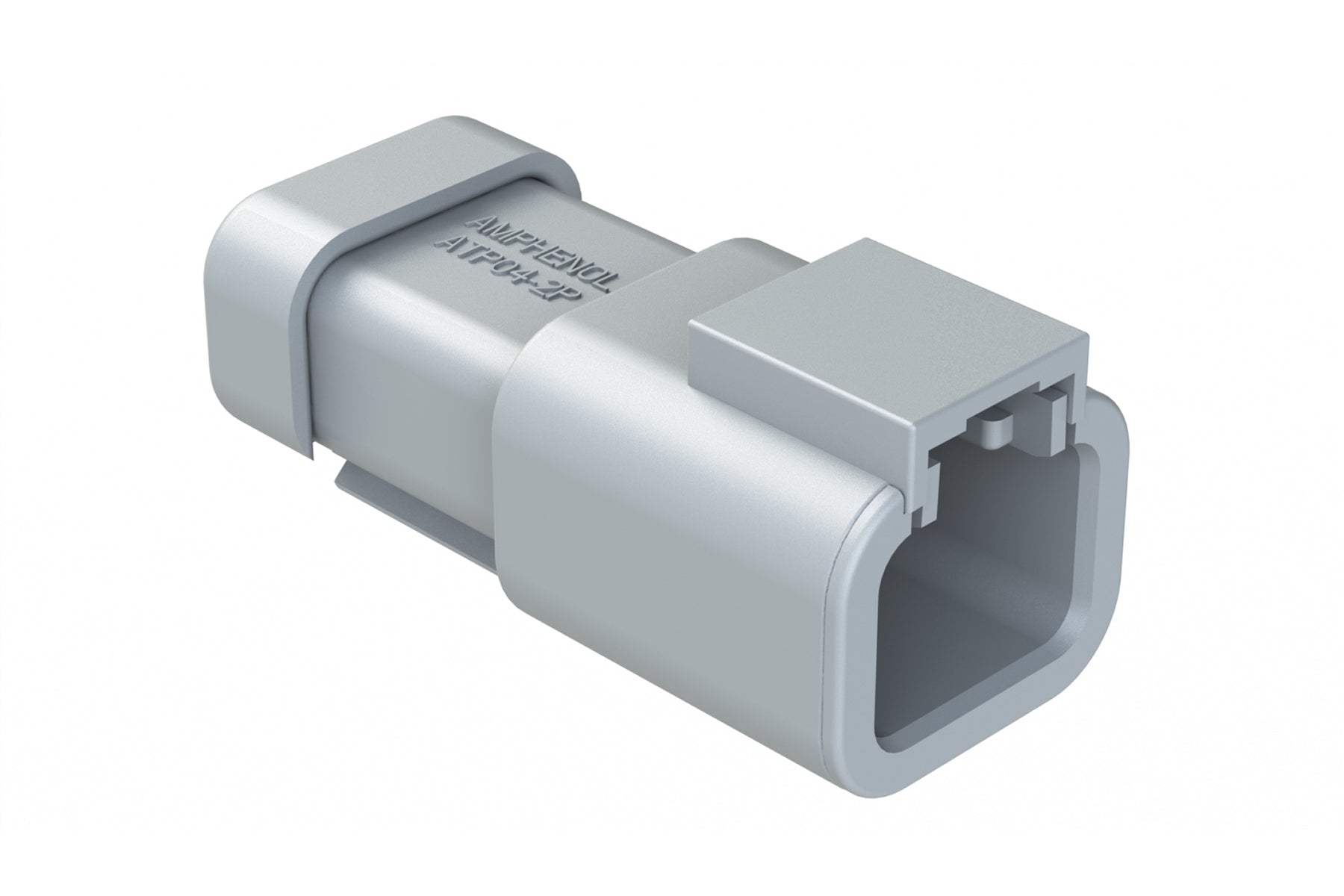

ATP04-2P-EC01 2-Way Receptacle, Male Connector with End Cap. DTP04-2P-E003
ATP04-2P-EC01 2-Way Receptacle, Male Connector with End Cap. DTP04-2P-E003
IMAGE MAY DIFFER
SKU:ATP04-2P-EC01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 2Gender: Male
Contact Size: 12
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: ATP06-2S* Plug
Wedge Part: AW-2P,AWP-2PA, AWP-2PB, AWP-2PC,AWP-2PD
Seal Diameter: 3.40mm(.134") - 4.95mm(.195")
Wire Range: 10-14 AWG
Shape: Rectangular
2-Way Receptacle, Male Connector with End Cap
