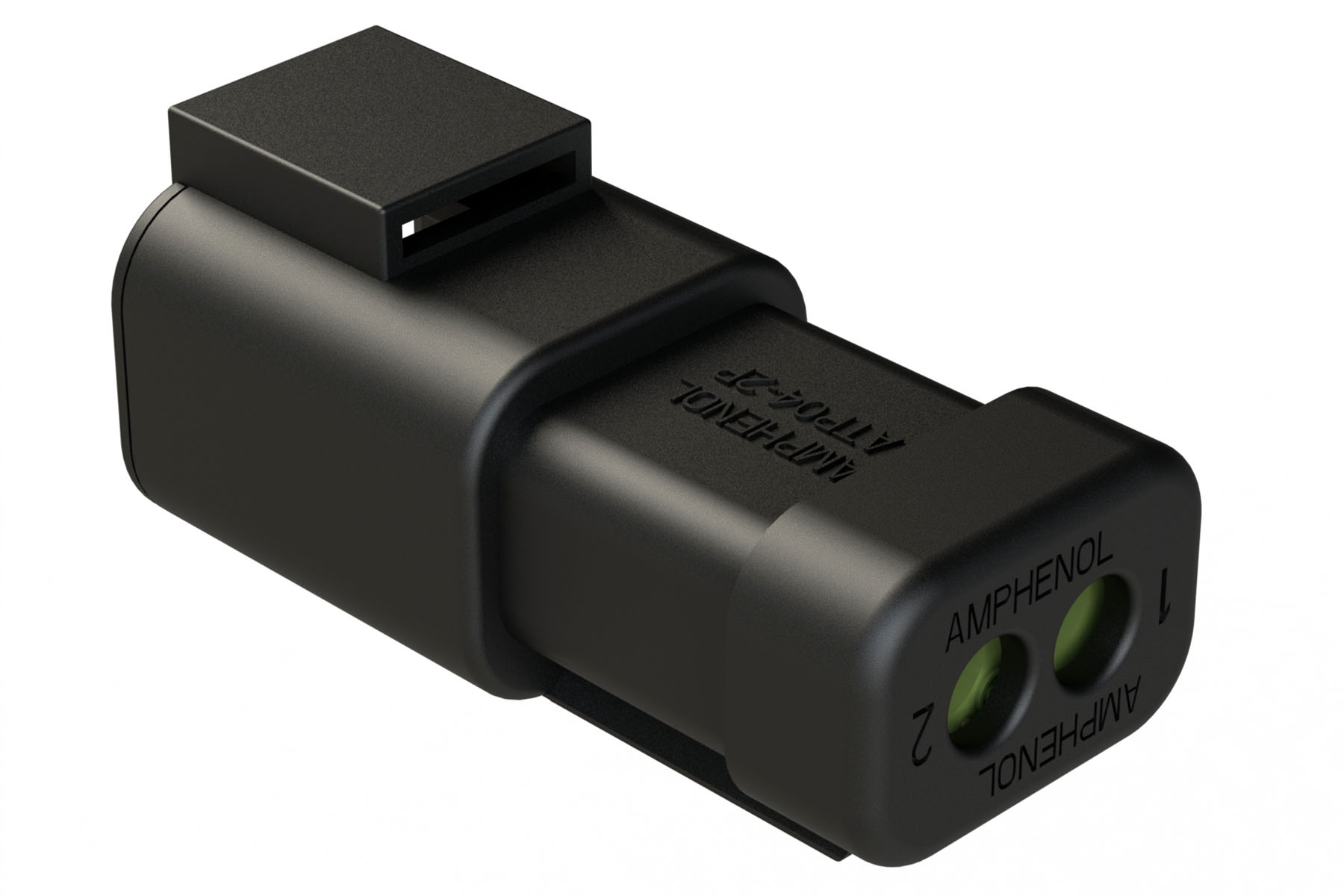

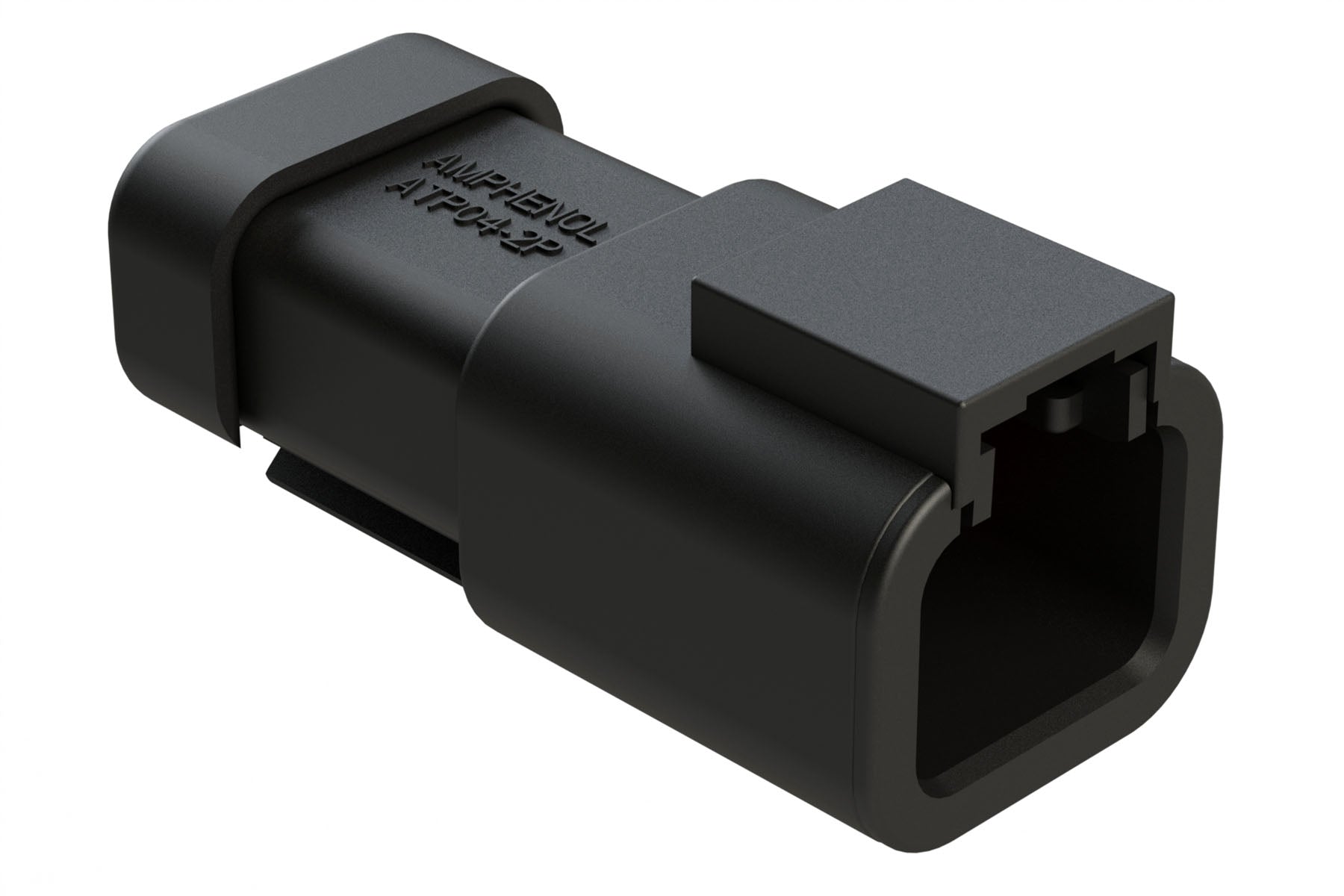

ATP04-2P-MM01BLK 2 Position Receptacle, Male, Reduced Diameter Seal, End Cap, Black. DTP04-2P-CE03
ATP04-2P-MM01BLK 2 Position Receptacle, Male, Reduced Diameter Seal, End Cap, Black. DTP04-2P-CE03
IMAGE MAY DIFFER
SKU:ATP04-2P-MM01BLK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 2Gender: Male
Contact Size: 12
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-2S* Plug
Wedge Part: AWP-2P,AWP-2PA, AWP-2PB, AWP-2PC,AWP-2PD
Seal Diameter: 2.46mm (.097") - 4.01mm (.158")
Wire Range: 12-14AWG
Shape: Rectangular
2 Position Receptacle, Male, Reduced Diameter Seal, End Cap, Black
