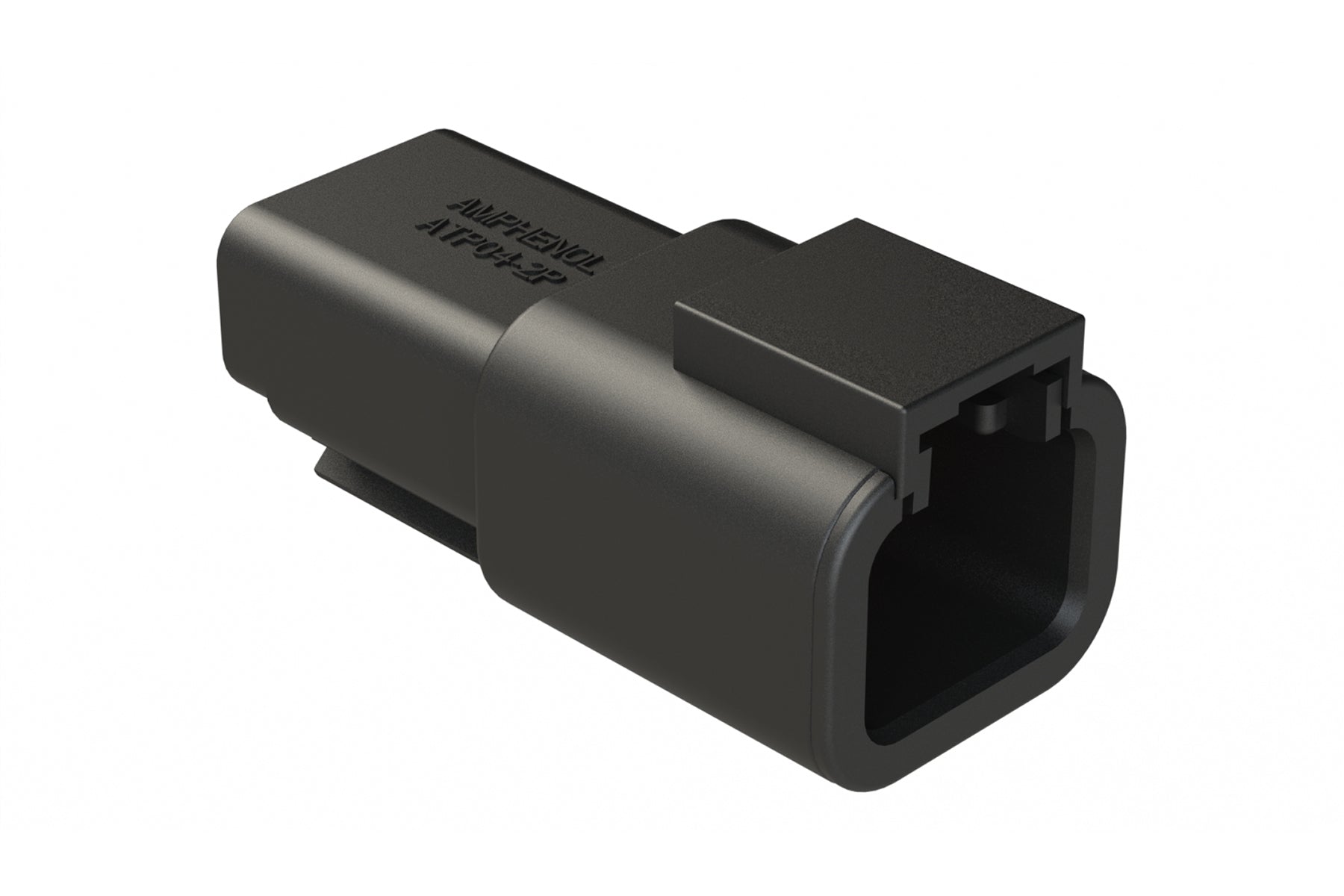

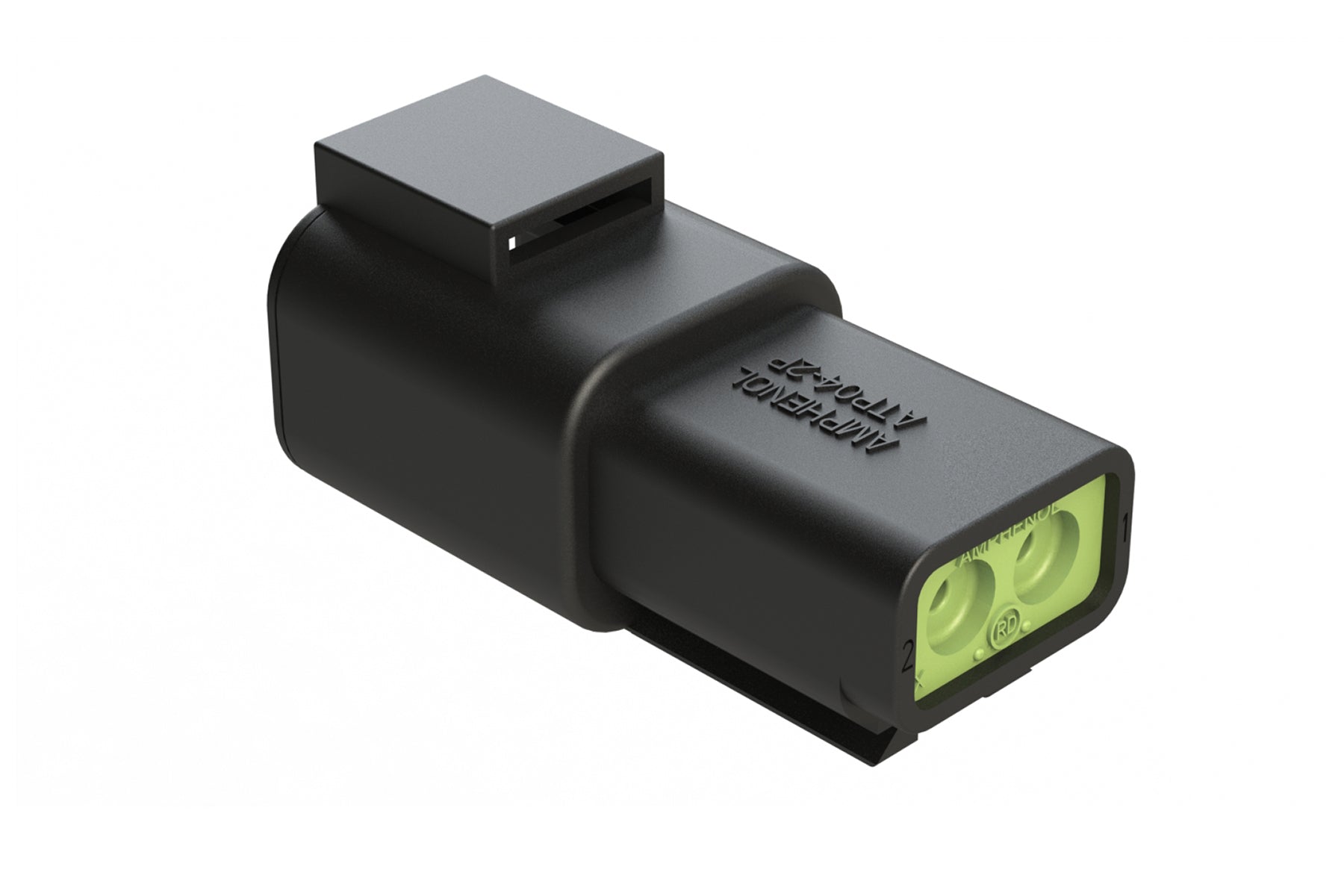

ATP04-2P-RD01BK 2 Position Receptacle, Pin, Reduced Diameter Rear Seal (Green), Black Body (Requires Wedgelock AWP-2P)
ATP04-2P-RD01BK 2 Position Receptacle, Pin, Reduced Diameter Rear Seal (Green), Black Body (Requires Wedgelock AWP-2P)
IMAGE MAY DIFFER
SKU:ATP04-2P-RD01BK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 2Gender: Male
Contact Size: 12
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT06-4S* PLUG
Wedge Part: AWP-2P,AWP-2PA, AWP-2PB, AWP-2PC,AWP-2PD
Seal Diameter: 2.46mm(.097") - 4.01mm(.158")
Wire Range: 10-14 AWG
Shape: Rectangular
2 Position Receptacle, Pin, Reduced Diameter Rear Seal (Green), Black Body (Requires Wedgelock AWP-2P)
