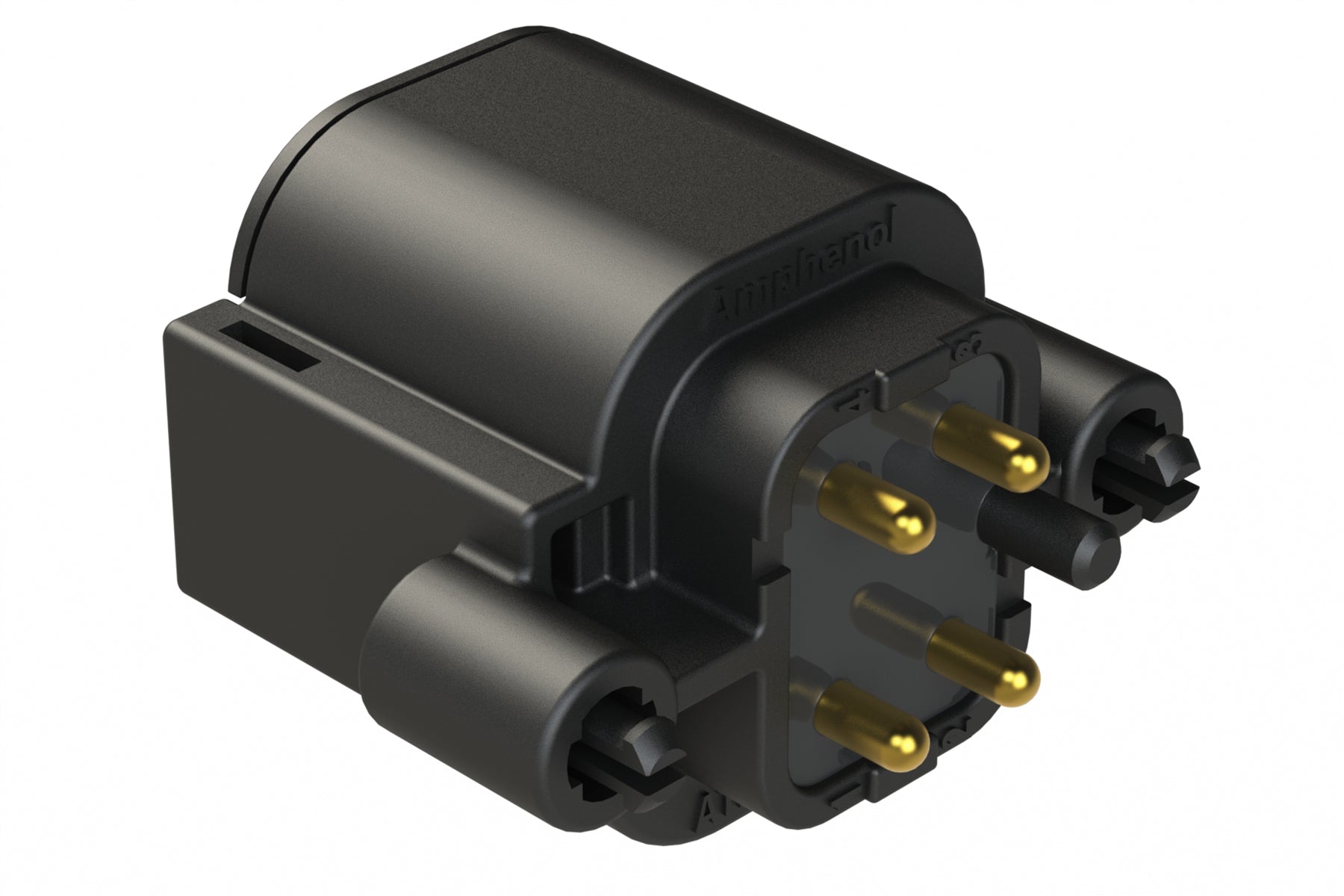

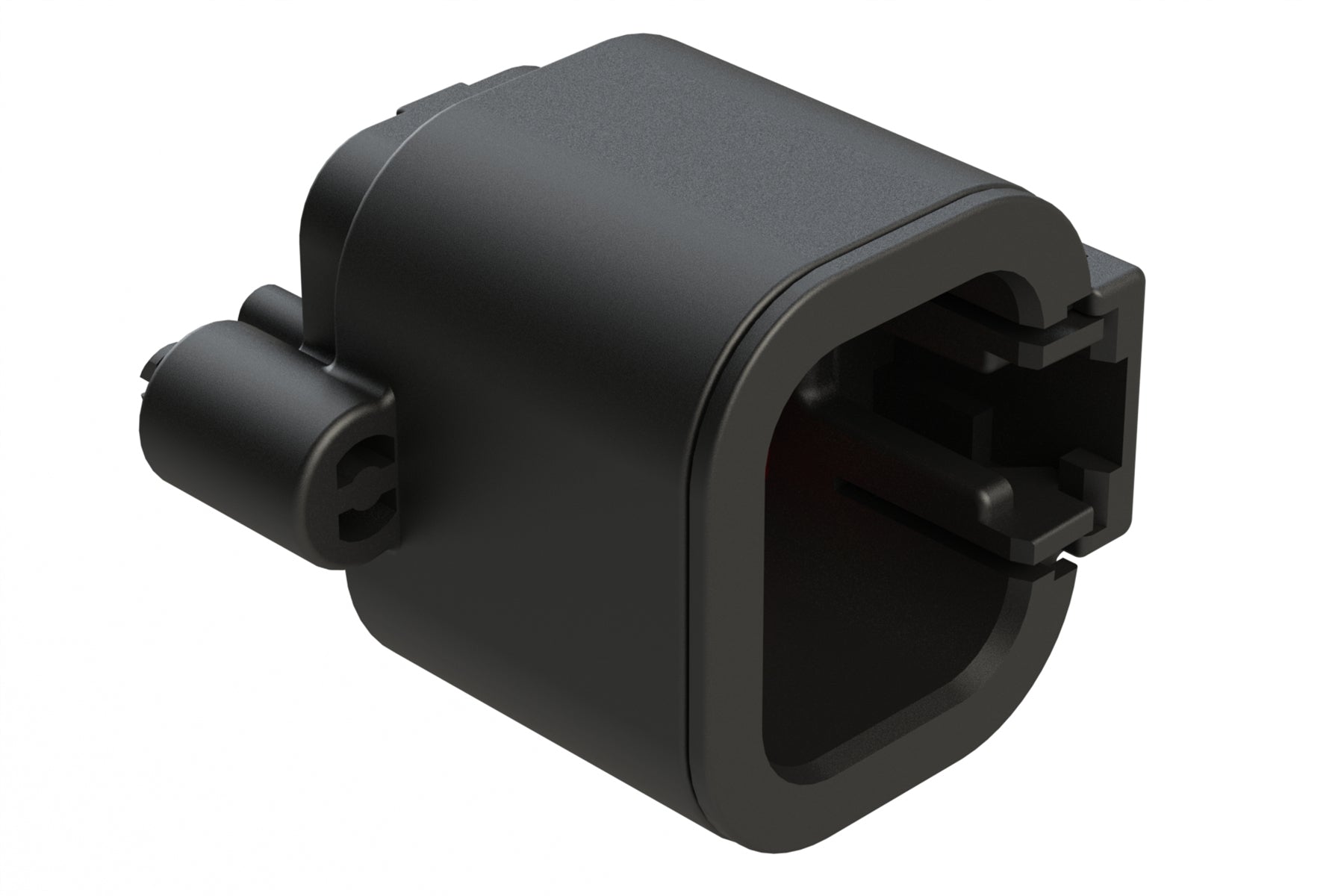

ATP04-4P-BM02 4 Position, Straight PCB Receptacle, Pin, Board Mount, Snap-Fit, Gold Contact Plated, Potting, Black
ATP04-4P-BM02 4 Position, Straight PCB Receptacle, Pin, Board Mount, Snap-Fit, Gold Contact Plated, Potting, Black
IMAGE MAY DIFFER
SKU:ATP04-4P-BM02
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 4Gender: Male
Contact Size: 12
Contact Material: Copper Alloy
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-4S*
Wire Range: 10-14AWG
Shape: Rectangular
4 Position, Straight PCB Receptacle, Pin, Board Mount, Snap-Fit, Gold Contact Plated, Potting, Black
