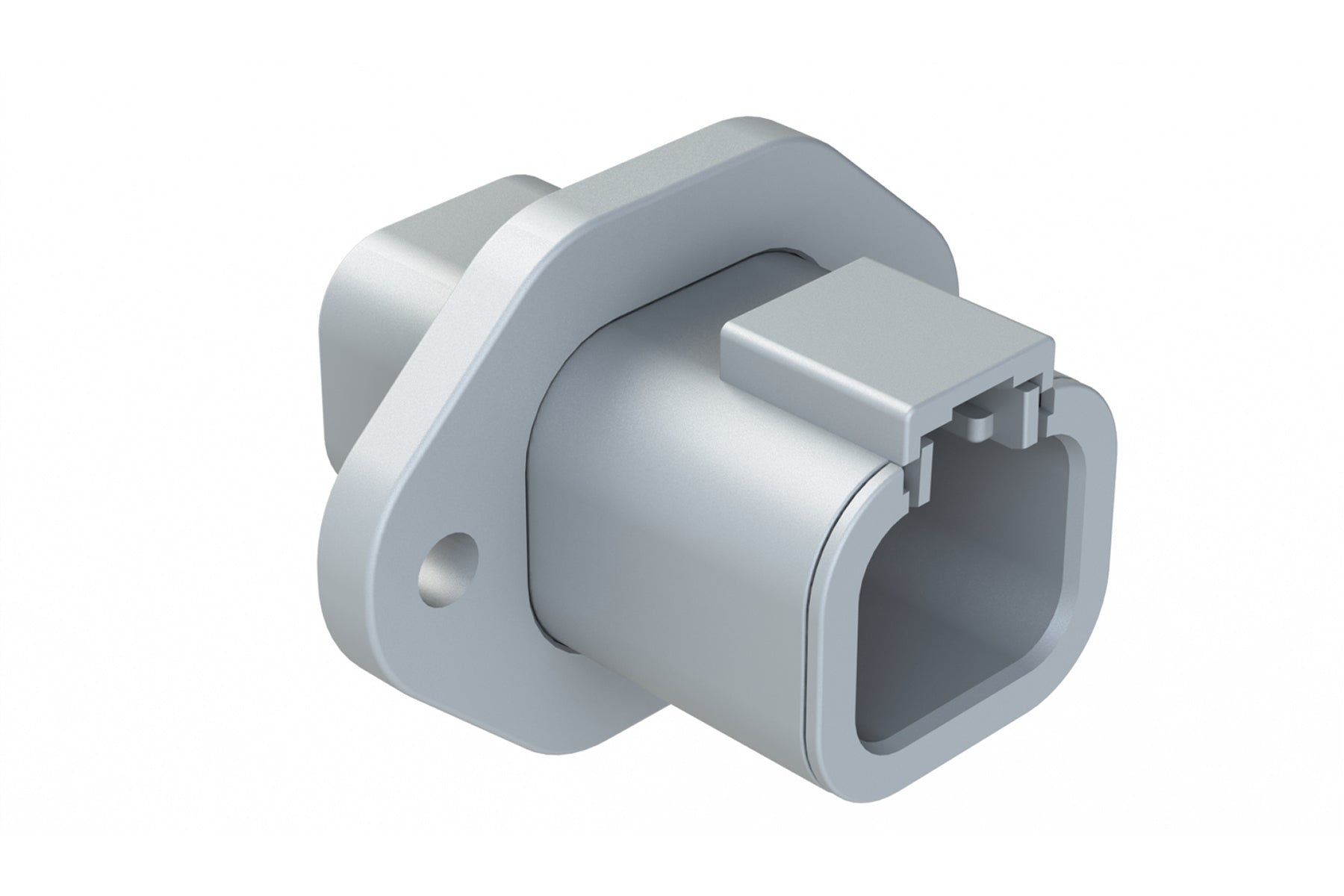

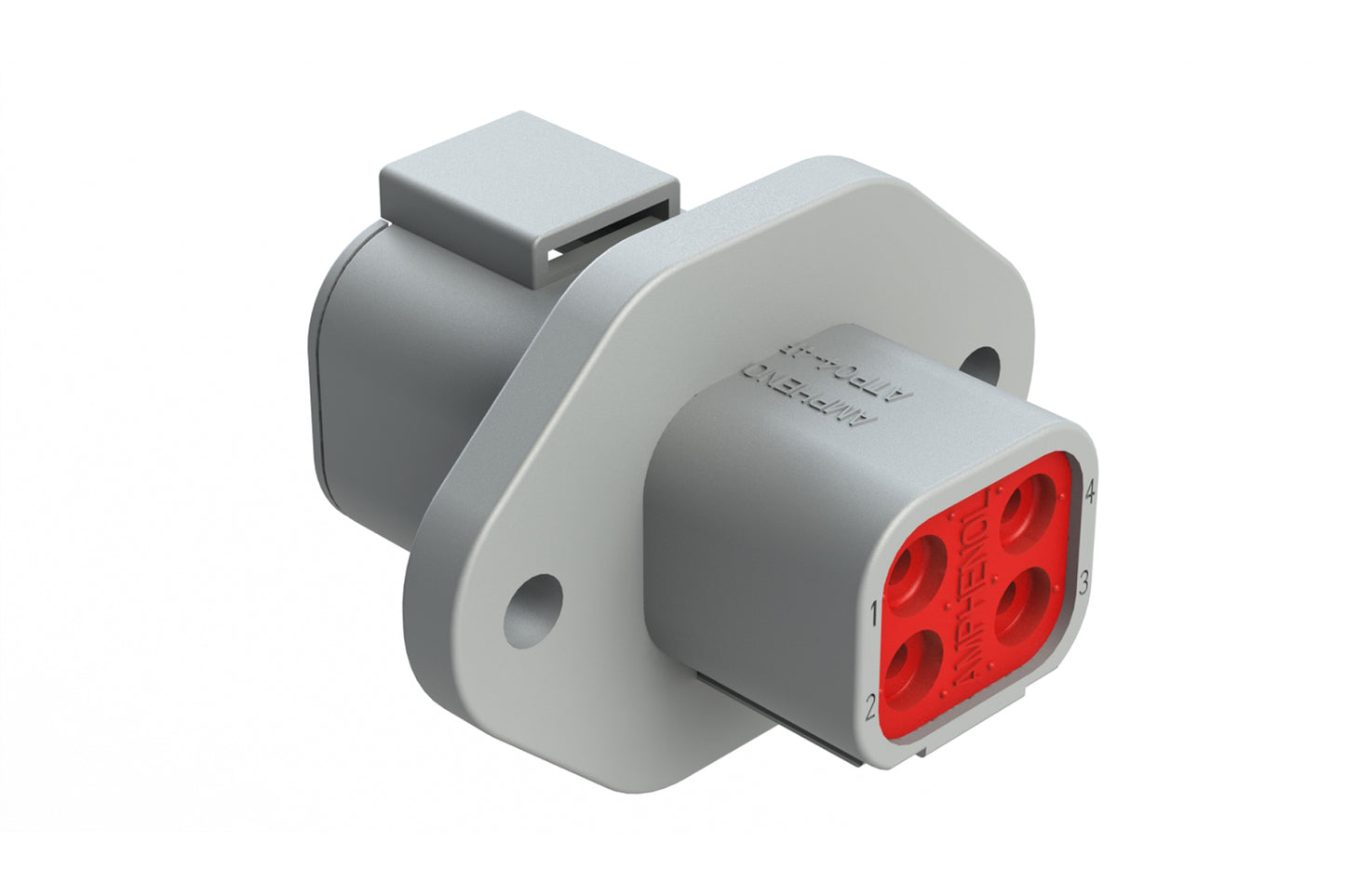

ATP04-4P-PM01 4-Way Receptacle, Male Flange. DTP04-4P-L012
ATP04-4P-PM01 4-Way Receptacle, Male Flange. DTP04-4P-L012
IMAGE MAY DIFFER
SKU:ATP04-4P-PM01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 4Gender: Male
Contact Size: 12
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT06-4S* Plug
Wedge Part: AWP-4P,AWP-4PA,AWP-4PB,AWP-4PC,AWP-4PD
Seal Diameter: 3.40mm (.134") - 4.95mm (.195")
Wire Range: 10-14 AWG
Shape: Rectangular
4-Way Receptacle, Male Flange
