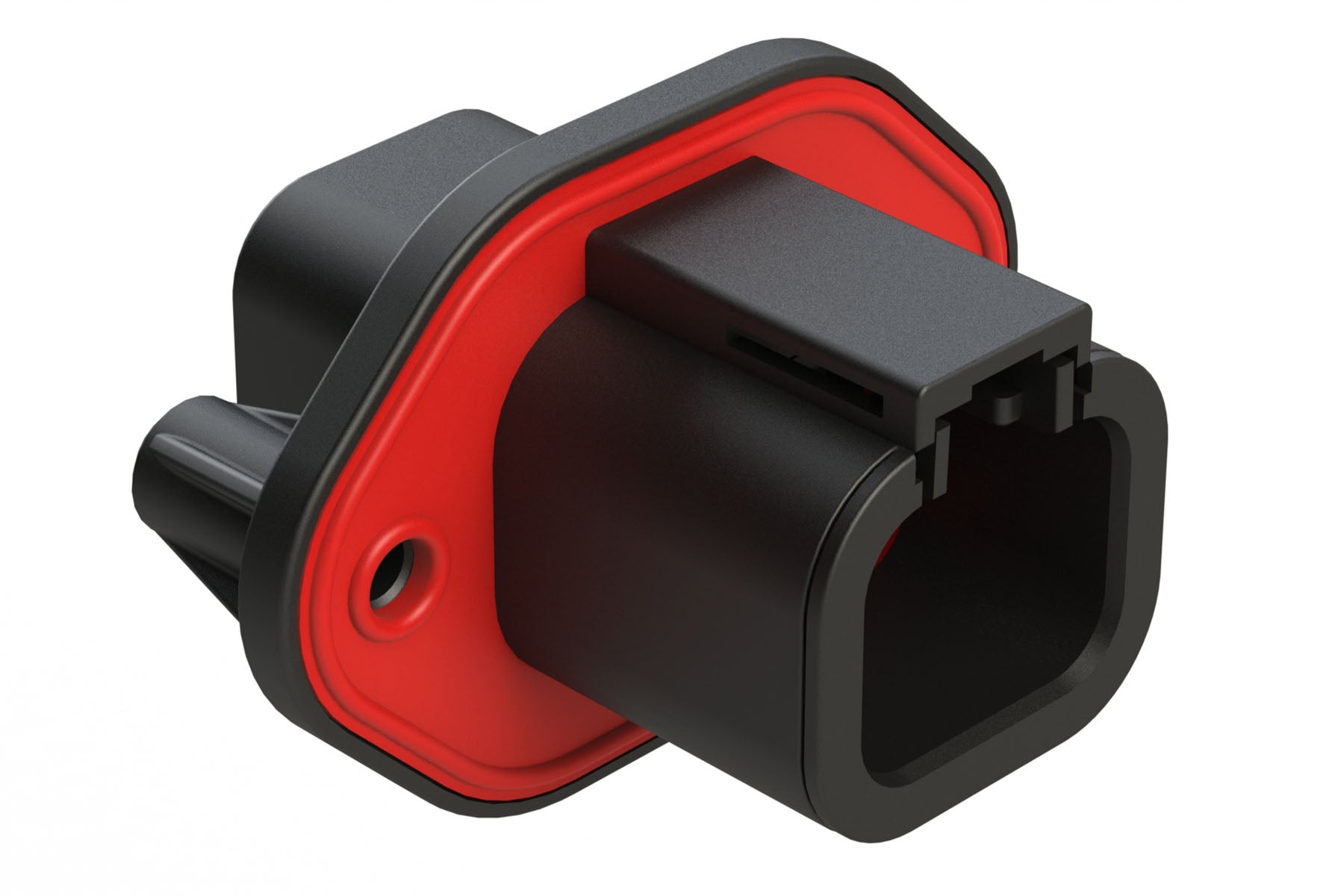

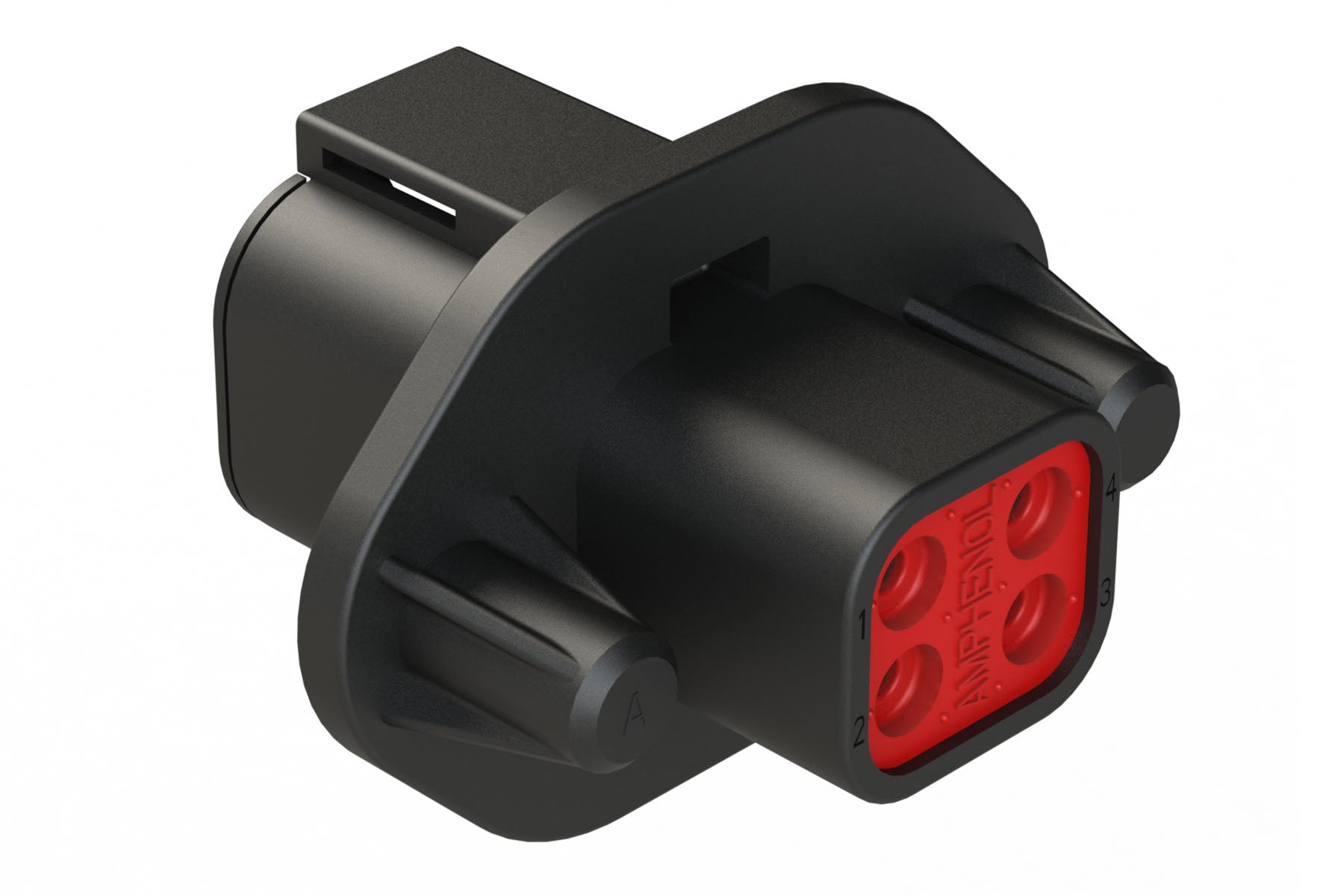

ATP04-4P-PM07G 4 Pin Receptacle, Screw Panel Mount, with Gasket, Black
ATP04-4P-PM07G 4 Pin Receptacle, Screw Panel Mount, with Gasket, Black
IMAGE MAY DIFFER
SKU:ATP04-4P-PM07G
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 4Gender: Male
Contact Size: 12
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-4S* Plug
Wedge Part: AWP-4P,AWP-4PA,AWP-4PB,AWP-4PC,AWP-4PD
Seal Diameter: 3.40mm(.134") - 4.95mm(.195")
Wire Range: 10-14AWG
Shape: Rectangular
4 Pin Receptacle, Screw Panel Mount, with Gasket, Black
