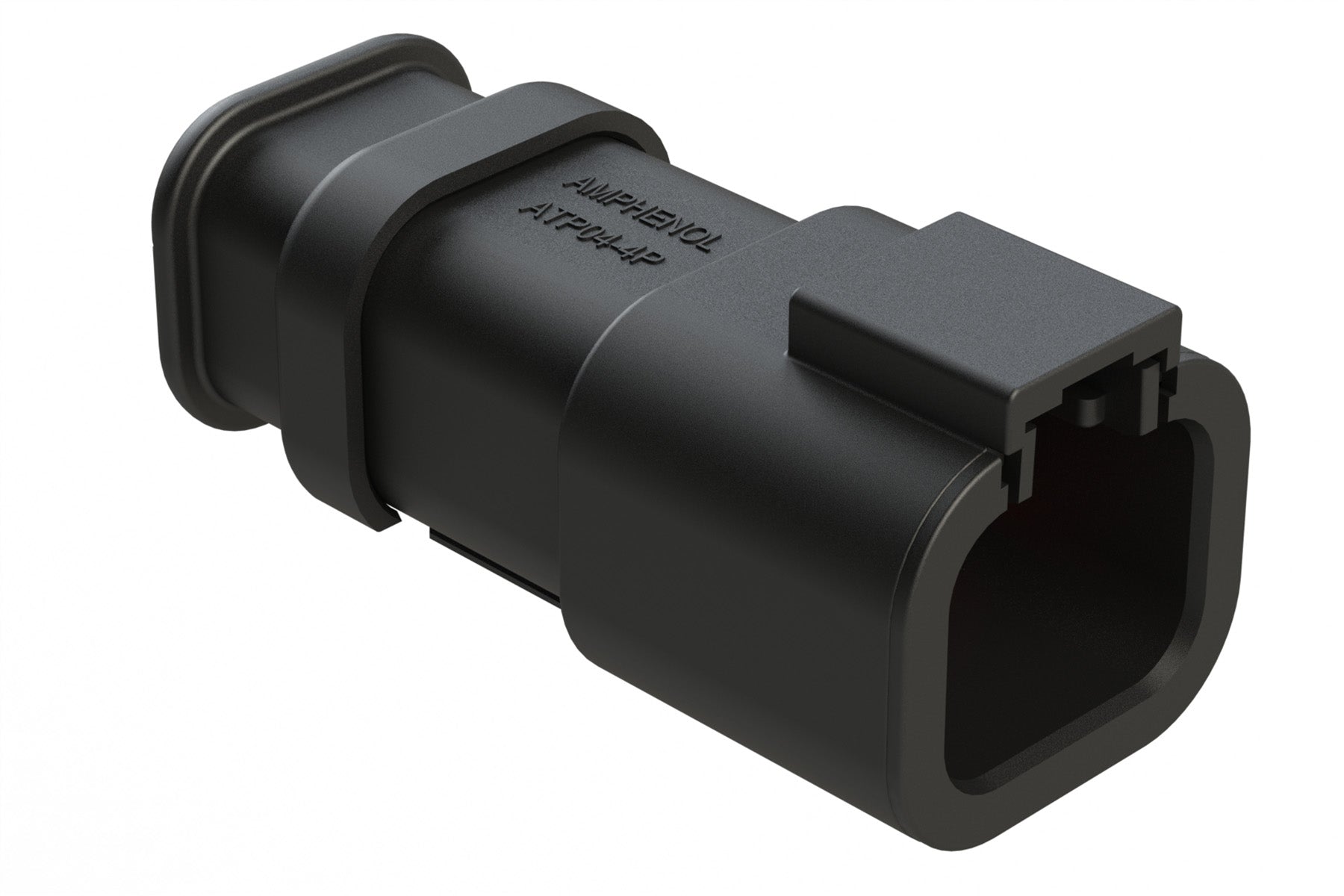

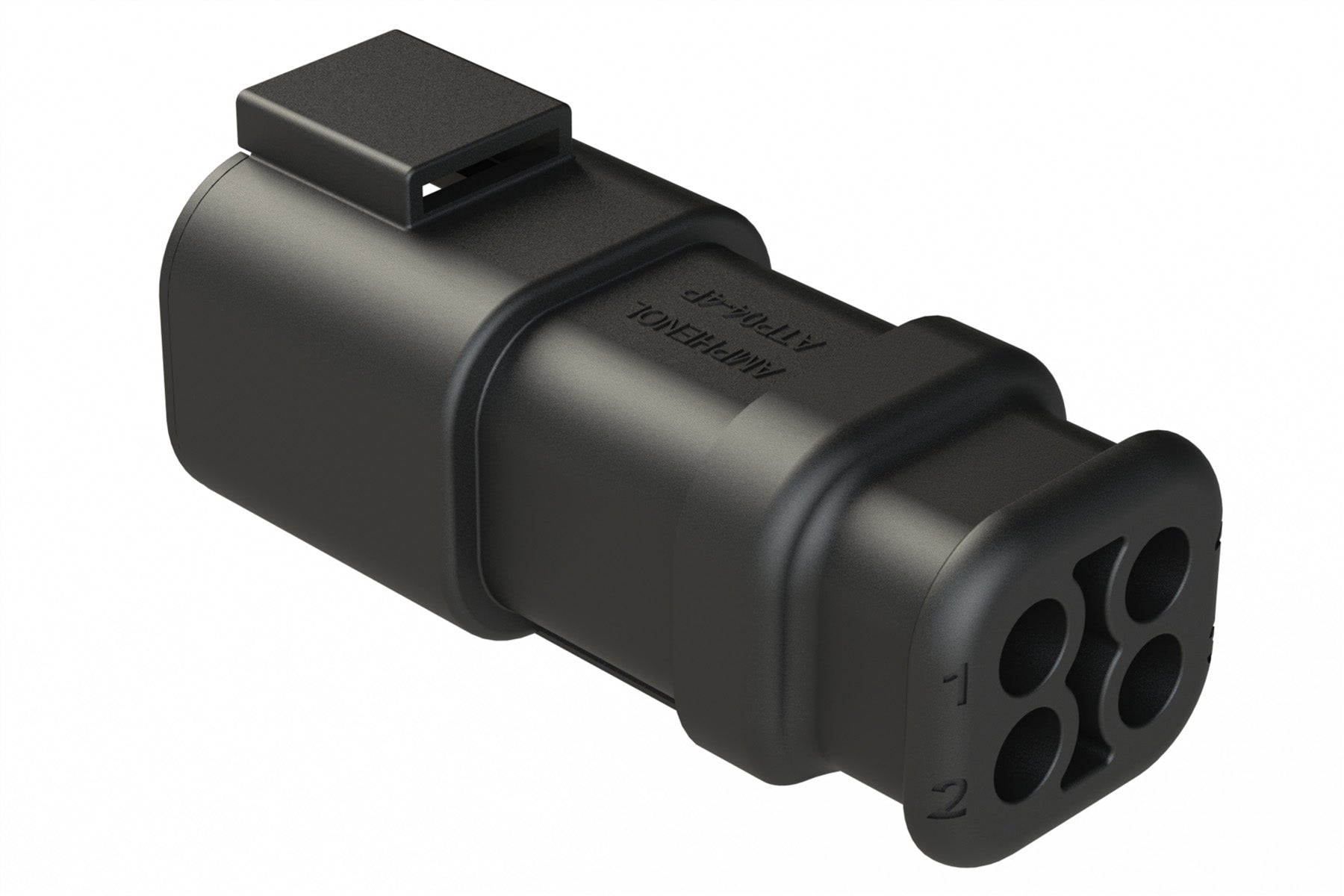

ATP04-4P-SR02BK 4 Position Receptacle, Pin, Reduced Diameter Rear Seal, Strain Relief, Black
ATP04-4P-SR02BK 4 Position Receptacle, Pin, Reduced Diameter Rear Seal, Strain Relief, Black
IMAGE MAY DIFFER
SKU:ATP04-4P-SR02BK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 4Gender: Male
Contact Size: 12
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-4S* Plug
Wedge Part: AWP-4P,AWP-4PA,AWP-4PB,AWP-4PC,AWP-4PD
Seal Diameter: 2.46mm (.097") - 4.01mm (.158")
Wire Range: 12-14AWG
Shape: Rectangular
4 Position Receptacle, Pin, Reduced Diameter Rear Seal, Strain Relief, Black
