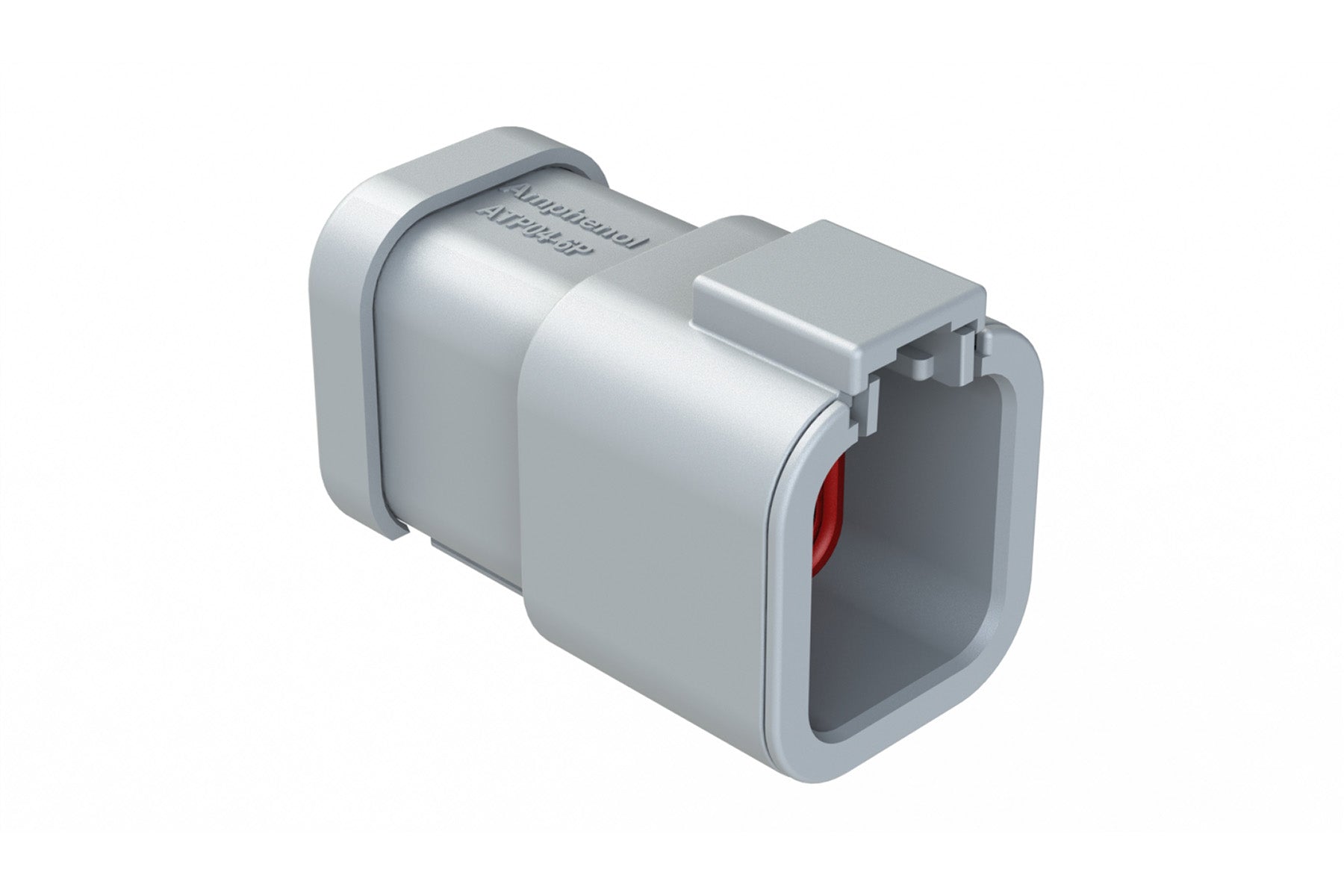

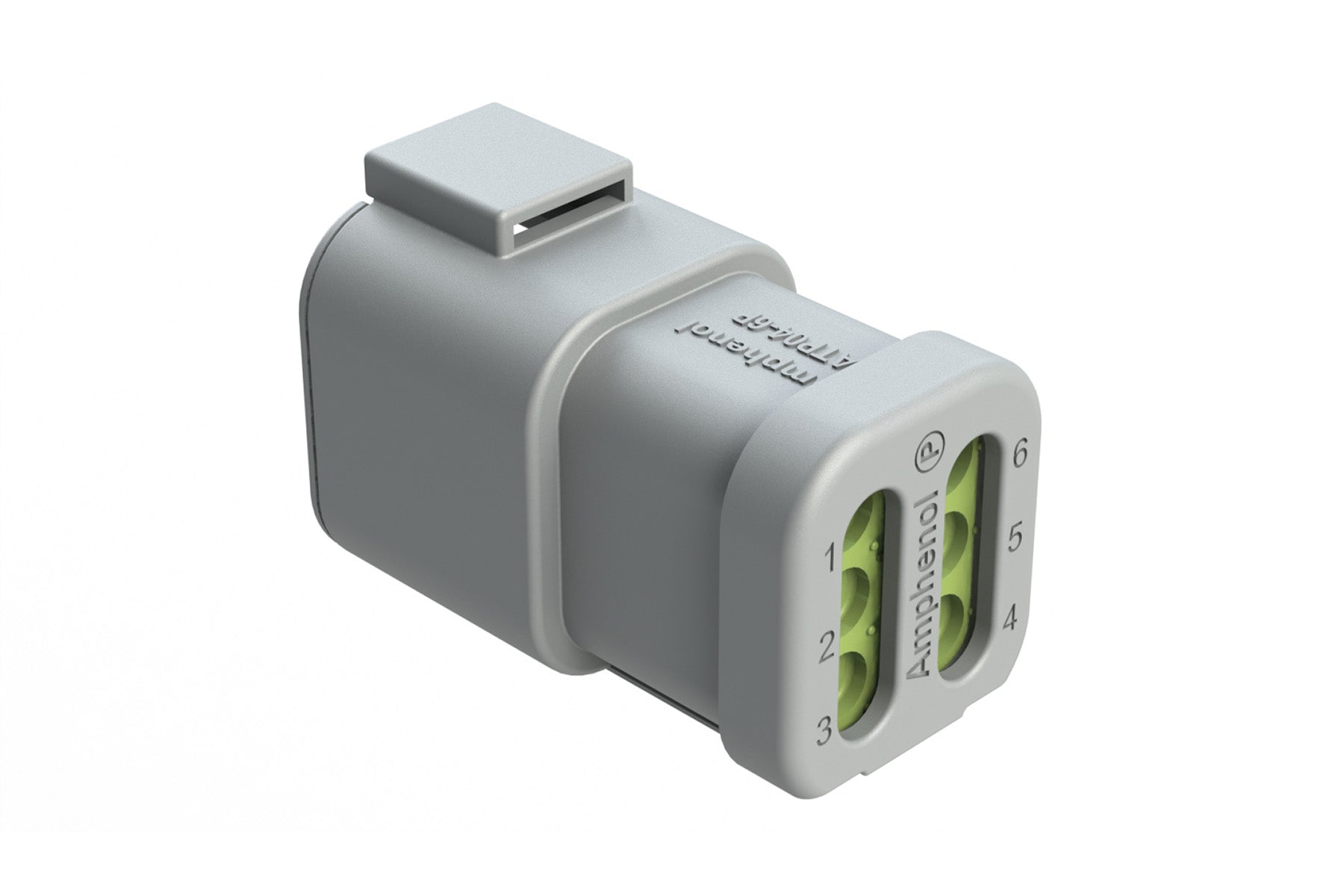

ATP04-6P-MM01 6 Position Receptacle, Male, with End Cap and Reduced Diameter Seal, Grey
ATP04-6P-MM01 6 Position Receptacle, Male, with End Cap and Reduced Diameter Seal, Grey
IMAGE MAY DIFFER
SKU:ATP04-6P-MM01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 6Gender: Male
Contact Size: 12
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-6S* Plug
Wedge Part: AWP-6P
Seal Diameter: 2.46mm(.097") - 4.01mm(.158")
Wire Range: 10-14 AWG
Shape: Rectangular
6 Position Receptacle, Male, with End Cap and Reduced Diameter Seal, Grey
