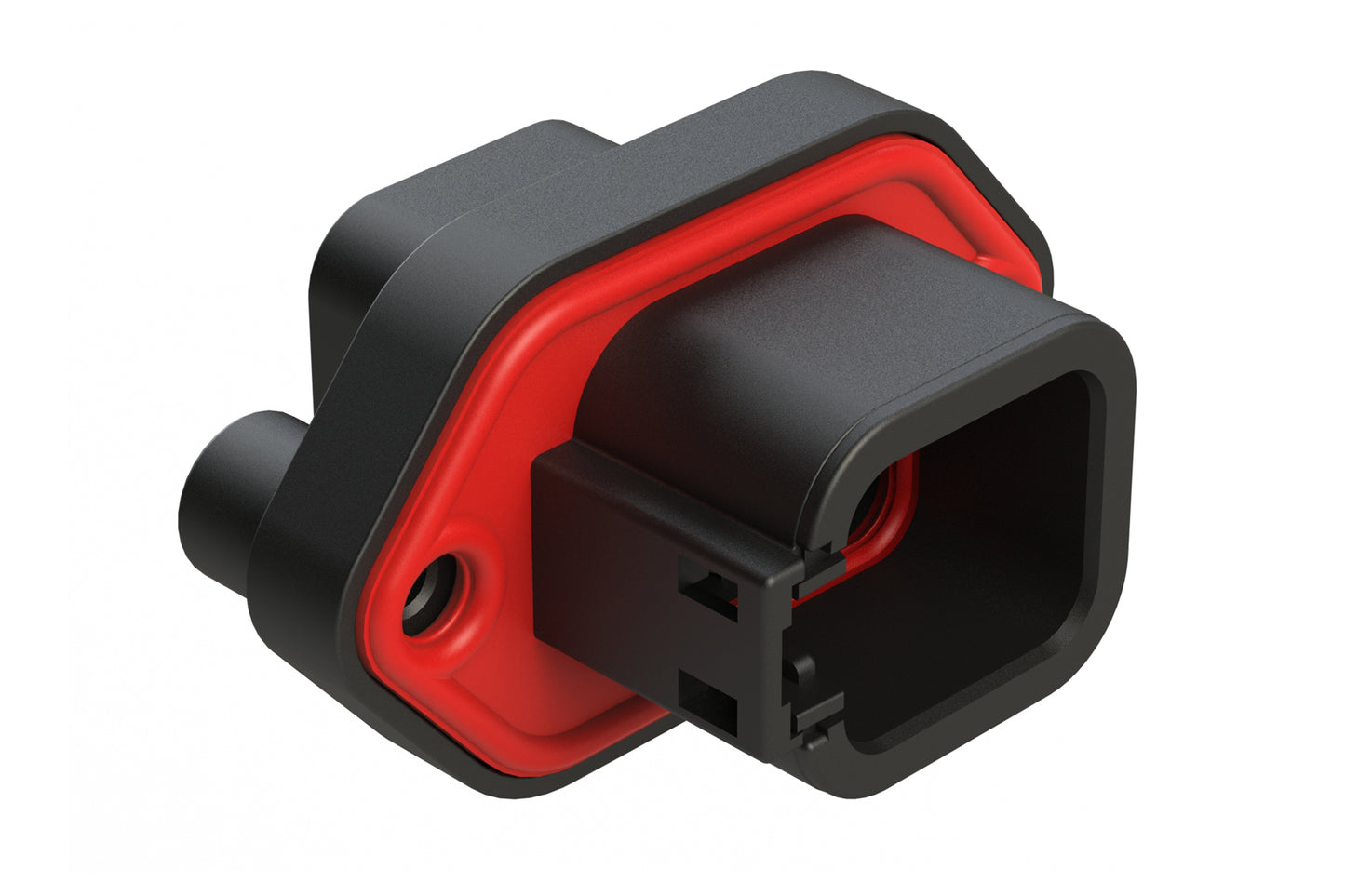

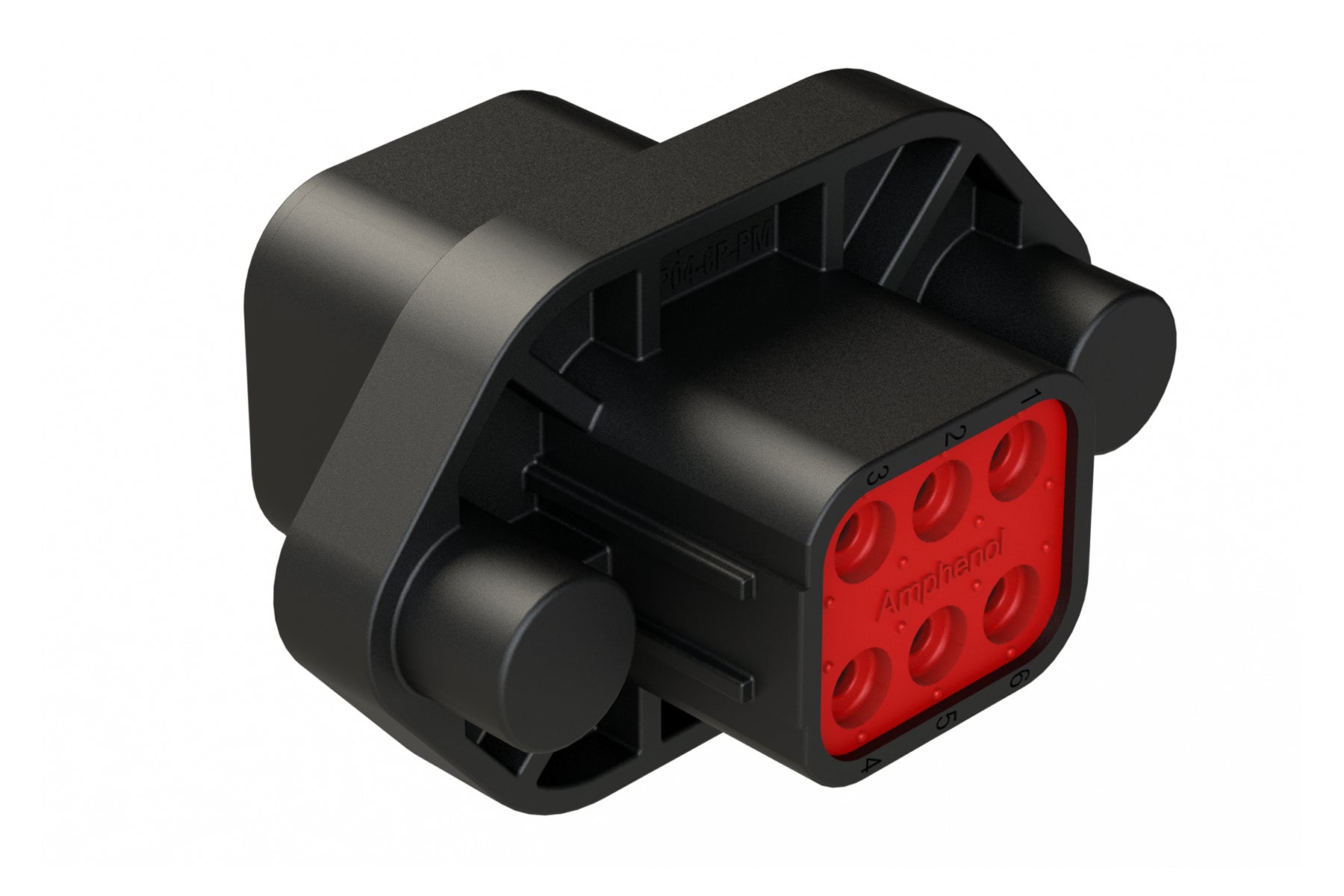

ATP04-6P-PM11BK 6 Position Panel Mount Receptacle with Flange, Pin, with Gasket, Self Tapping, Black
ATP04-6P-PM11BK 6 Position Panel Mount Receptacle with Flange, Pin, with Gasket, Self Tapping, Black
IMAGE MAY DIFFER
SKU:ATP04-6P-PM11BK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 6Gender: Male
Contact Size: 12
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-6S* Plug
Wedge Part: AWP-6P
Seal Diameter: 3.40mm (1.34") - 4.95mm (.195")
Wire Range: 10-14AWG
Shape: Rectangular
6 Position Panel Mount Receptacle with Flange, Pin, with Gasket, Self Tapping, Black
