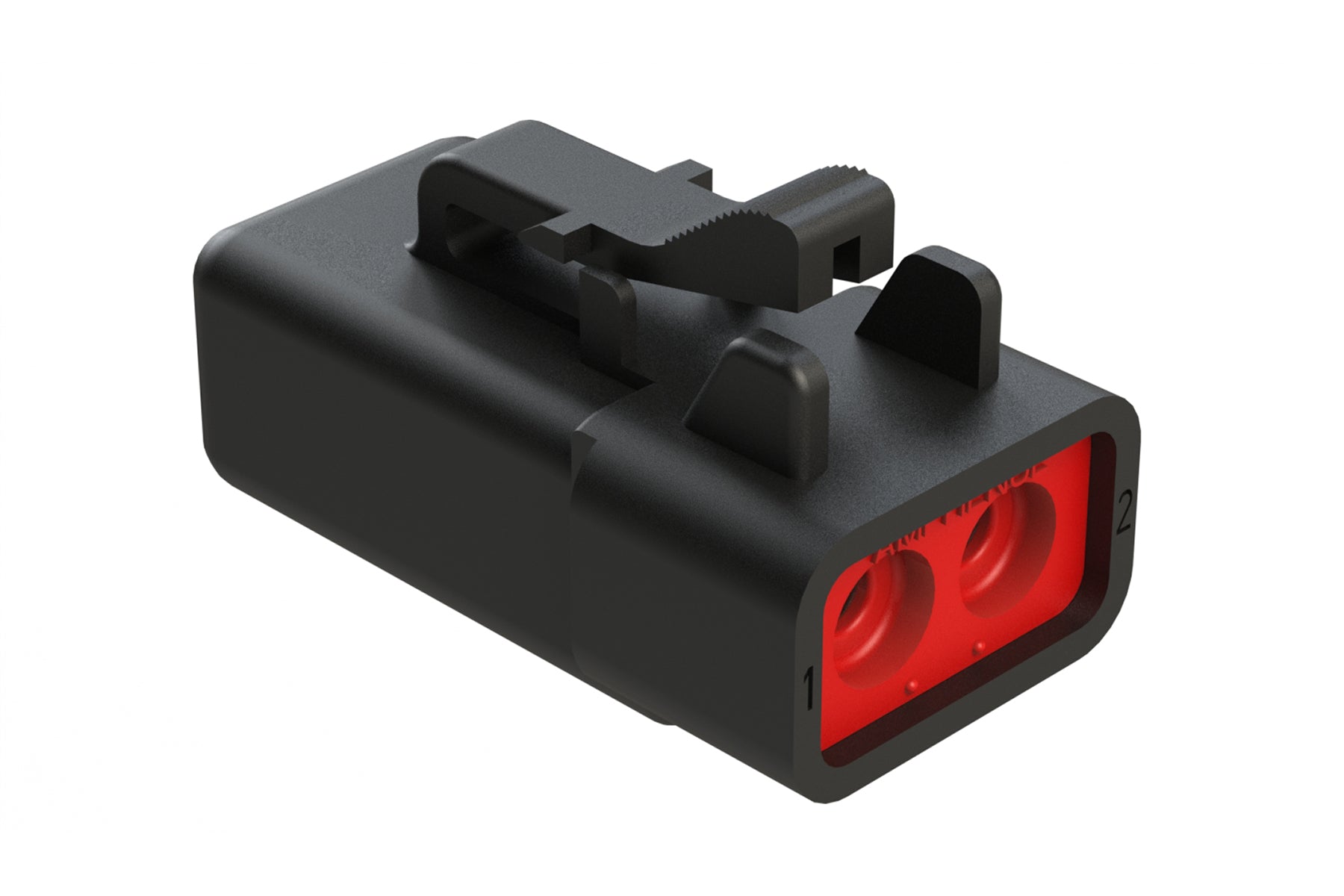

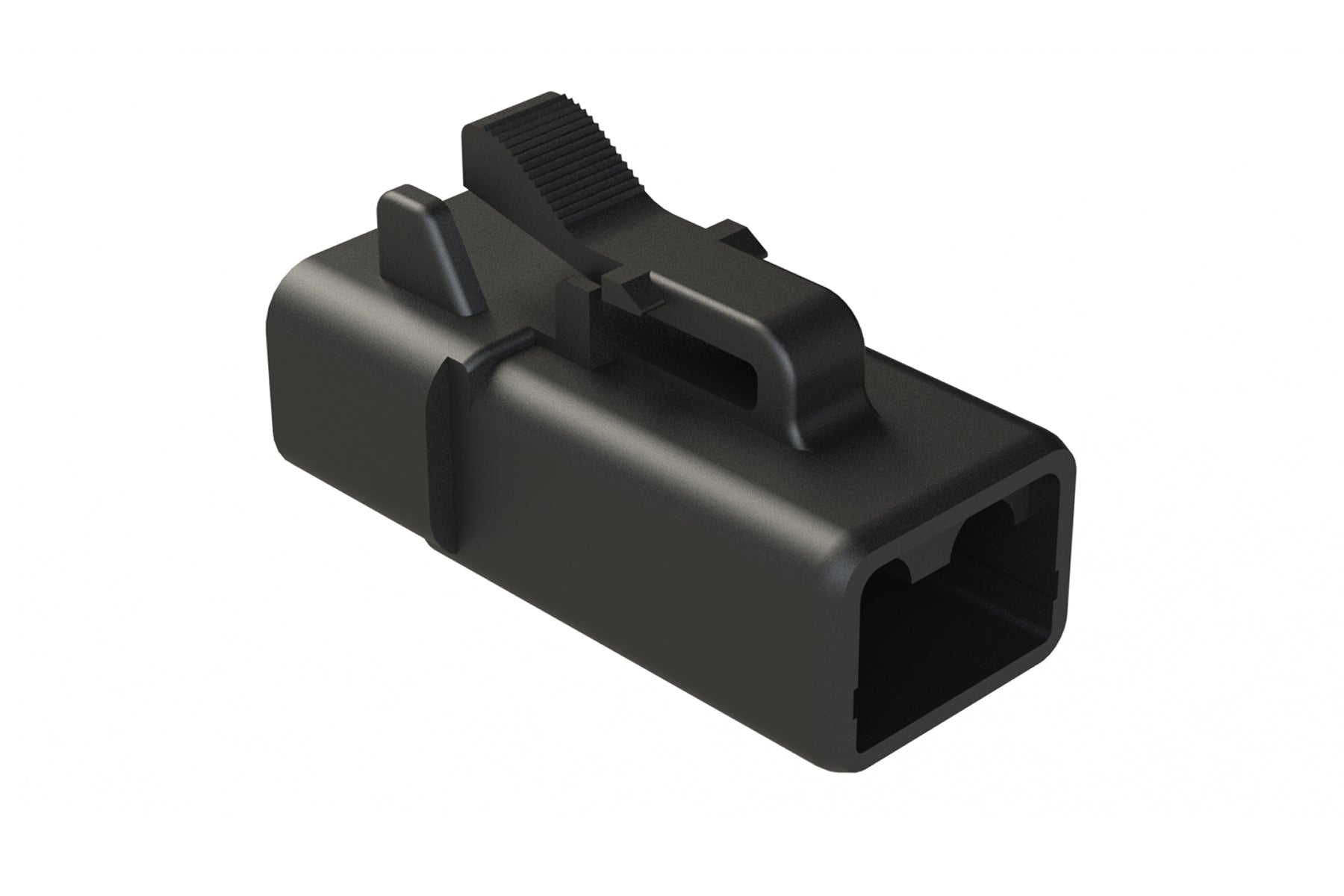

ATP06-2S-BLK 2-Way Plug, Female Connector, Black. DTP06-2S-E004
ATP06-2S-BLK 2-Way Plug, Female Connector, Black. DTP06-2S-E004
IMAGE MAY DIFFER
SKU:ATP06-2S-BLK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 2Gender: Female
Contact Size: 12
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT04-2P* Receptacle
Wedge Part: AWP-2S,AWP-2SA,AWP-2SB,AWP-2SC,AWP-2SD
Seal Diameter: 3.40mm(.134") - 4.95mm(.195")
Wire Range: 10-14 AWG
Shape: Rectangular
2-Way Plug, Female Connector, Black
