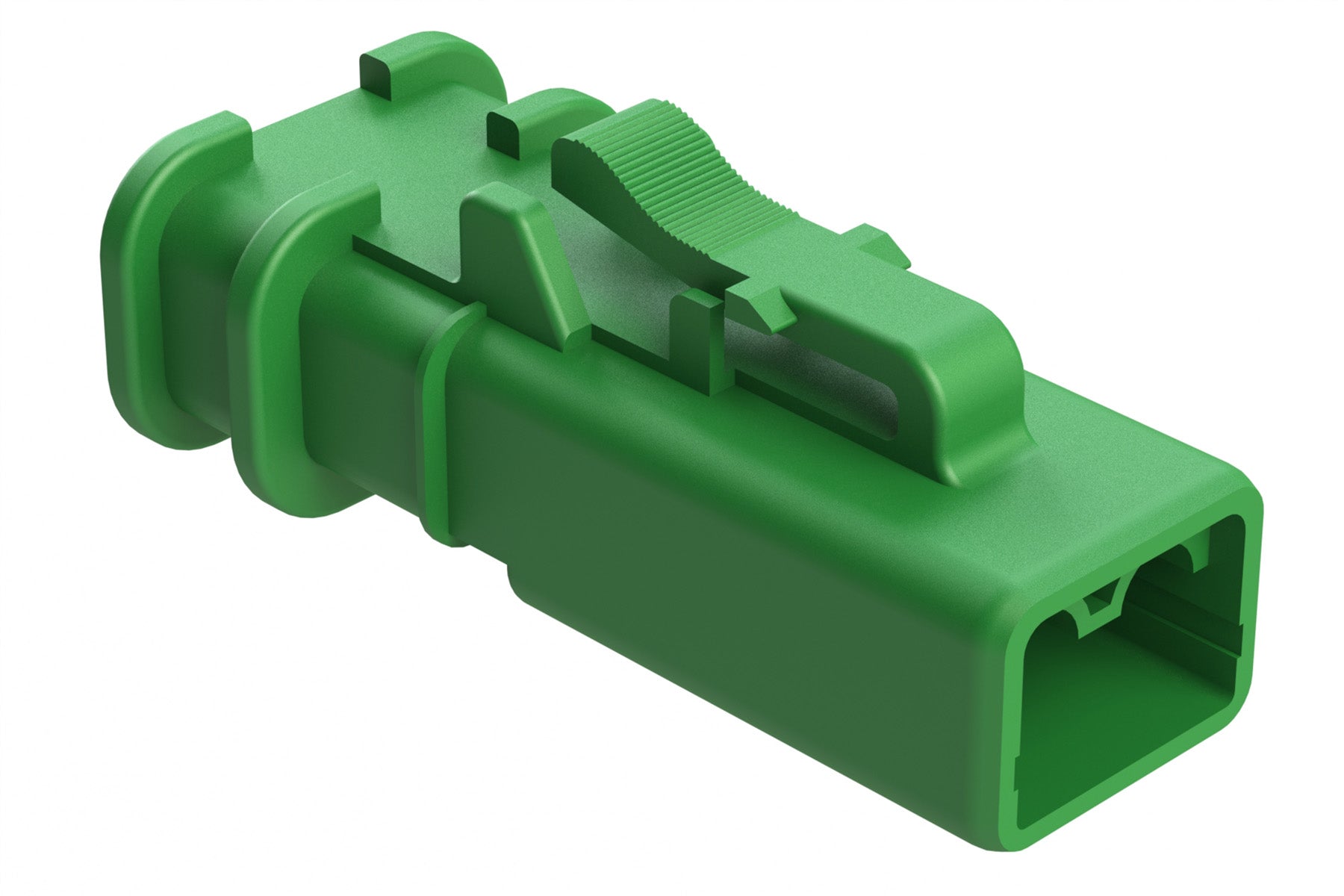

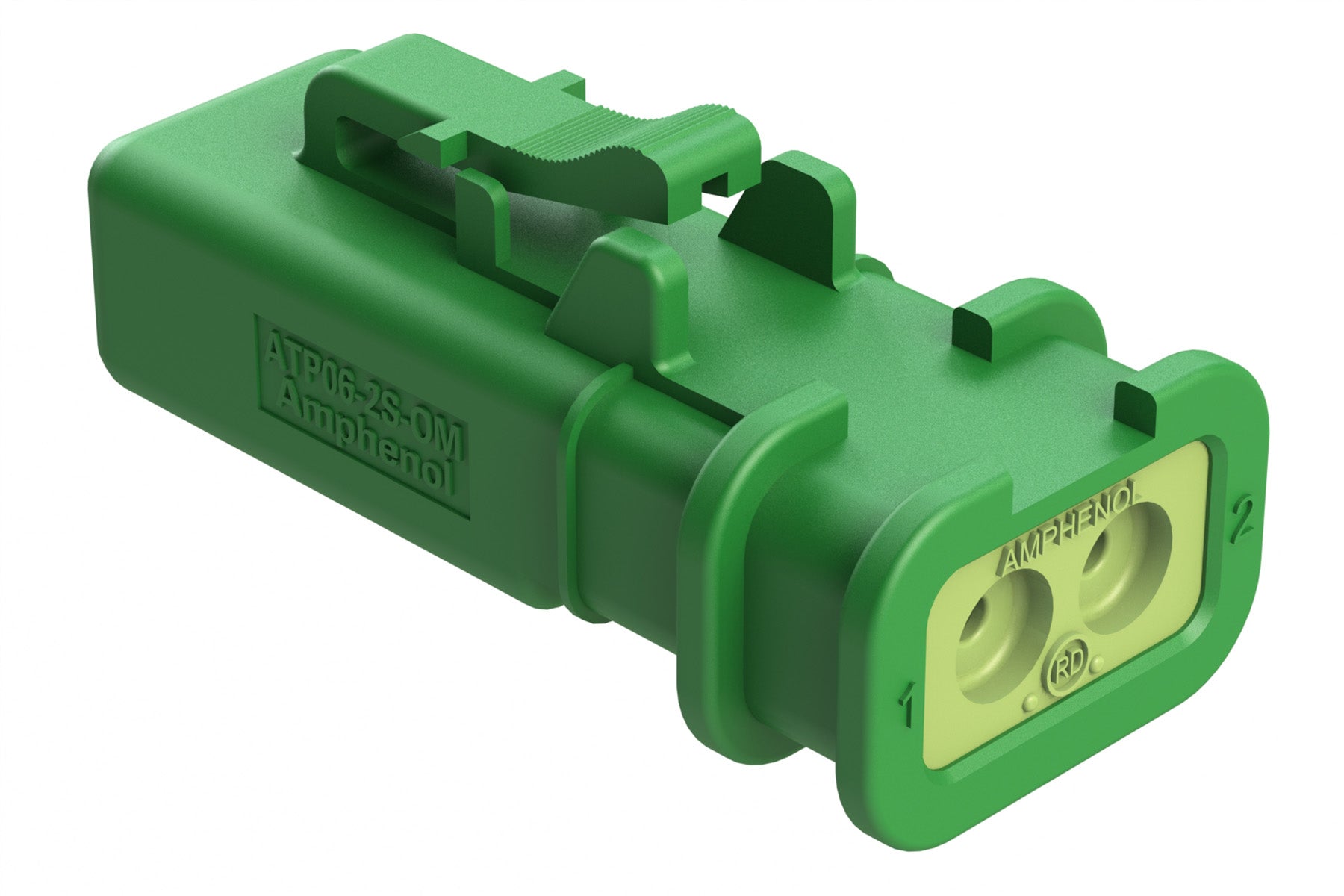

ATP06-2S-OMRDGRN 2 Position Plug, Socket, Overmold Compatible, Reduced Diameter Rear Seal, Green
ATP06-2S-OMRDGRN 2 Position Plug, Socket, Overmold Compatible, Reduced Diameter Rear Seal, Green
IMAGE MAY DIFFER
SKU:ATP06-2S-OMRDGRN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 2Gender: Female
Contact Size: 12
Colour: Green
IP Rating: IP68 (1M of water for a period of 24 hrs, in mated condition), IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP04-2P*
Wedge Part: AWP-2S,AWP-2SA,AWP-2SB,AWP-2SC,AWP-2SD
Seal Diameter: 2.46mm (.097") - 4.01mm (.158")
Wire Range: 10-14 AWG (5.0-2.0mm²)
Shape: Rectangular
2 Position Plug, Socket, Overmold Compatible, Reduced Diameter Rear Seal, Green
