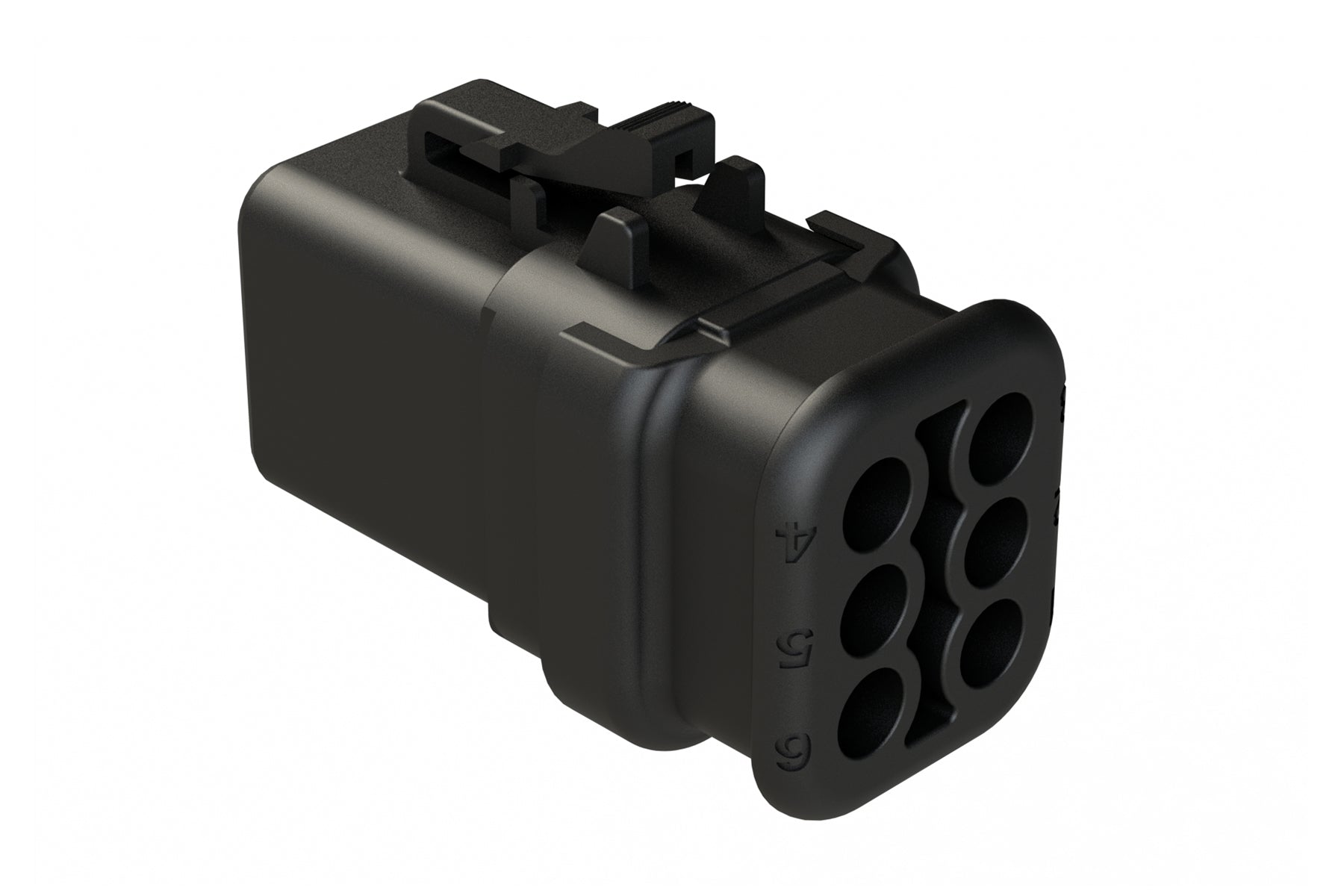

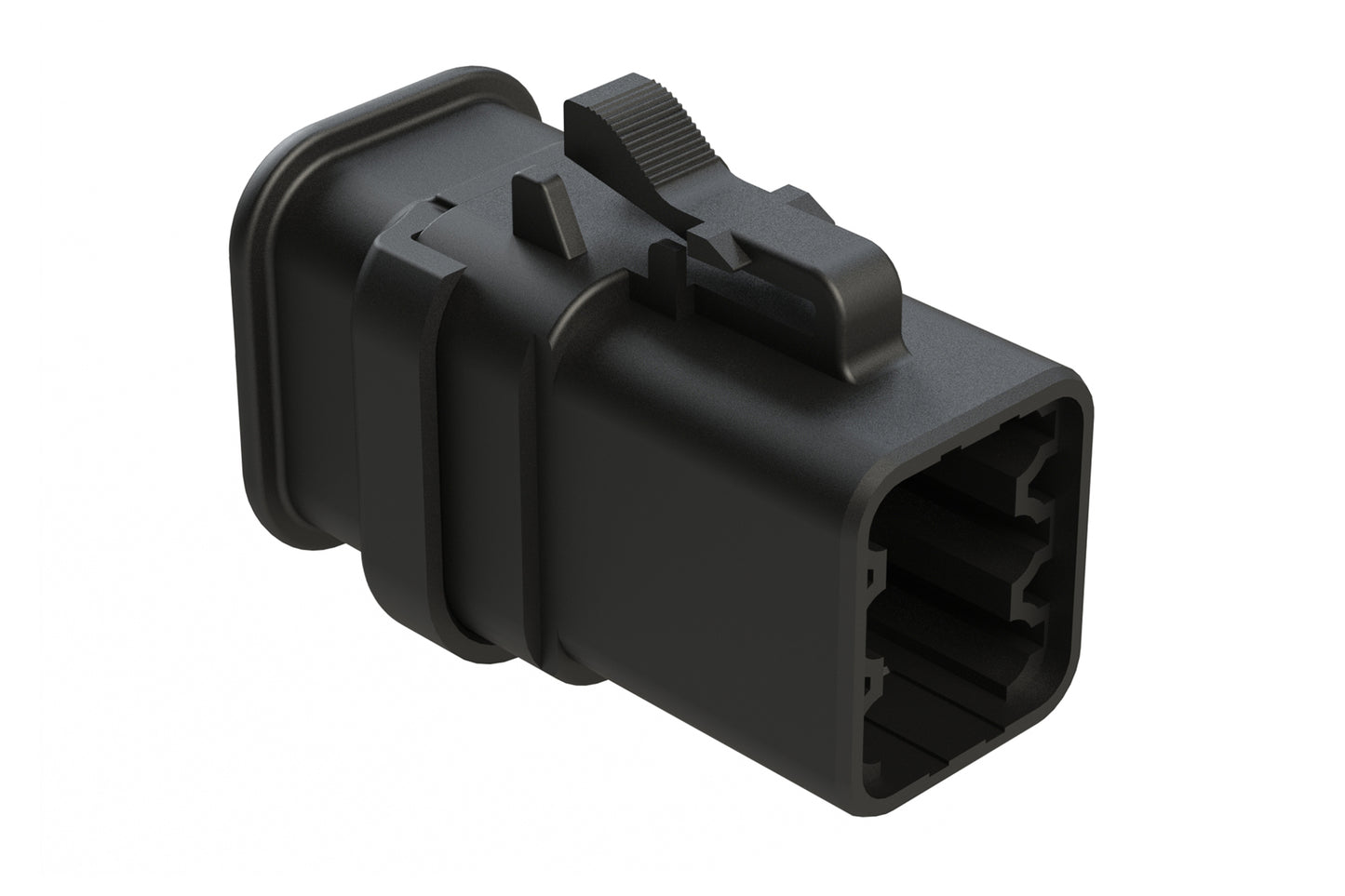

ATP06-6S-SR02BK 6 Position, Plug, Socket, SR02 Strain Relief (Reduced Diameter Seal), End Cap, Black Body
ATP06-6S-SR02BK 6 Position, Plug, Socket, SR02 Strain Relief (Reduced Diameter Seal), End Cap, Black Body
IMAGE MAY DIFFER
SKU:ATP06-6S-SR02BK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 6Gender: Female
Contact Size: 12
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP04-6P* Receptacle
Wedge Part: AWP-6S
Seal Diameter: 2.46" (.097") 4.01mm (.158")
Wire Range: 12-14AWG
Shape: Rectangular
6 Position, Plug, Socket, SR02 Strain Relief (Reduced Diameter Seal), End Cap, Black Body
