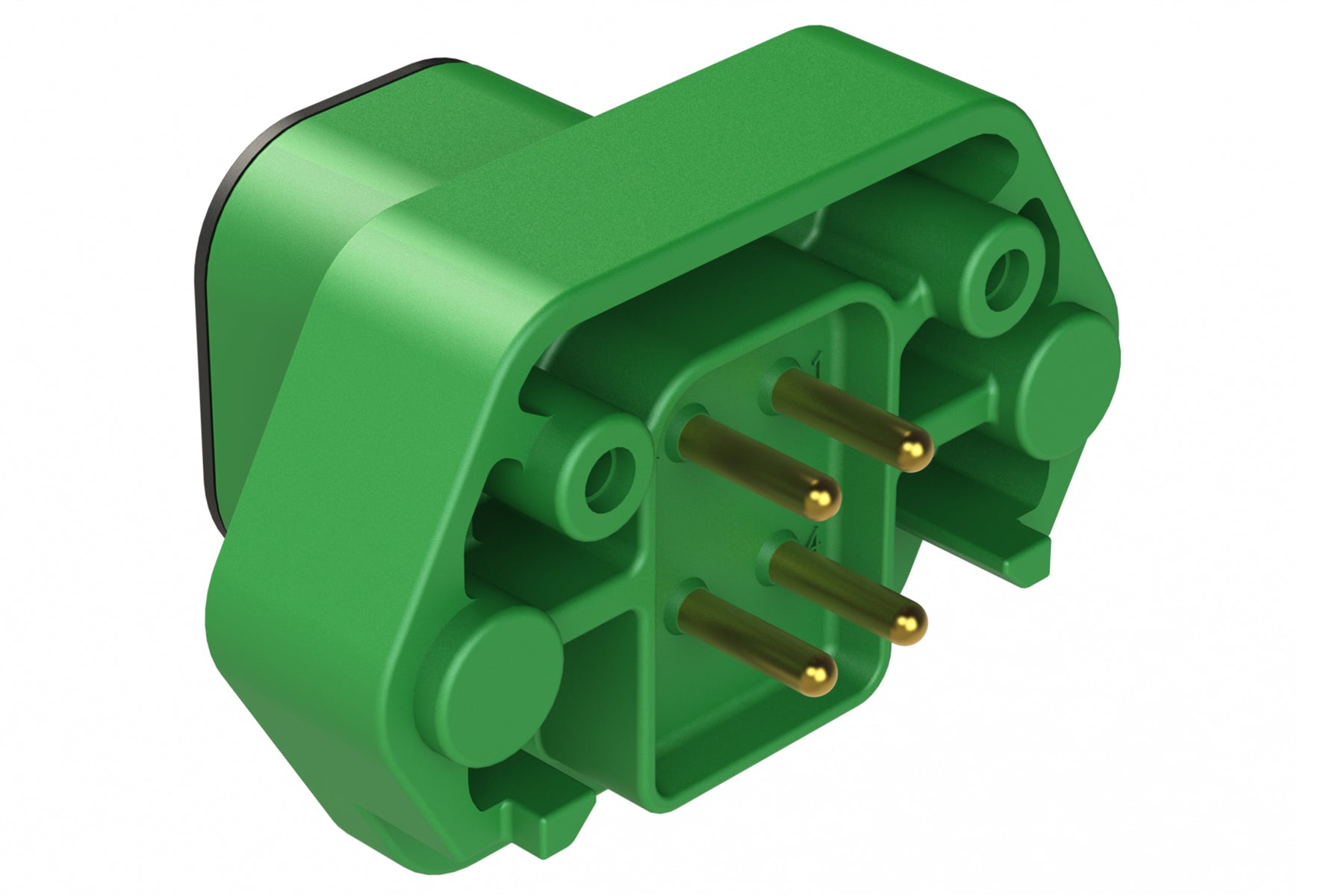

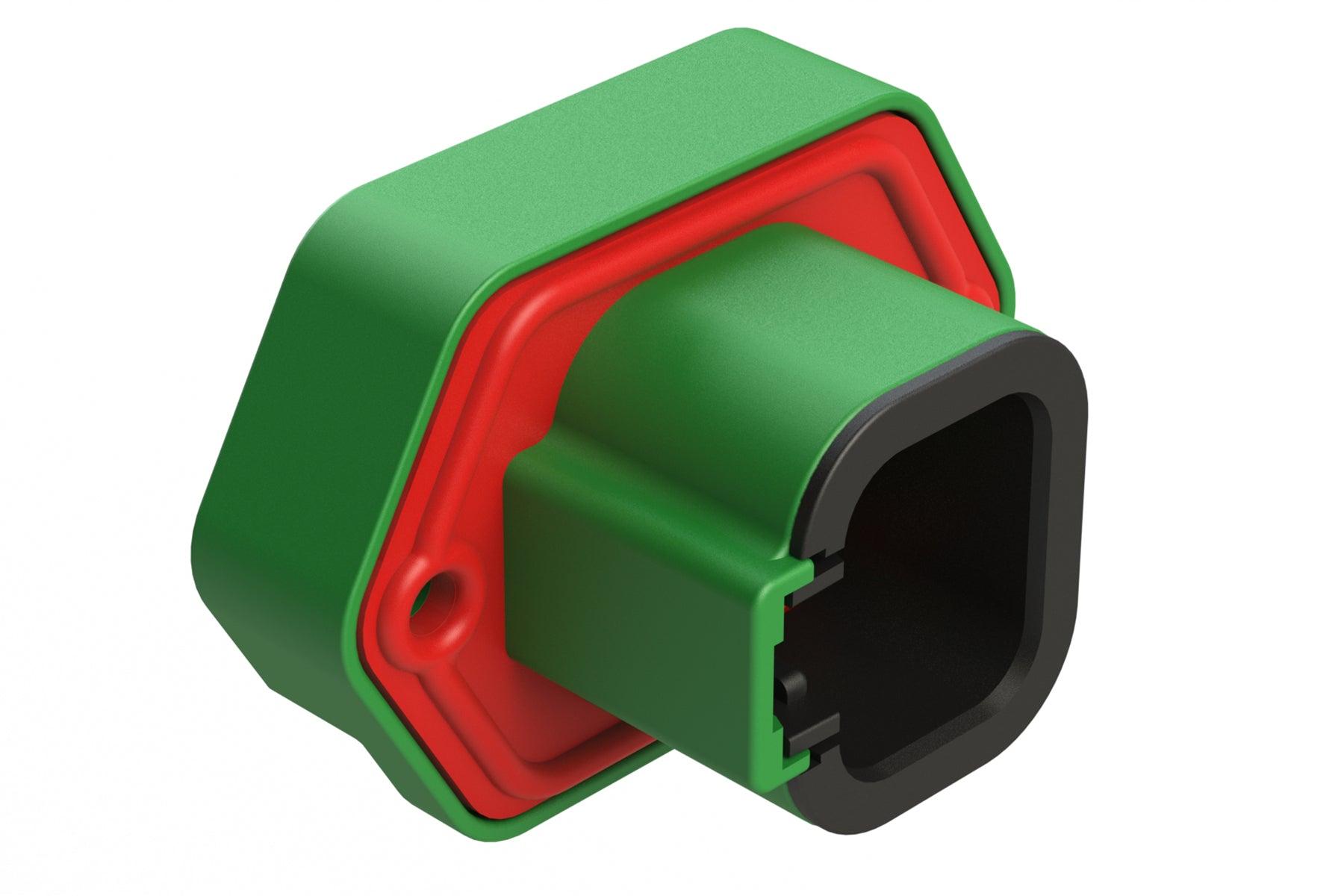

ATP15-4PC-BM01 4 Position PCB Receptacle with Flange, Pin, Gold Plated, Self-Threading, Gasket, Keyed C, Grey
ATP15-4PC-BM01 4 Position PCB Receptacle with Flange, Pin, Gold Plated, Self-Threading, Gasket, Keyed C, Grey
IMAGE MAY DIFFER
SKU:ATP15-4PC-BM01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 4Gender: Male
Contact Size: 12
Contact Material: Copper Alloy
Colour: Green
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Insulation Resistance: 1000 megohms min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: 100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATP06-4S* Plugs with A,B,C,D Key Wedgelock
Shape: Rectangular
4 Position PCB Receptacle with Flange, Pin, Gold Plated, Self-Threading, Gasket, Keyed C, Grey
