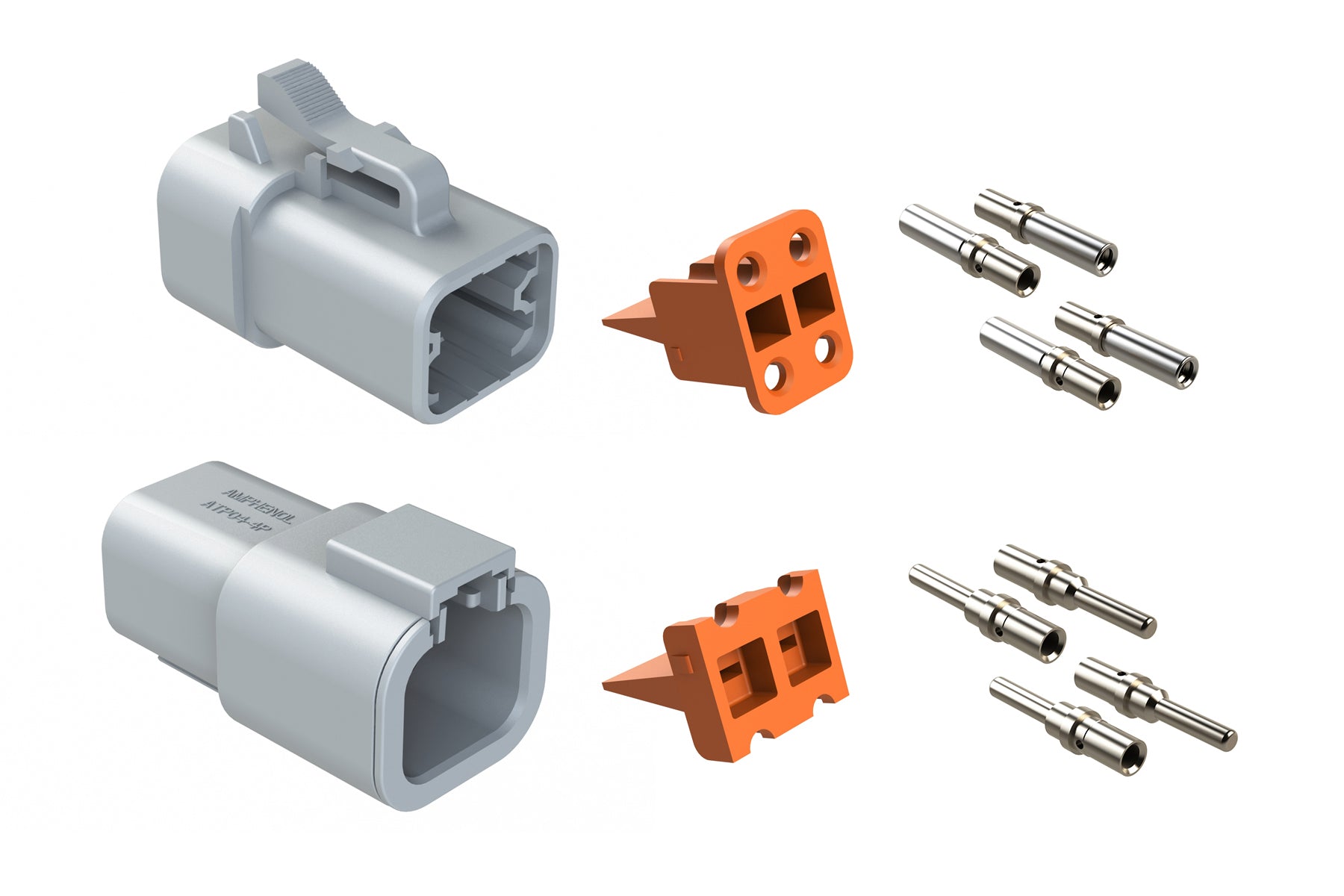

ATP4PS-CKIT 4 Pin and Socket Plug, Receptacle, Wedge and Contacts Kit
ATP4PS-CKIT 4 Pin and Socket Plug, Receptacle, Wedge and Contacts Kit
IMAGE MAY DIFFER
SKU:ATP4PS-CKIT
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 4Gender: Male & Female
Contact Size: 12
Contact Material: Copper Alloy, Nickel Plated
Colour: Grey / Orange
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: All mating parts included
Wedge Part: AWP-4S, AWP-4P included
Seal Diameter: 3.40mm (.134") - 4.95mm (.195")
Wire Range: 10-14 AWG
Shape: Rectangular
4 Pin and Socket Plug, Receptacle, Wedge and Contacts Kit
