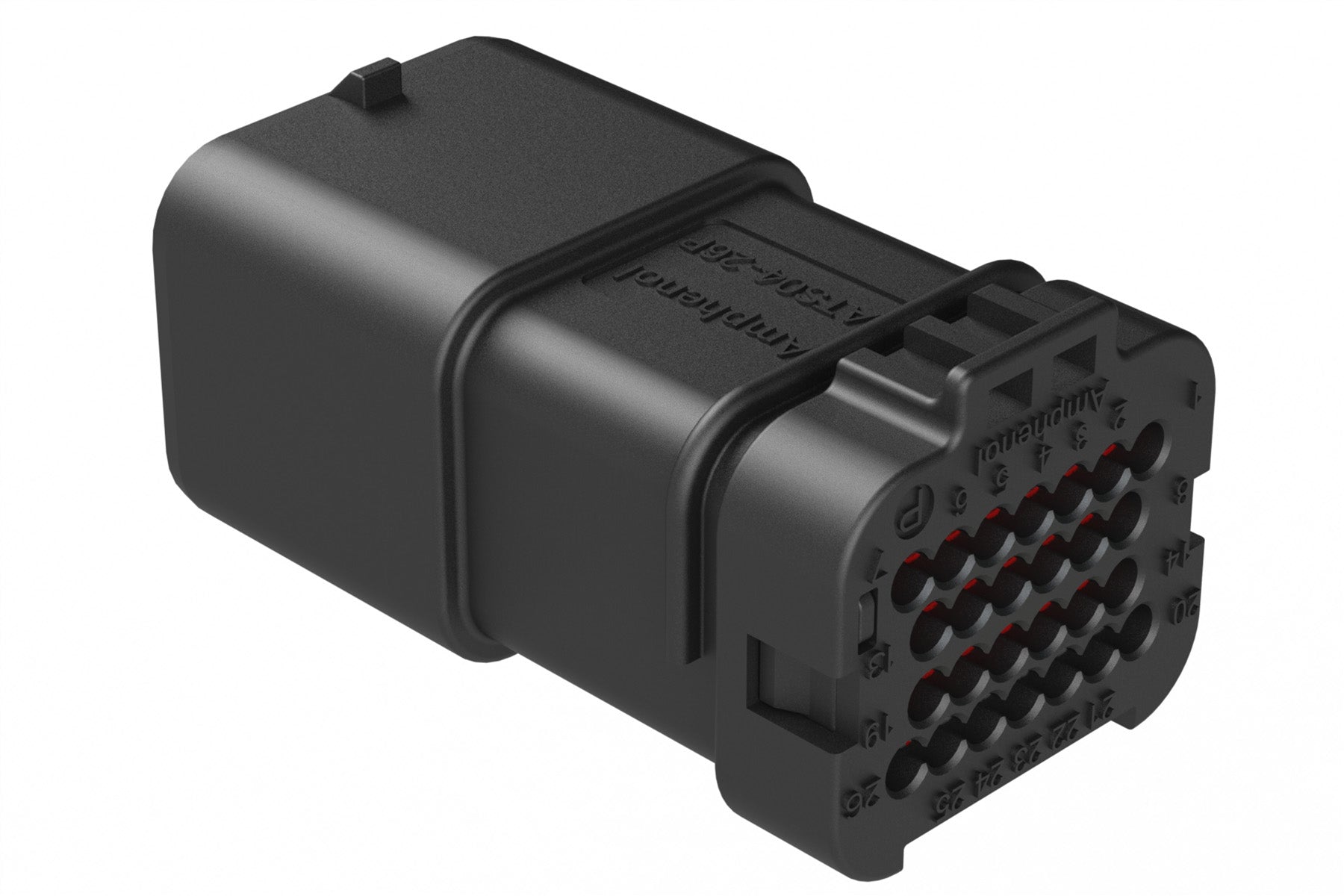

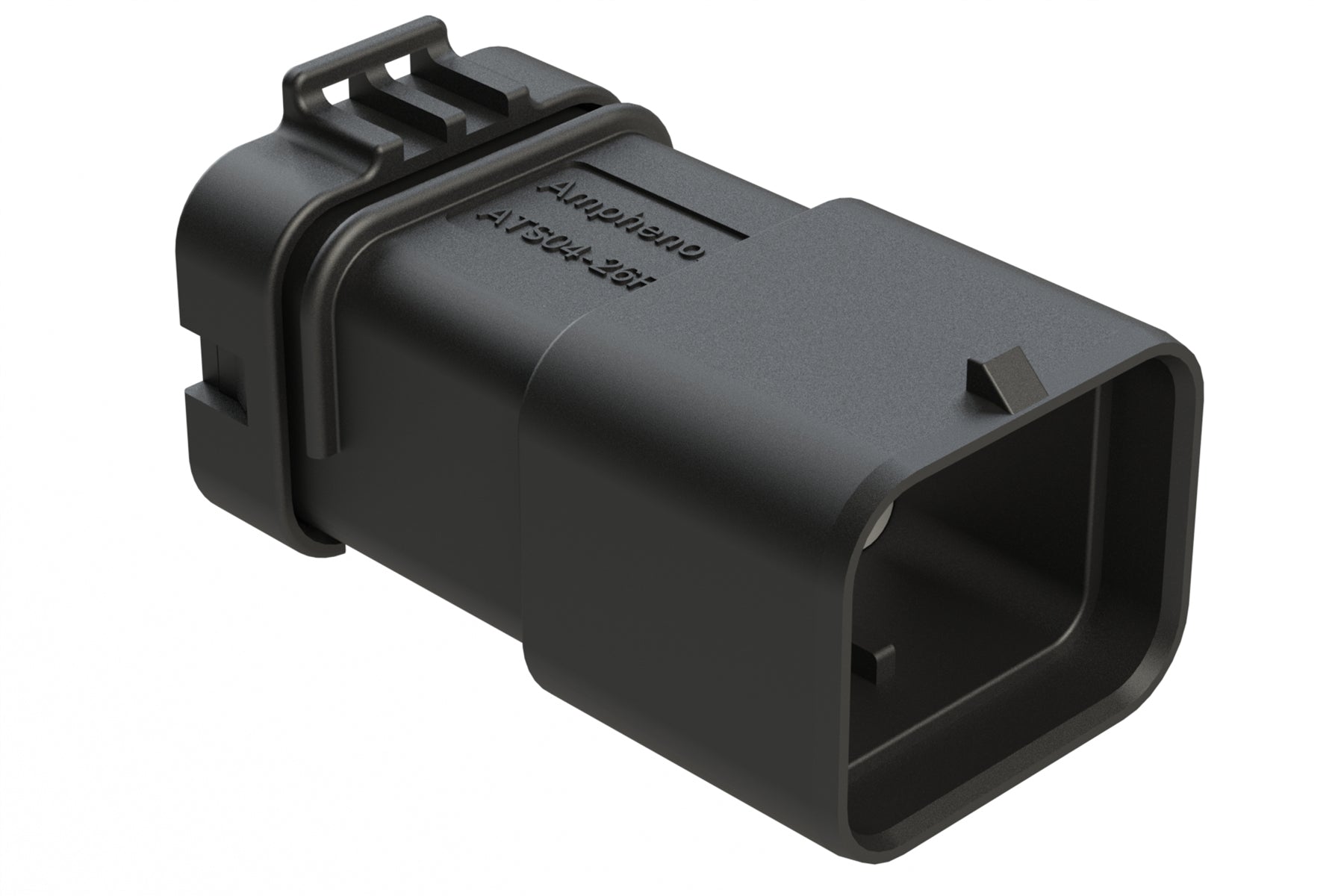

ATS04-26PA 26 Position In-line Receptacle, Pin, Keyed A, Contact Size 20, Single Latch, End Cap, Black
ATS04-26PA 26 Position In-line Receptacle, Pin, Keyed A, Contact Size 20, Single Latch, End Cap, Black
IMAGE MAY DIFFER
SKU:ATS04-26PA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 26Gender: Male
Contact Size: 20
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55℃ to +125℃
Mating Cycle Durability: >500
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATS06-26SA*
Seal Diameter: 1.12 mm (.044") - 2.31 mm (.091")
Wire Range: 18-30 AWG
Shape: Rectangular
26 Position In-line Receptacle, Pin, Keyed A, Contact Size 20, Single Latch, End Cap, Black
