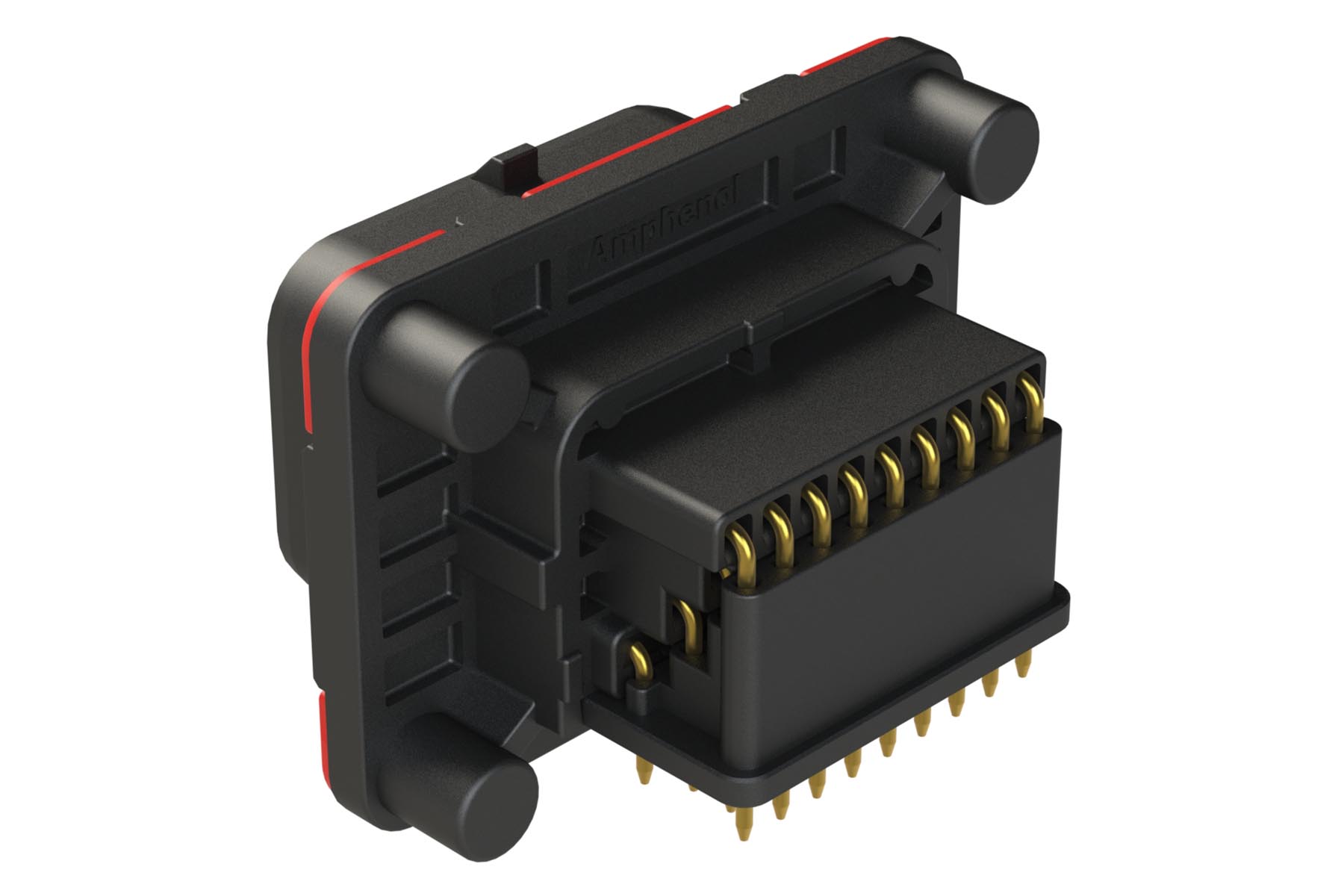

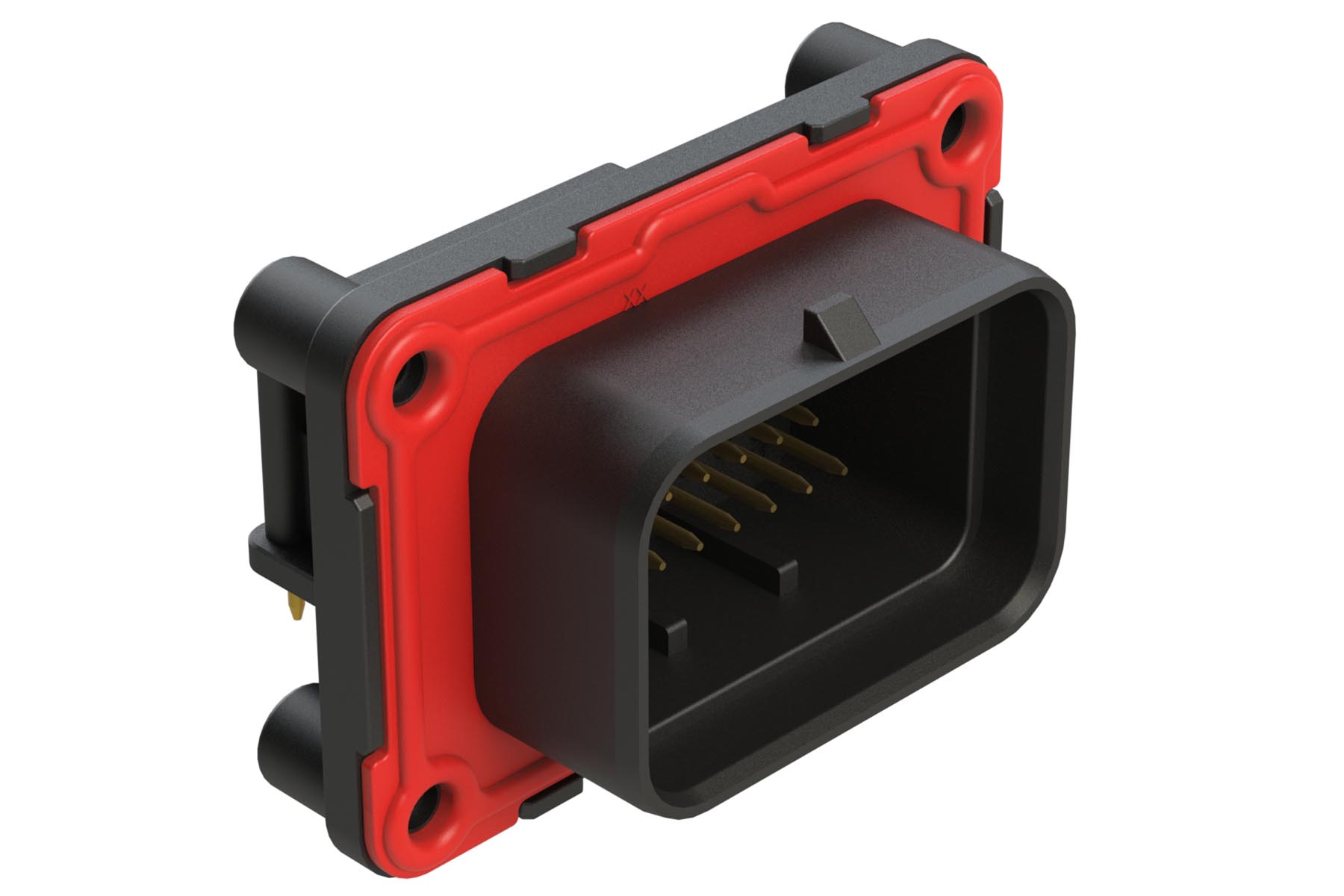

ATS13-34PB2-BM01 34 Position PCB Receptacle with Sealed Flange, Pin, Right Angle, Contact Size 20, Double Latch, Self-Threading, Keyed B, Black
ATS13-34PB2-BM01 34 Position PCB Receptacle with Sealed Flange, Pin, Right Angle, Contact Size 20, Double Latch, Self-Threading, Keyed B, Black
IMAGE MAY DIFFER
SKU:ATS13-34PB2-BM01
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 34Gender: Male
Contact Size: 20
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: 500
Housing Material: Thermoplastic
Seal Material: Silicon Rubber
Mating Part: ATS06-34SB2-* PLUG
Wire Range: 18-28 AWG
Shape: Rectangular
34 Position PCB Receptacle with Sealed Flange, Pin, Right Angle, Contact Size 20, Double Latch, Self-Threading, Keyed B, Black
