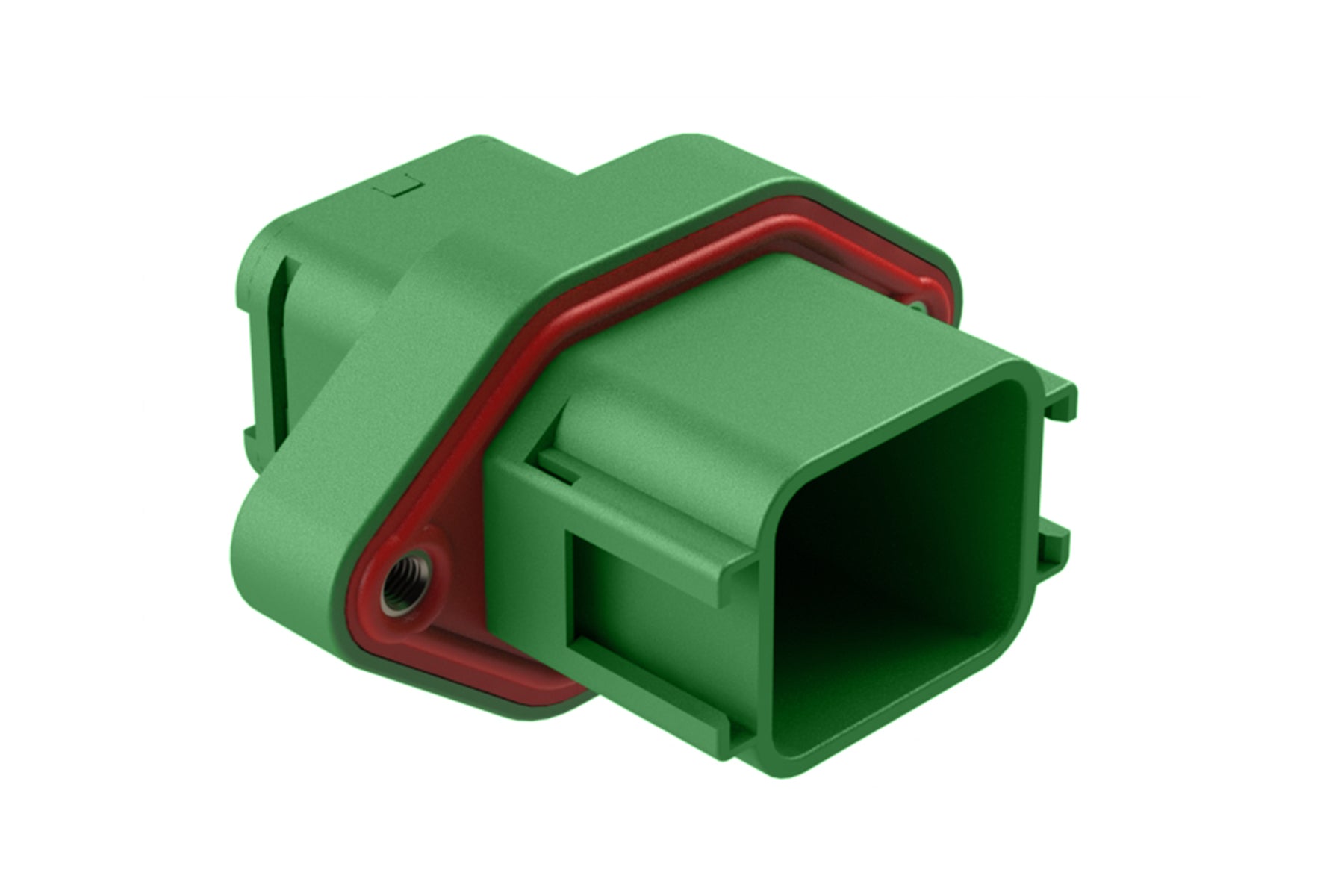

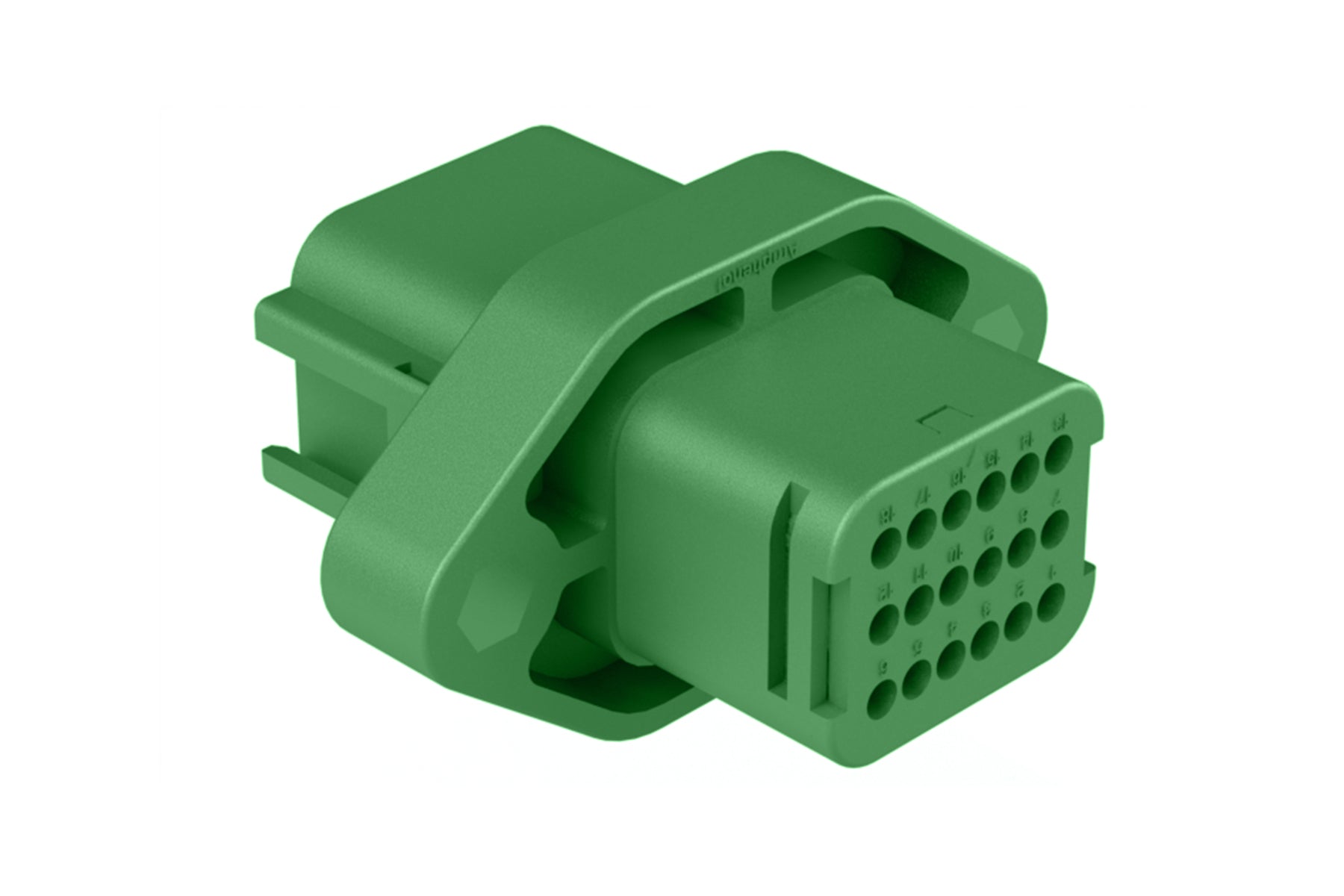

ATV02-18PC 18 position flange mount receptacle, Size 16 contact, key C. DTV02-18PC
ATV02-18PC 18 position flange mount receptacle, Size 16 contact, key C. DTV02-18PC
IMAGE MAY DIFFER
SKU:ATV02-18PC
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 18Gender: Male
Contact Size: 16
Colour: Green
IP Rating: IP68 (in mated condition)
Insulation Resistance: 1000 MEGOHMS MIN @ 25°C.
Operating Temperature: - 55C° to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ATV06-18SC
Wedge Part: AWV-18P
Seal Diameter: 2.23mm (.08") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular
18 position flange mount receptacle, Size 16 contact, key C
