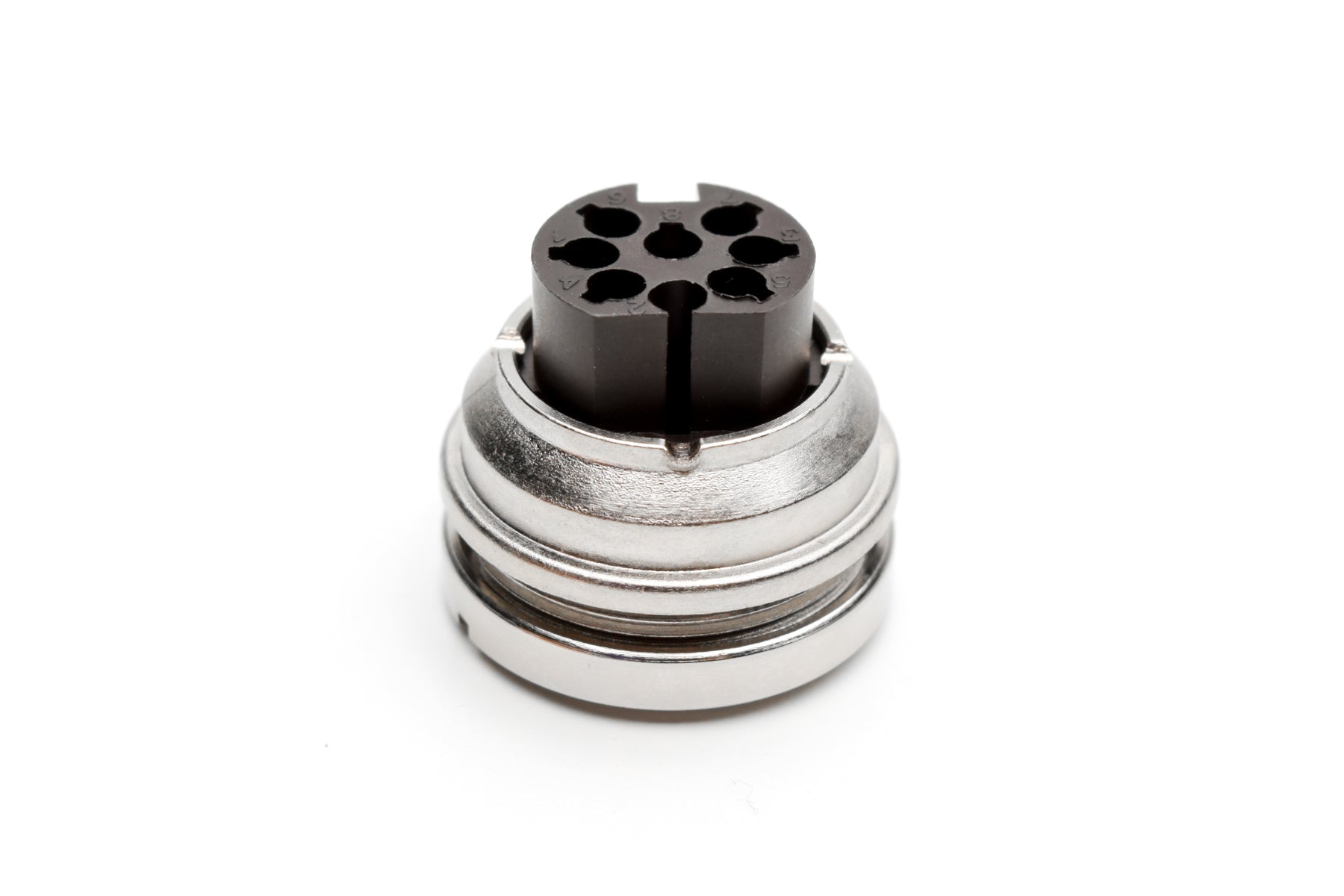

C091 11G008 000 2 Rear mounting female metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts sold separately.
C091 11G008 000 2 Rear mounting female metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts sold separately.
IMAGE MAY DIFFER
SKU:C09111G0080002
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetSpecifications
Contacts: 8
Current Rating: 7A
IP Rating: IP67/ 65 (in mated condition)
Termination: Crimp
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: C091 11W008 000 2, C091 11C008 000 2, C091 11S008 000 2, C091 11H008 000 2
Shape: Circular
Rear mounting female metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts sold separately.
