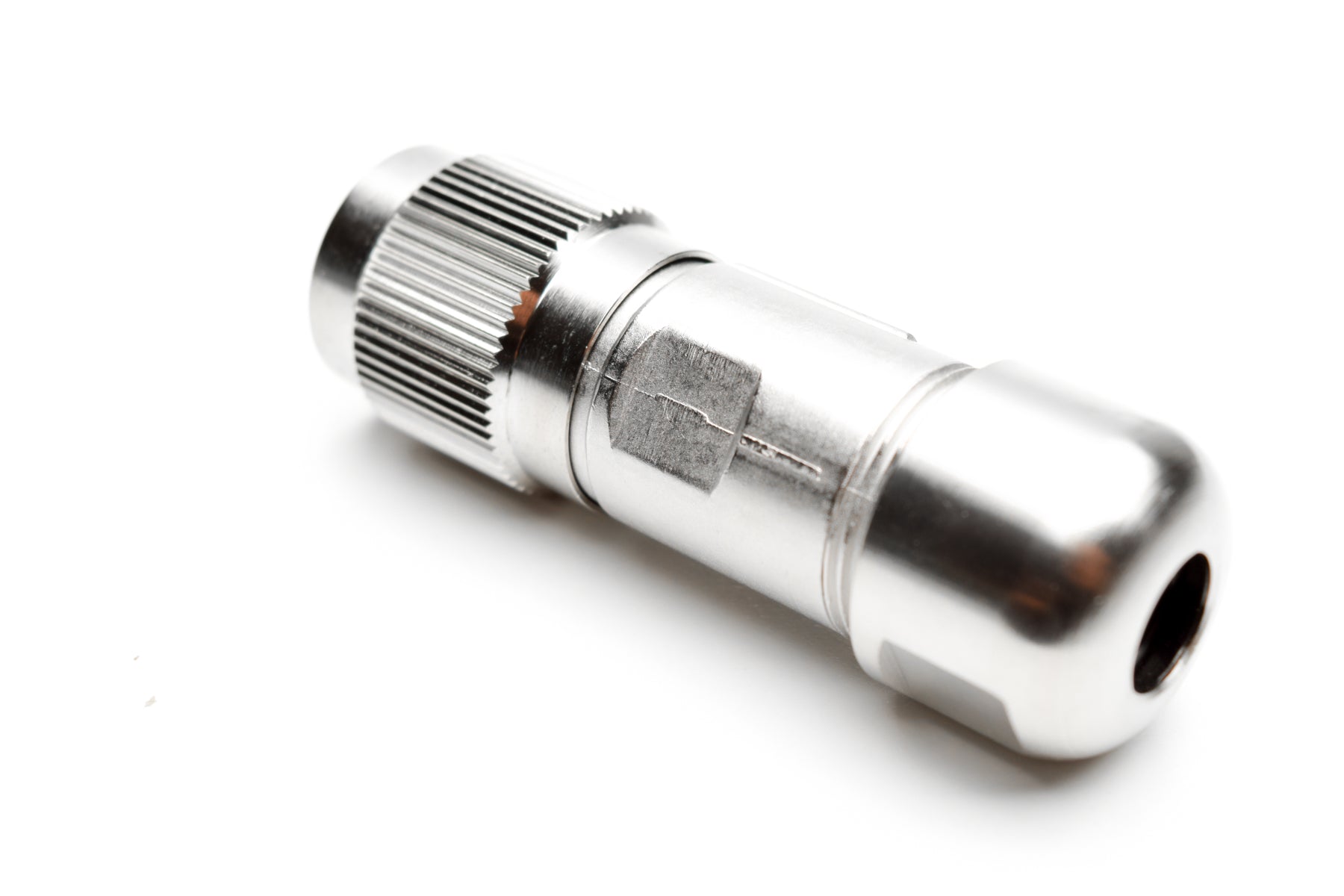

C091 31D008 100 4 Female Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Fully intermateable with C091D connectors.
C091 31D008 100 4 Female Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Fully intermateable with C091D connectors.
IMAGE MAY DIFFER
SKU:C09131D0081004
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetSpecifications
Contacts: 8
Current Rating: 7A
IP Rating: IP68 (in mated condition)
Contact Plating: Silver
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Zinc die cast, nickel plated
Seal Material: Chloroprene
Mating Part: C09131C0081002,C09131H0081004,C09131H0081014,C09131H0081024,C09131S0081002,C09131W0081002
Shape: circular
Female Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Fully intermateable with C091D connectors.
