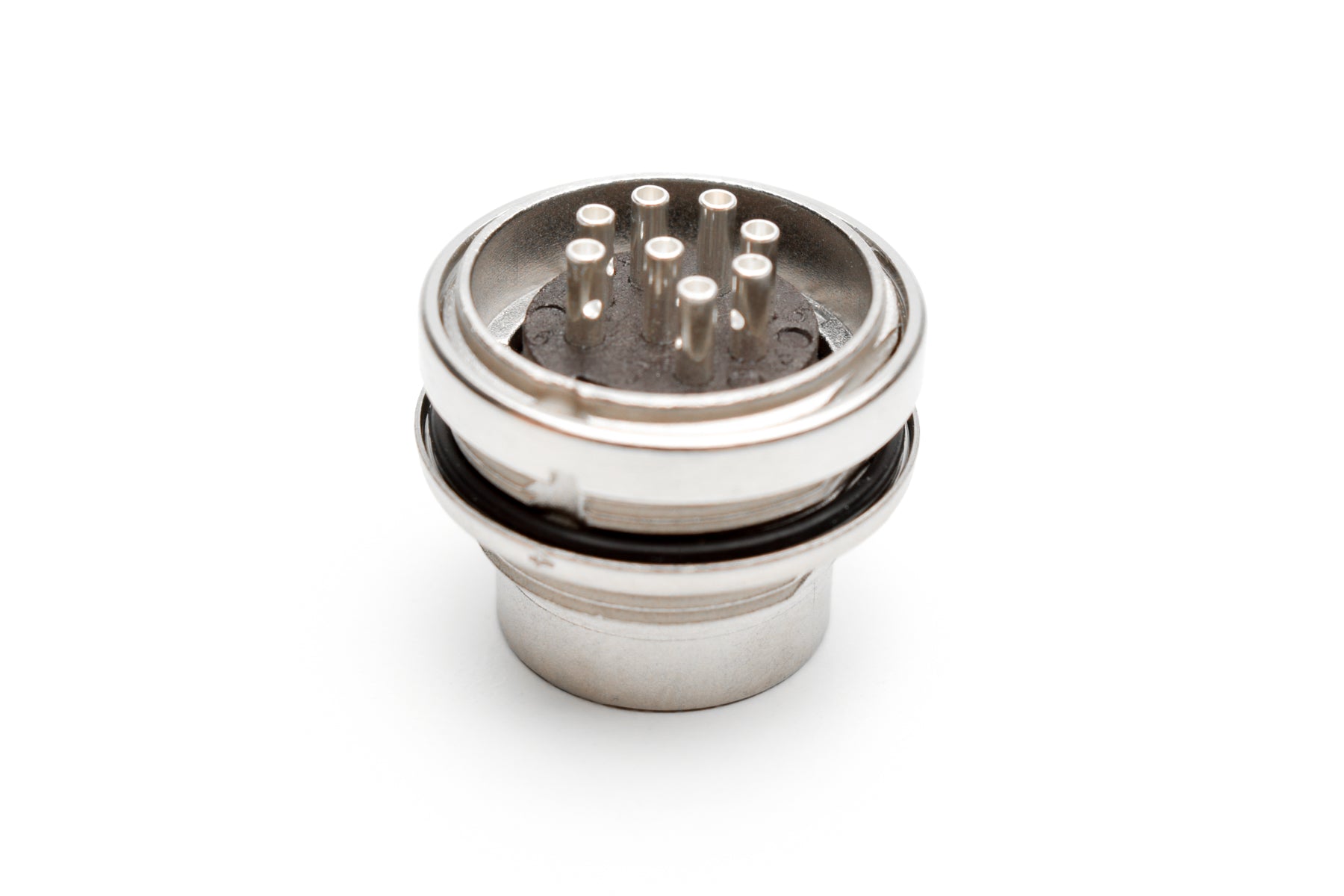

C091 31W008 100 2 Front mounting male metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included.
C091 31W008 100 2 Front mounting male metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included.
IMAGE MAY DIFFER
SKU:C09131W0081002
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetSpecifications
Contacts: 8
Current Rating: 7A
IP Rating: IP67/ 65 (in mated condition)
Contact Plating: Silver
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: C09131D0081002,C09131D0081004,C09131D0081012,C09131D0081014,C09131D0081024,C09131F0081002,C09131F0081012
Shape: circular
Front mounting male metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included.
