ARB Series

Rectangular, Plastic, Heavy-Duty Connectors for Bulkhead Applications

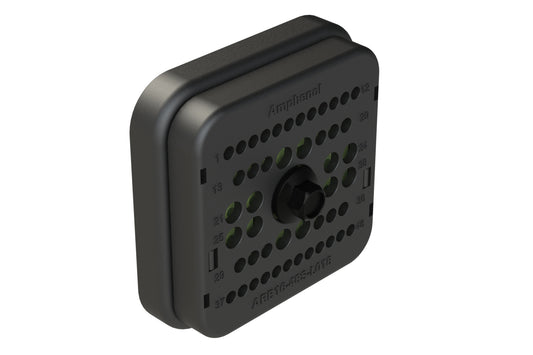

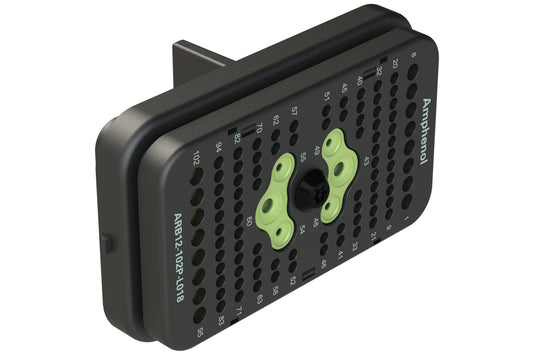

Available in 48 and 102 position

Amphenol Sine Systems’ ARB Series™ Connectors are an IP68 and IP69K (in mated condition) rated, rectangular, thermoplastic, heavy-duty, environmentally-sealed, connector series where high pin-counts are required in situations with controlled and/or uncontrolled environmental conditions such as bulkhead applications. The interface flange with receptacle retaining clip, jackscrew (plug), and threaded insert (receptacle) are all utilized to ensure a secure mated assembly. Our ARB Series™ Connectors have been developed to be comparable with all other existing standard products industry-wide.

Our ARB Series™ connectors utilize A Series™ Contacts.  See individual datasheets for required tooling and contact details.

Key Features

  • IP68 and IP69K (in mated condition)
  • Available in A, B, C and D Keying Options
  • Utilize A Series™ Contacts
  • Interface Flange w Receptacle Retaining Clip, Jackscrew (Plug), and Threaded Insert (Receptacle) for secure mating of complete assembly
  • Comparable with existing standard products industry-wide

Applications: Transportation, Off-Highway, Heavy Equipment, Agricultural, Automotive, Alternate Energy, Marine and other demanding interconnect architectures.
