Collection: ATM Series

Available in 2, 3, 4, 6, 8 and 12 positions

Amphenol Sine Systems ATM Series™ Connectors, specifically designed for smaller AWG applications, are designed as an IP68 and IP69K rated (in mated condition), high-performance, cost-effective, thermoplastic solution with superior environmental seals, seal retention capabilities and are designed for use with 16-22AWG with size 20 contacts handling up to 7.5A. Also available in our BoardLock™ and PanelMate™ Series of connectors. In addition, all of our ATM Series™ connectors have been developed to be comparable with all other existing standard products industry-wide.

Features

• 16-22AWG, 7.5A, Size 20
• Thermoplastic housing with integrated latch for mating
• High-temperature silicone seals provide superior sealing
• Wedgelocks ensure proper contact alignment & retention
• Comparable with existing standard products industry-wide

Applications: Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy, as well as other demanding interconnect applications

Additional ATM Series™ options:

ATMH Series™ - High Temperature option which features an increased operating temperature range of -55°C to 150°C, ideal for “under the hood” applications, along with an IP68/IP69K (in mated condition) rating.

ATM Series™ SF01 (Snap-Fit Caps) options which features an integrated Snap-Fit Cap enhancement that ensures rear seal stability under uncontrolled, harsh environmental conditions, along with an IP68/69K (in mated condition) rating.

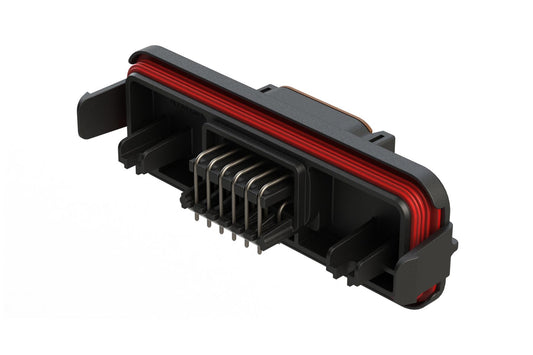

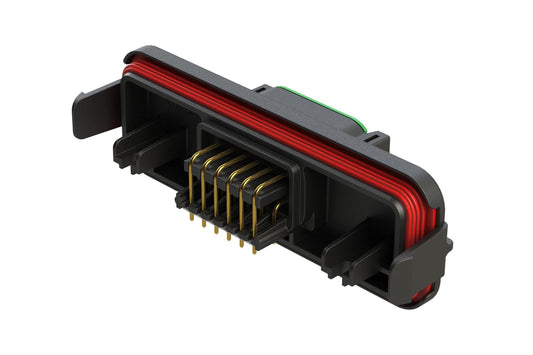

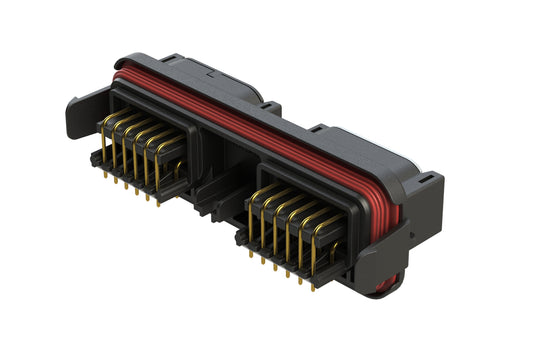

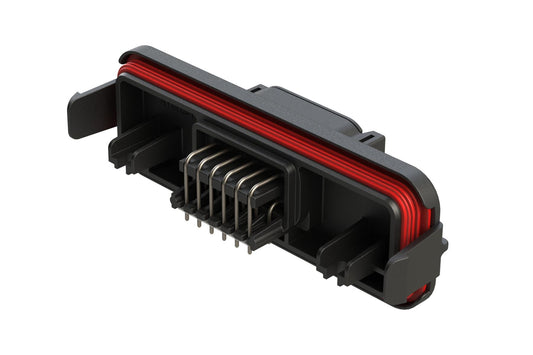

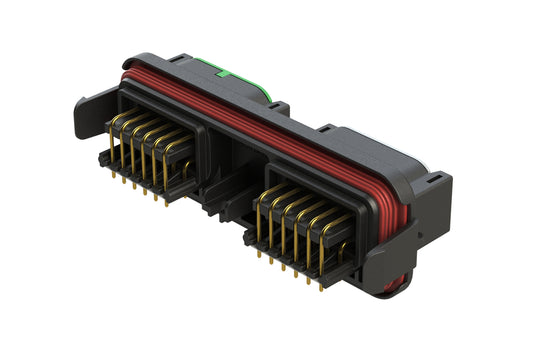

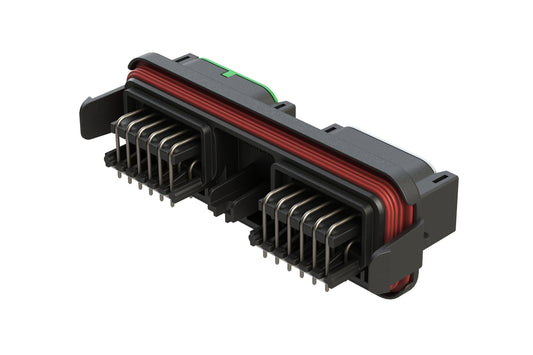

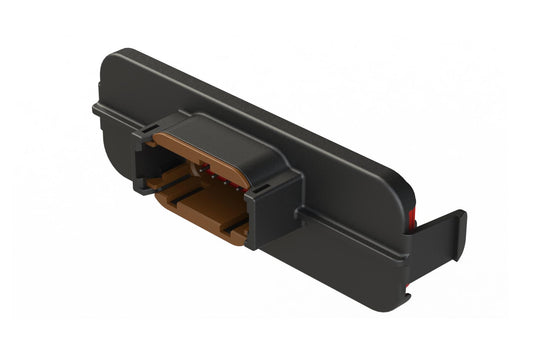

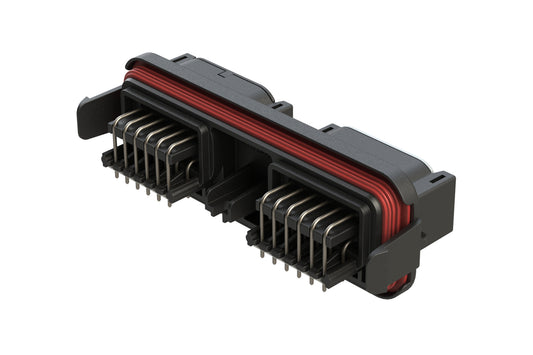

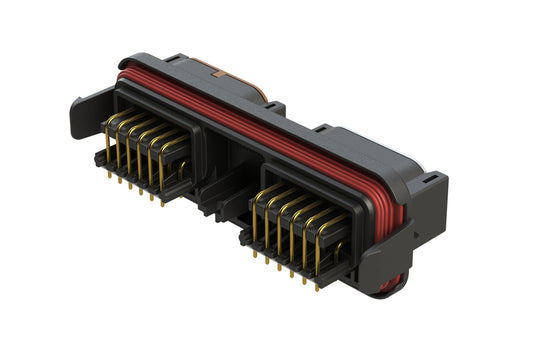

BoardLock™ ATM options, featuring flanged, 90° right angle or 180° straight, wire-to-board functionality, along with an IP67 rating (in mated condition).
