MagnaMate ATHP Series

Available in 1 and 2 positions

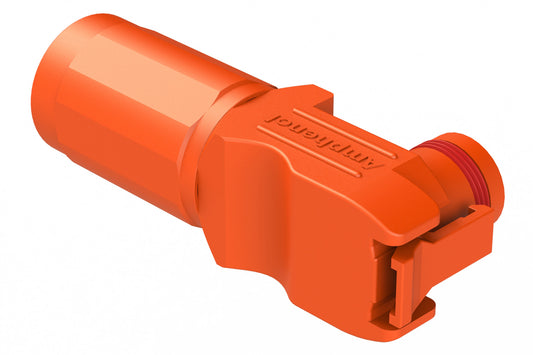

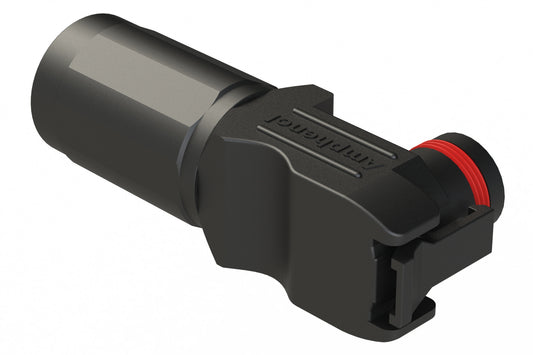

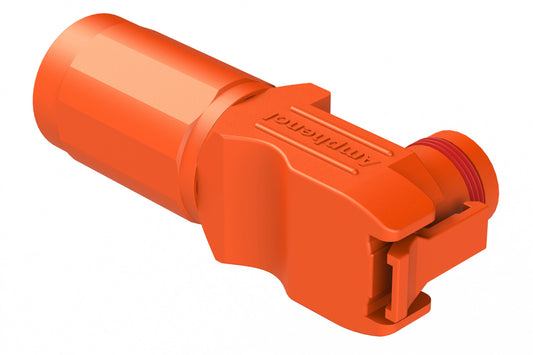

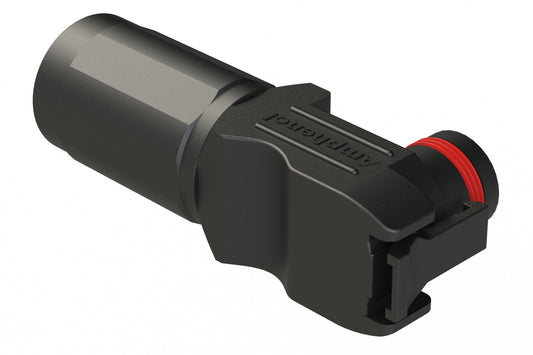

Amphenol Sine Systems’ MagnaMate™ ATHP Series is a rugged, thermoplastic, power connector series featuring the surety and high-performance contact technology of RADSOK®. Designed for various “xEV” applications, MagnaMate™ ATHP is IP67 rated (mated) and available in single or two-pole housings with rated current from 20A to 180A. MagnaMate™ ATHP includes optional integrated HVIL safety features and EMI shielding protection which can withstand temperatures ranging from -40°C to +130°C.

Features

  • 1000 Volts

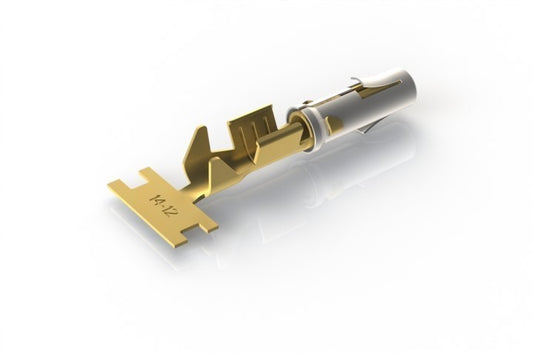

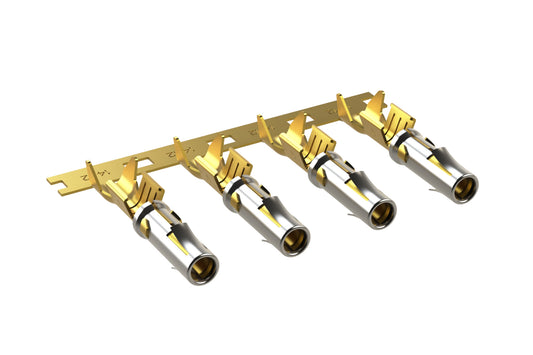

  • 8mm (Max 180A) or 2.5mm (Max 35A) Power contact
  • Features Radsok® Technology
  • Heavy-Duty Thermoplastic
  • Able to withstand extreme vibration and mechanical shock
  • Operating Temperature Range of -40°C to 130°C
  • Inline or Panel Mount

Applications: Inverters, Power Electric Box, Junction Box, xEV Battery, Power Converters, Hybrid Electric Vehicles, Heavy Equipment, Electrification, 2 and 3-Phase Motors, Starter Generators, Process Control/Automation, Electrical Air Condition, Battery Charger, Electrical Heater

Assembly instructions: MagnaMate ATHP Assembly Instructions

75 products
