Collection: MagnaMate ATHP Series

Available in 1 and 2 positions

Amphenol Sine Systems’ MagnaMate™ ATHP Series is a rugged, thermoplastic, power connector series featuring the surety and high-performance contact technology of RADSOK®. Designed for various “xEV” applications, MagnaMate™ ATHP is IP67 rated (mated) and available in single or two-pole housings with rated current from 20A to 180A. MagnaMate™ ATHP includes optional integrated HVIL safety features and EMI shielding protection which can withstand temperatures ranging from -40°C to +130°C.

Features

1000 Volts
8mm (Max 180A) or 2.5mm (Max 35A) Power contact
Features Radsok® Technology
Heavy-Duty Thermoplastic
Able to withstand extreme vibration and mechanical shock
Operating Temperature Range of -40°C to 130°C
Inline or Panel Mount

Applications: Inverters, Power Electric Box, Junction Box, xEV Battery, Power Converters, Hybrid Electric Vehicles, Heavy Equipment, Electrification, 2 and 3-Phase Motors, Starter Generators, Process Control/Automation, Electrical Air Condition, Battery Charger, Electrical Heater

Assembly instructions: MagnaMate ATHP Assembly Instructions

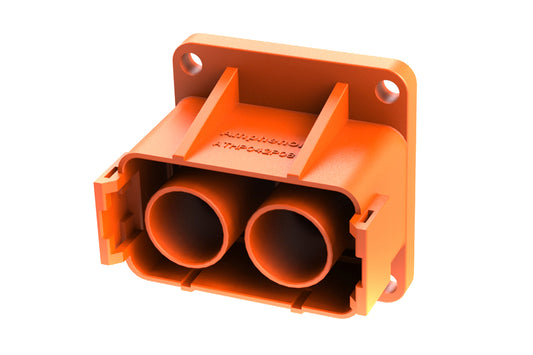

ATHP042P08NL16-50 2 position Standard Receptacle with High Voltage Interlock Loop, 8mm Power Contact, 180 A, 35mm² Power Cable, #16 50mm Signal Contact. Contacts included

ATHP042P08NL16-50 2 position Standard Receptacle with High Voltage Interlock Loop, 8mm Power Contact, 180 A, 35mm² Power Cable, #16 50mm Signal Contact. Contacts included

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

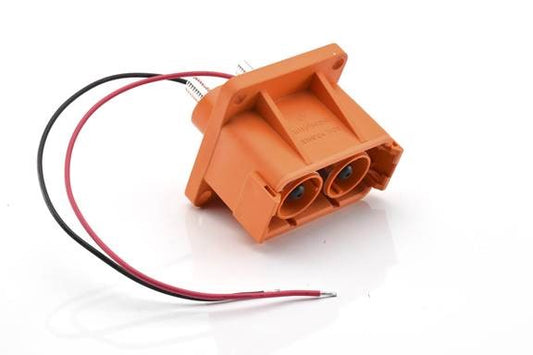

ATHP042P08EL16-M1 2 Position EMC Receptacle, Flange Mounting with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact, Contacts included

ATHP042P08EL16-M1 2 Position EMC Receptacle, Flange Mounting with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact, Contacts included

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

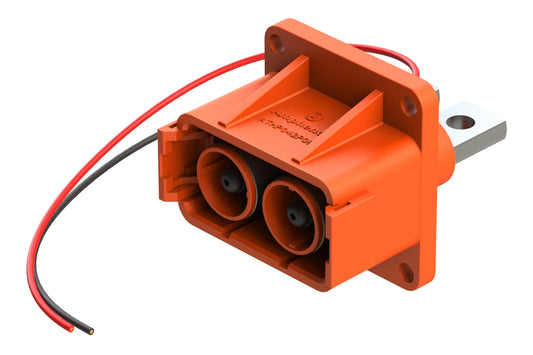

ATHP042P08EL16-H1 2 Position EMC Receptacles with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact, Flat hole tail contact. Contacts included

ATHP042P08EL16-H1 2 Position EMC Receptacles with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact, Flat hole tail contact. Contacts included

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
ATHP042P08EL16-50 2 Position EMC Receptacles, Threaded Stud, with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact. Contacts included

ATHP042P08EL16-50 2 Position EMC Receptacles, Threaded Stud, with High Voltage Interlock Loop, 180 A, 50mm² Power Cable, #16 Signal Contact. Contacts included

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

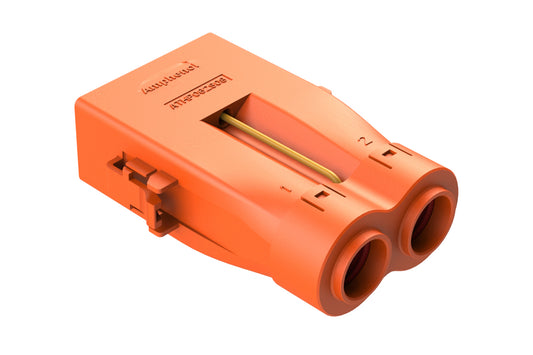

ATHP062S08NL16-50S1 2 position Standard Plug with High Voltage Interlock Loop, 8mm Power Contact, 180 A, 50mm² Power Cable, #16 Signal Contact, 15.5-16.5mm Cable OD Range. Contacts included

ATHP062S08NL16-50S1 2 position Standard Plug with High Voltage Interlock Loop, 8mm Power Contact, 180 A, 50mm² Power Cable, #16 Signal Contact, 15.5-16.5mm Cable OD Range. Contacts included

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

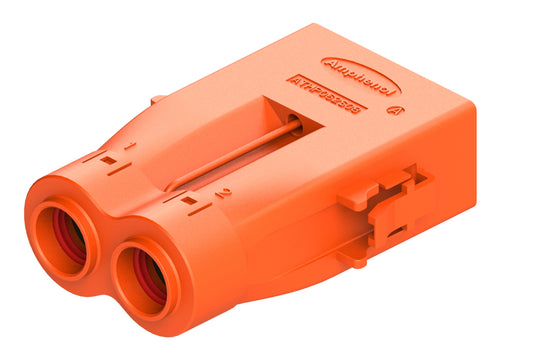

ATHP062S08EL16-50S1 2 position Plug with EMC Shielding, 8mm Power Contact, 180 A, 50mm² Power Cable, #16 Signal Contact, 15.5-16.5mm Cable OD Range. Contacts included

ATHP062S08EL16-50S1 2 position Plug with EMC Shielding, 8mm Power Contact, 180 A, 50mm² Power Cable, #16 Signal Contact, 15.5-16.5mm Cable OD Range. Contacts included

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

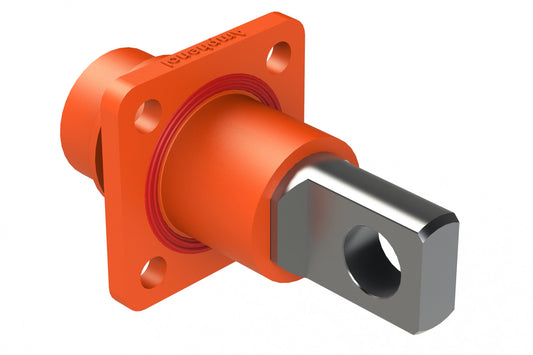

ATHP041P08NN-H1-ORG 8mm Receptacle with Flat Tail Contact, Pin,180A/1000V, Orange

ATHP041P08NN-H1-ORG 8mm Receptacle with Flat Tail Contact, Pin,180A/1000V, Orange

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

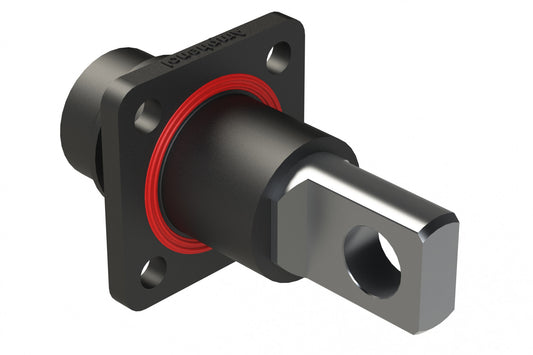

ATHP041P08NN-H1 8mm Receptacle with Flat Tail Contact

ATHP041P08NN-H1 8mm Receptacle with Flat Tail Contact

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
ATHP041P08NN-50-ORG 8mm Receptacle, Pin, 180A/1000V, Orange

ATHP041P08NN-50-ORG 8mm Receptacle, Pin, 180A/1000V, Orange

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

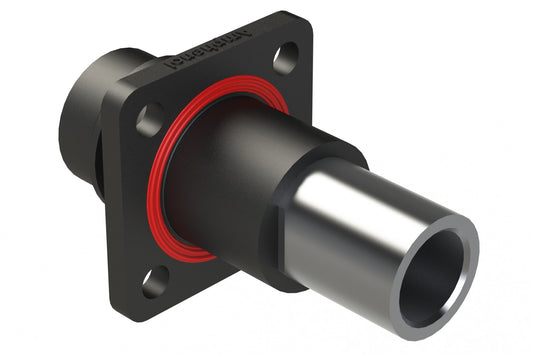

ATHP041P08NN-50 8mm Receptacle, 180A/1000V, Socket,Black, Wire Range 50 mm²

ATHP041P08NN-50 8mm Receptacle, 180A/1000V, Socket,Black, Wire Range 50 mm²

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

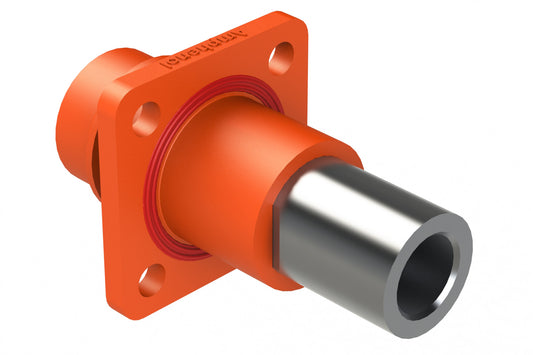

ATHP041P08NN-35-ORG 8mm Receptacle, Pin, 130A/1000V, Orange

ATHP041P08NN-35-ORG 8mm Receptacle, Pin, 130A/1000V, Orange

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
ATHP041P08NN-35 8mm Receptacle, Pin, 130A/1000V, Black, Wire Range 35 mm²

ATHP041P08NN-35 8mm Receptacle, Pin, 130A/1000V, Black, Wire Range 35 mm²

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
ATHP061RS08NN-50-ORG 8mm right angle plug, 180A/1000V, Socket, orange

ATHP061RS08NN-50-ORG 8mm right angle plug, 180A/1000V, Socket, orange

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
ATHP061RS08NN-50 8mm right angle plug, 180A/1000V, Socket, black, wire range 50 mm²

ATHP061RS08NN-50 8mm right angle plug, 180A/1000V, Socket, black, wire range 50 mm²

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
ATHP061RS08NN-35-ORG 8mm right angle plug, 130A/1000V, Socket, orange

ATHP061RS08NN-35-ORG 8mm right angle plug, 130A/1000V, Socket, orange

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
ATHP061RS08NN-35 8mm right angle plug, 130A/1000V, Socket, black, wire range 35 mm²

ATHP061RS08NN-35 8mm right angle plug, 130A/1000V, Socket, black, wire range 35 mm²

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
