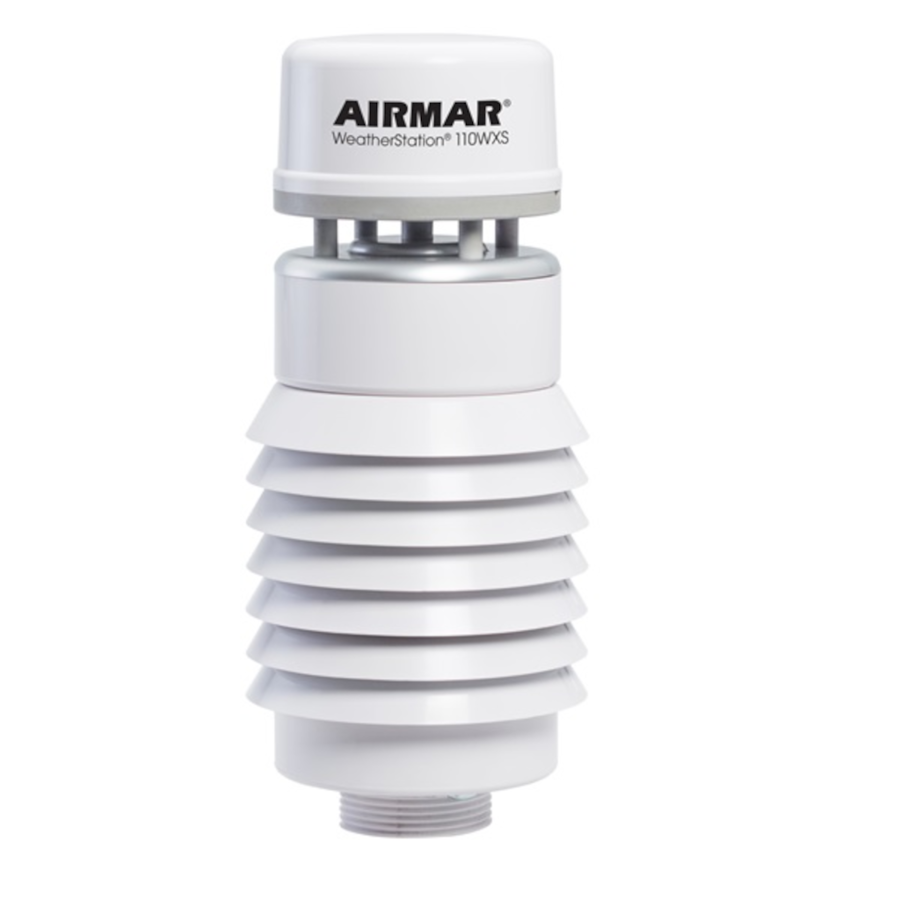

110WXS WeatherStation® Instrument

110WXS WeatherStation® Instrument

IMAGE MAY DIFFER

110WXS

$0.00 AUD
$0.00 AUD
Sale Sold out

Downloads

Datasheet
2D Drawing

Specifications

Solar-radiation Shield

The model 110WXS is Airmar’s entry-level solution for land-based, stationary, weather-monitoring applications. A complete multisensor WeatherStation, the 110WXS features a solar-radiation shield for increased accuracy and stability of temperature and relative humidity readings. Ultrasonic measurement of wind speed and angle is virtually maintenance-free with no moving parts to wear out. Barometric pressure as well as calculated wind chill and heat index round out the critical parameters being measured. The durable, rugged housing is designed to be an integral component of a land-based station.

Features

  • Ultrasonic measurement of apparent wind speed and direction
  • Solar-radiation shield provides stable, accurate temperature and relative humidity data
  • Additional parameters: barometric pressure, calculated dew point, heat index, and wind chill
  • Rugged, compact, UV-stabilized housing with no moving parts

Specifications

Recommended Use: Land-Based Stationary
Humidity: Included
Waterproof Rating: IPX4
Air Temp Accuracy: ±0.3°C at 20°C
Air Temp Range: -40 to 80°C (-40 to 176°F)
Air Temp Resolution: 0.1°C
Apparent Wind Speed and Angle: Yes
Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
Barometric Pressure Range: 300 to 1100 hPa
Barometric Pressure Resolution: 0.1 hPa
Certs And Standards: CE, IPX4, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Note: Cables sold separately unless otherwise specified
Optional RH Accuracy: ±3% RH at 0 to 90% RH at 20°C
Optional RH Range: 0 to 100% RH
Optional RH Resolution: 0.1% RH
Stationary: Yes
True Wind Speed and Direction: Yes (Manual Alignment to North)
Weight: 300 g (0.7 lb.)
Wind Direction Accuracy: ±3° at 10 m/s
Wind Direction Calculations: User configurable damping
Wind Direction Range: 0° to 359.9°
Wind Direction Resolution: 0.1°
Wind Speed Accuracy: 5% at 10 m/s at 4 angles
Wind Speed Calculations: User configurable damping
Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
Wind Speed Resolution: 0.1 m/s
