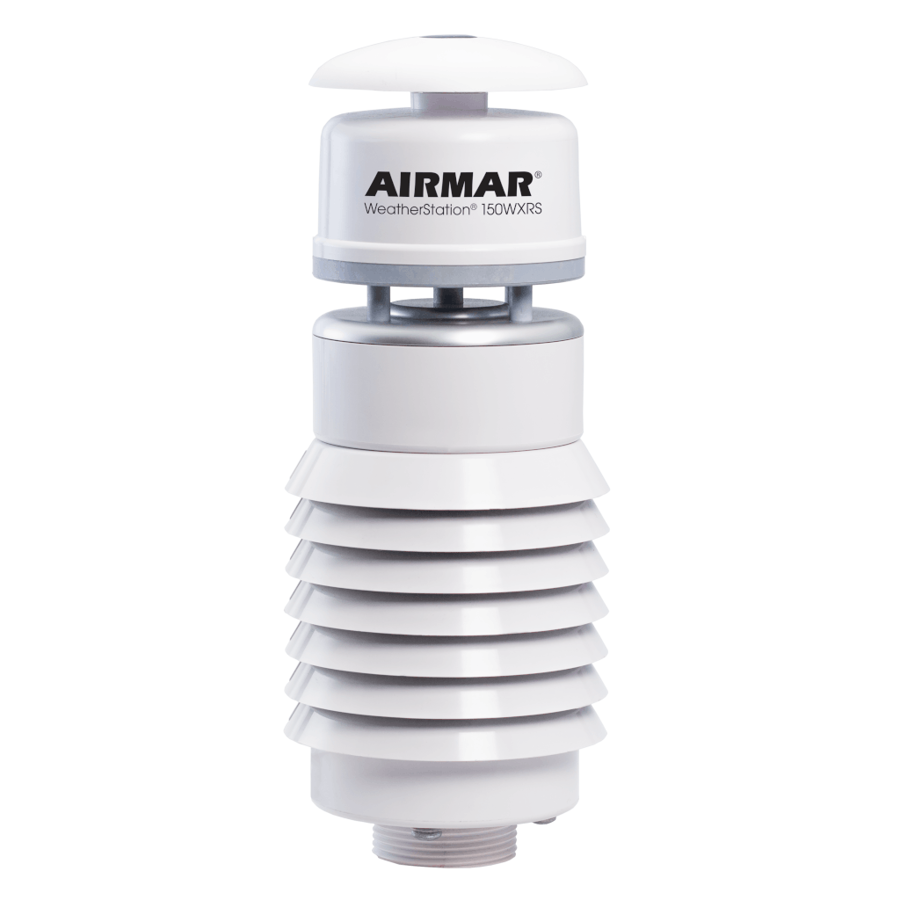

150WXRS WeatherStation® Instrument

150WXRS WeatherStation® Instrument

IMAGE MAY DIFFER

150WXRS

$0.00 AUD
$0.00 AUD
Sale Sold out

Downloads

Datasheet
2D Drawing

Specifications

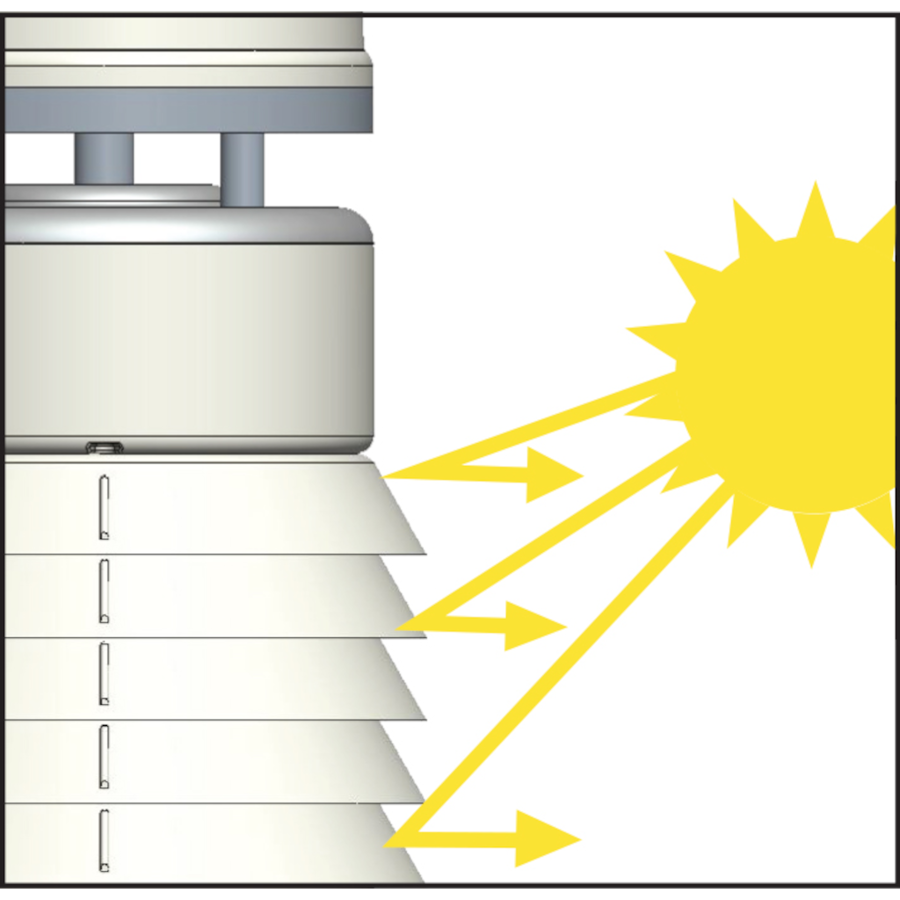

Rain Sensor with Solar-radiation Shield

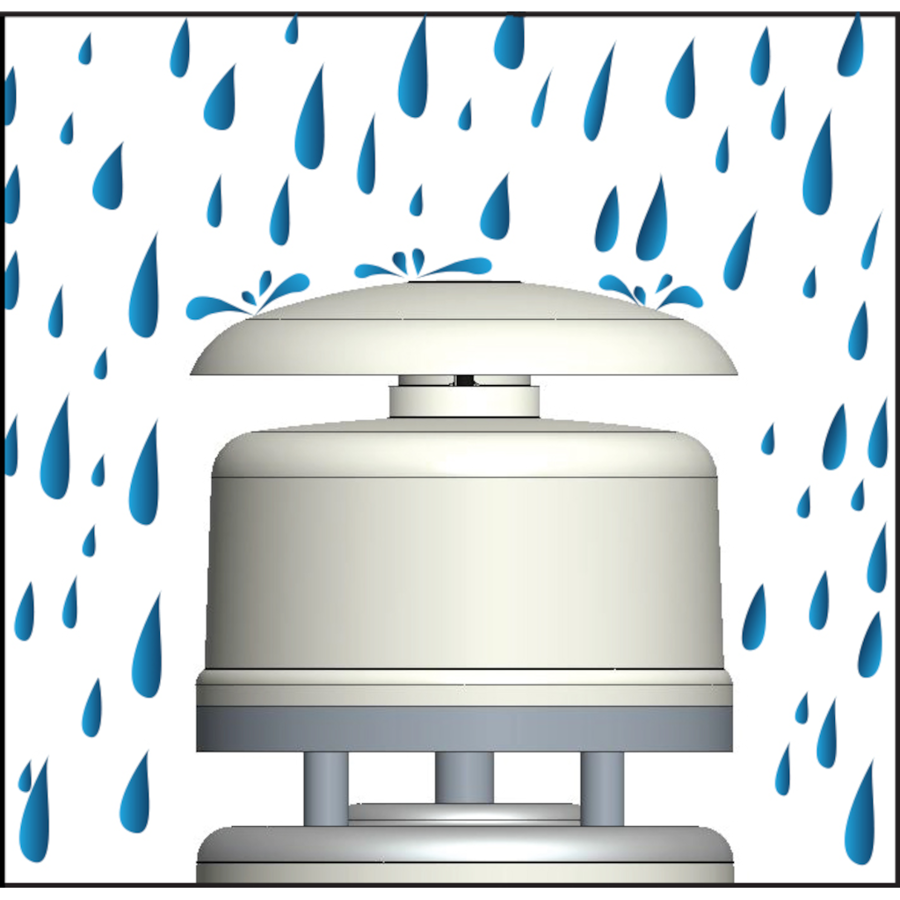

Airmar’s WeatherStation WXRS provides real-time information on rain intensity, accumulation, and event duration. An acoustic sensor measures the impact energy of individual raindrops on the “umbrella” located on the top of the instrument. This patented rain-detecting sensor is virtually maintenance free. It has no moving parts or components that need to be emptied, cleaned, or will become clogged by debris.

With minimal maintenance, the unique rain sensor plus a full suite of ultrasonic wind, temperature, barometric pressure, and relative humidity sensors, the WeatherStation 150WXRS delivers a significantly lower total cost of ownership than traditional measurement devices.

Features

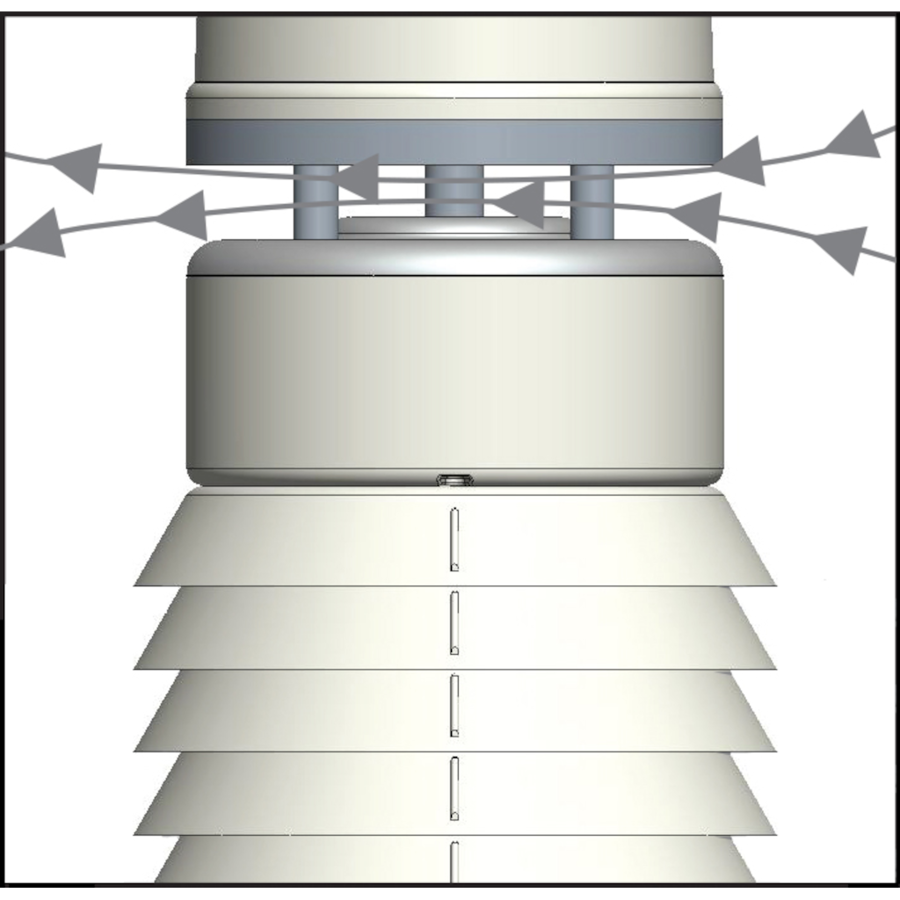

  • Ultrasonic measurement of apparent wind speed and direction
  • Acoustic measurement of rain accumulation, intensity, and duration
  • Internal compass for wind-speed data referenced to magnetic north
  • GPS for time stamping correcting for the variation between magnetic and true north
  • Maintenance-free operation is superior to tipping buckets, weighing gauges, optical measurement. No obstruction and data integrity loss due to debris.
  • Rugged, compact, UV stabilized housing with no moving parts

Specifications

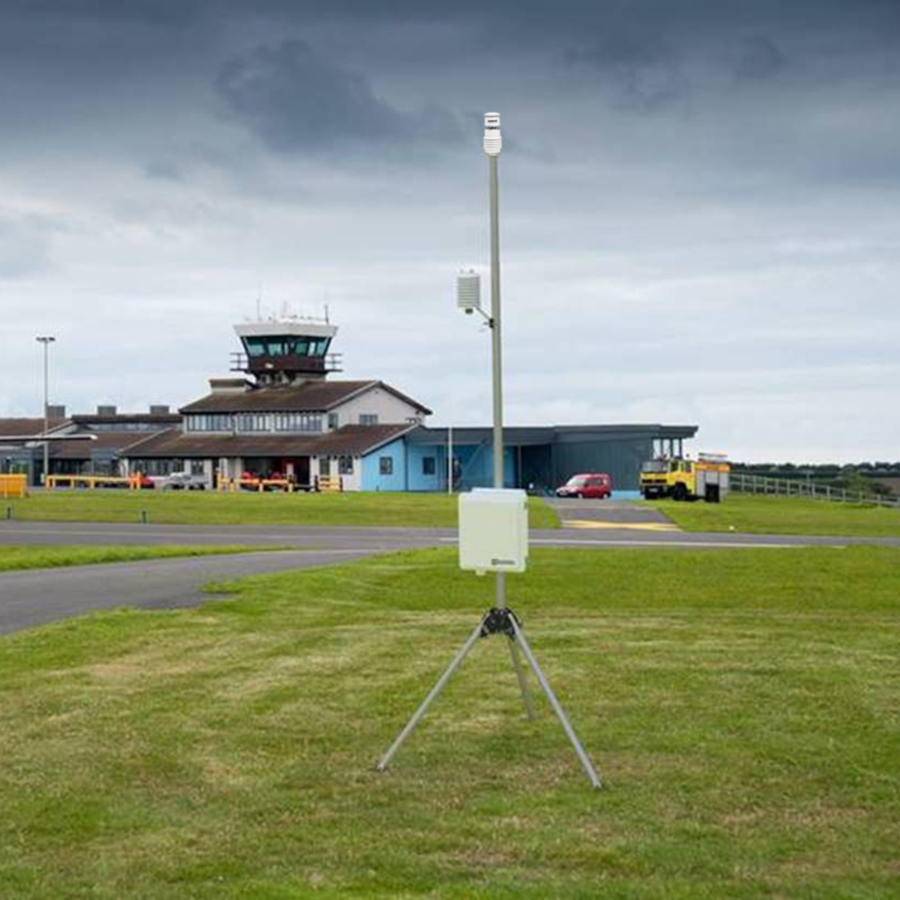

Recommended Use: Land-Based Stationary
Humidity: Included
Power Supply Voltage: 9 to 40 VDC
Power Supply Current: <105 mA (<1.25 W) at 12 VDC
Communications Available Protocol: Serial - NMEA 0183
Waterproof Rating: IPX6
Air Temp Accuracy: ±0.3°C at 20°C
Air Temp Range: -40 to 80°C (-40 to 176°F)
Air Temp Resolution: 0.1°C
Apparent Wind Speed and Angle: Yes
Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
Barometric Pressure Range: 300 to 1100 hPa
Barometric Pressure Resolution: 0.1 hPa
Certs And Standards: CE, IPX6, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Communications Available Hardware Interface: Serial RS232, Serial RS422
Communications Serial Data Transmission Code: ASCII
Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
GPS Position Accuracy: 3 m (10') CEP
Mobile: No
Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
Note: Cables sold separately unless otherwise specified
Operating Temp Range: -25 to 55°C (-13 to 131°F)
Pitch Roll Accuracy: ±1° in range of ±30°
Pitch Roll Measurement Type: MEMS
Pitch Roll Range: 50°
Pitch Roll Resolution: 0.1°
Rainfall Amount: Cumulative accumulation after the latest automatic or manual reset
Rainfall Amount Accuracy: 5% Typical
Rainfall Amount Output Resolution: 0.01 mm
Rainfall Duration: Counting each second whenever water droplet is detected
Rainfall Duration Output Resolution: 1 second
Rainfall Intensity: One minute running average in 10 second intervals
Rainfall Intensity Output Resolution: 0.1 mm/h
Rainfall Intensity Range: 0 to 200 mm/h
RH Accuracy: ±3% RH at 0 to 90% RH at 20°C
RH Range: 0 to 100% RH
RH Resolution: 0.1% RH
Stationary: Yes
Theoretical Wind Speed and Direction: No
Three Axis Compass Dynamic Heading Accuracy: 2° dynamic heading accuracy
Three Axis Compass Range: 0 to 359.9°
Three Axis Compass Resolution: 0.1°
Three Axis Compass Static Heading Accuracy: 1° static heading accuracy
True Wind Speed and Direction: Yes
Weight: 350 g (0.8 lb.)
Wind Direction Accuracy: ±3° at 10 m/s
Wind Direction Calculations: User configurable damping
Wind Direction Range: 0° to 359.9°
Wind Direction Resolution: 0.1°
Wind Speed Accuracy: 5% at 10 m/s at 4 angles
Wind Speed Calculations: User configurable damping
Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
Wind Speed Resolution: 0.1 m/s
