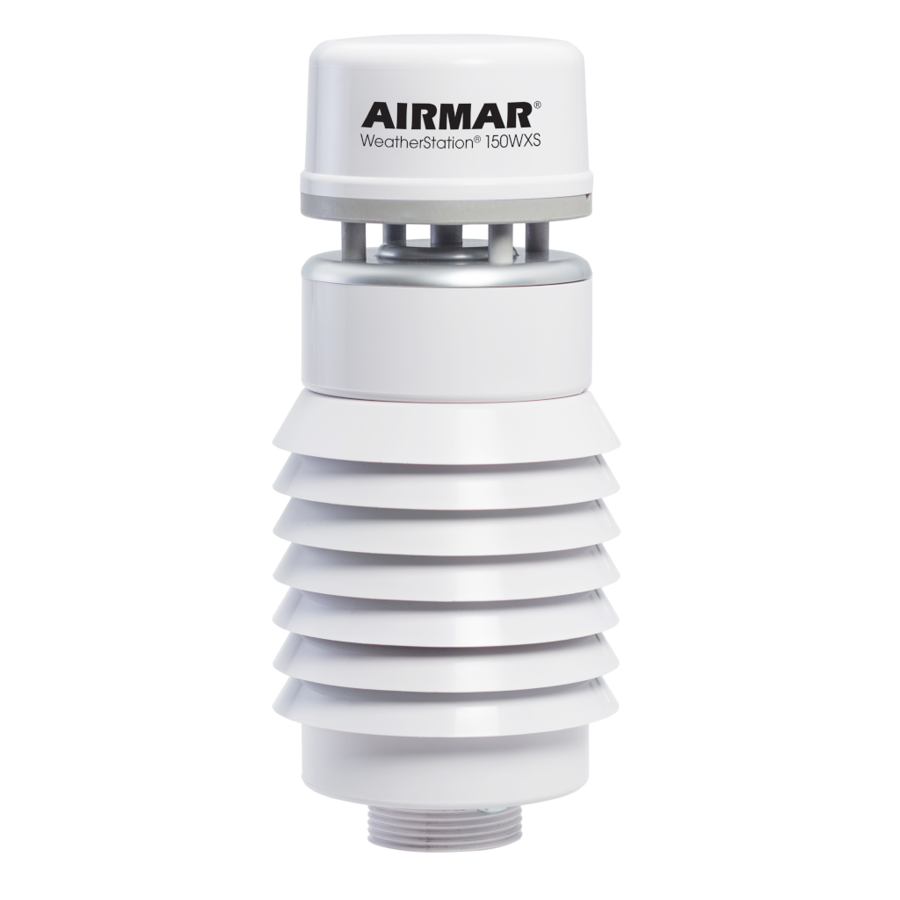

150WXS WeatherStation® Instrument

150WXS WeatherStation® Instrument

IMAGE MAY DIFFER

150WXS

$0.00 AUD
$0.00 AUD
Sale Sold out

Downloads

Datasheet
2D Drawing

Specifications

Compass with Solar-radiation Shield

Airmar’s WeatherStation 150WXS provides accurate, site-specific, weather data from a single compact device. It measures seven critical weather parameters in real-time. The compact housing features ultrasonic wind and barometric pressure measurements. Plus the solar radiation shield increases the accuracy and stability of temperature and relative humidity readings. The maintenance-free features of the 150WXS makes it perfect for remote mounting as a network of stationary sensors—an integral component of a comprehensive weather station.

Features

  • Ultrasonic measurement of apparent wind speed and direction
  • Barometric pressure, air temperature, and relative humidity readings with calculted dew point, heat index, and wind chill
  • Internal compass for wind speed data referenced to magnetic north
  • GPS for time stamping and  correcting for the variation between magnetic and true north
  • Rugged, compact, UV stabilized housing with no moving parts

Specifications

Recommended Use: Land-Based Stationary
Humidity: Included
Power Supply Voltage: 9 to 40 VDC
Power Supply Current: <75 mA (<0.9 W) at 12 VDC
Communications Available Protocol: Serial - NMEA 0183, CAN - NMEA 2000
Waterproof Rating: IPX4
Air Temp Accuracy: ±0.3°C at 20°C
Air Temp Range: -40 to 80°C (-40 to 176°F)
Air Temp Resolution: 0.1°C
Apparent Wind Speed and Angle: Yes
Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
Barometric Pressure Range: 300 to 1100 hPa
Barometric Pressure Resolution: 0.1 hPa
Certs And Standards: CE, IPX4, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Communications Available Hardware Interface: Serial RS232, Serial RS422, CAN
Communications Serial Data Transmission Code: ASCII
Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
GPS Position Accuracy: 3 m (10') CEP
Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
Note: Cables sold separately unless otherwise specified
Operating Temp Range: -25 to 55°C (-13 to 131°F)
Optional RH Accuracy: ±3% RH at 0 to 90% RH at 20°C
Optional RH Range: 0 to 100% RH
Optional RH Resolution: 0.1% RH
Pitch Roll Accuracy: ±1° in range of ±30°
Pitch Roll Measurement Type: MEMS
Pitch Roll Range: 60°
Pitch Roll Resolution: 0.1°
Stationary: Yes
True Wind Speed and Direction: Yes
Two Axis Compass Accuracy: 1° RMS when level
Two Axis Compass Range: 0 to 359.9°
Two Axis Compass Resolution: 0.1°
Weight: 325 g (0.71 lb)
Wind Direction Accuracy: ±3° at 10 m/s
Wind Direction Calculations: User configurable damping
Wind Direction Range: 0° to 359.9°
Wind Direction Resolution: 0.1°
Wind Speed Accuracy: 5% at 10 m/s at 4 angles
Wind Speed Calculations: User configurable damping
Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
Wind Speed Resolution: 0.1 m/s
