68403 Trex-Onics® Individually Shielded Multi-Pair Control Cables

Trex-Onics® Individually Shielded Multi-Pair Control Cable is designed for industrial cat tracks, reeling, drop pendants, and robotics and shows superior resistance against abrasion, tearing, oil, UV, and most chemicals.

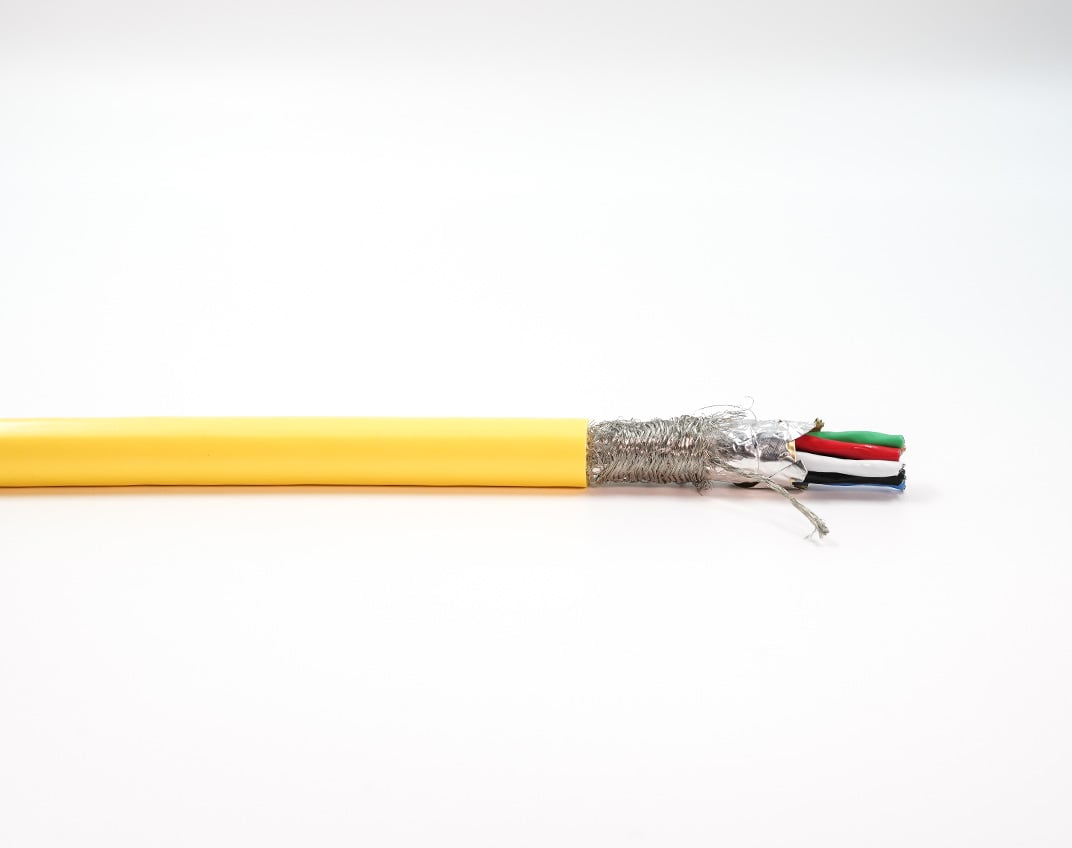

This control and instrumentation cable features Ultra-Shield construction, which includes a heavy-duty combination of tinned copper braid, foil shield, and tinned drain wire providing 100% protection from electromagnetic and radio frequency interference. This cable has individually twisted and shielded pairs with TPE insulation and FEP overcoat and a heavy-duty security yellow polyurethane jacket.

Features:

• Finely Stranded Tinned Copper Conductors
  Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.
• Specially Compounded TPE Insulation
  Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.

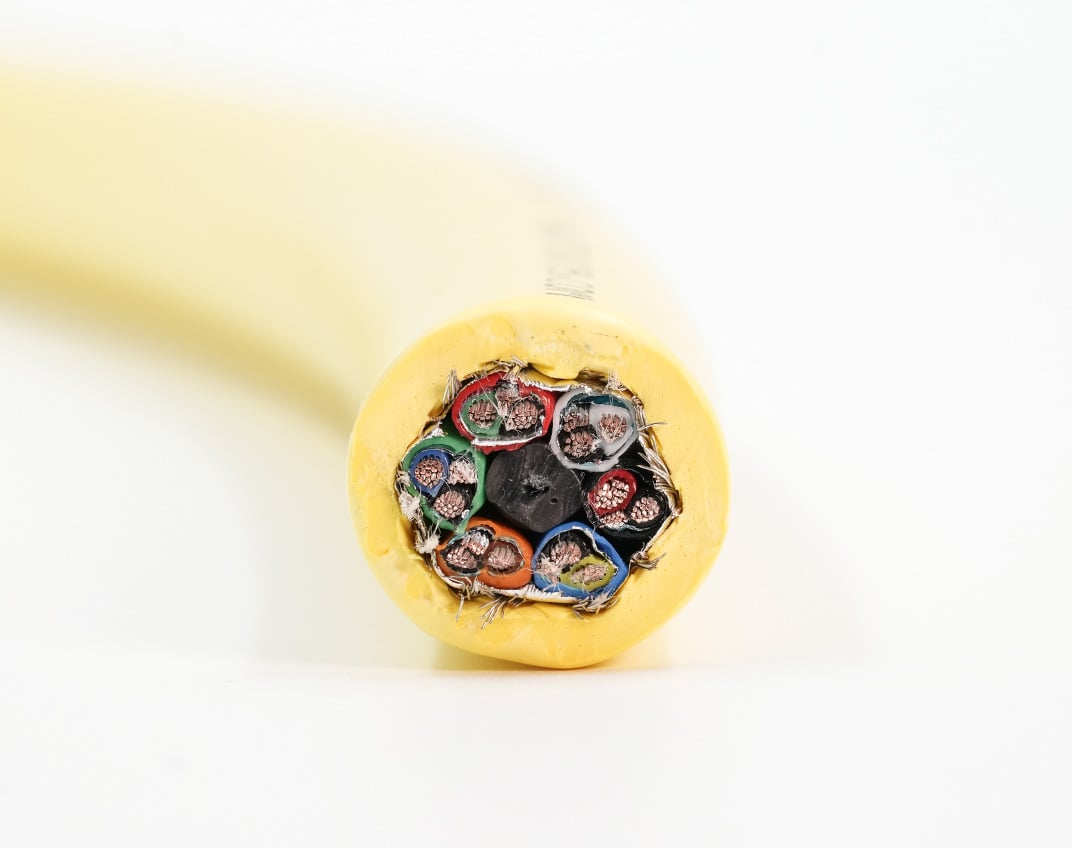

• Twisted Individually Shielded Pairs Protected With Specially Compounded FEP Overcoat
  Unique extruded FEP overcoat design helps maintain shield integrity on individual pairs in flexing applications.

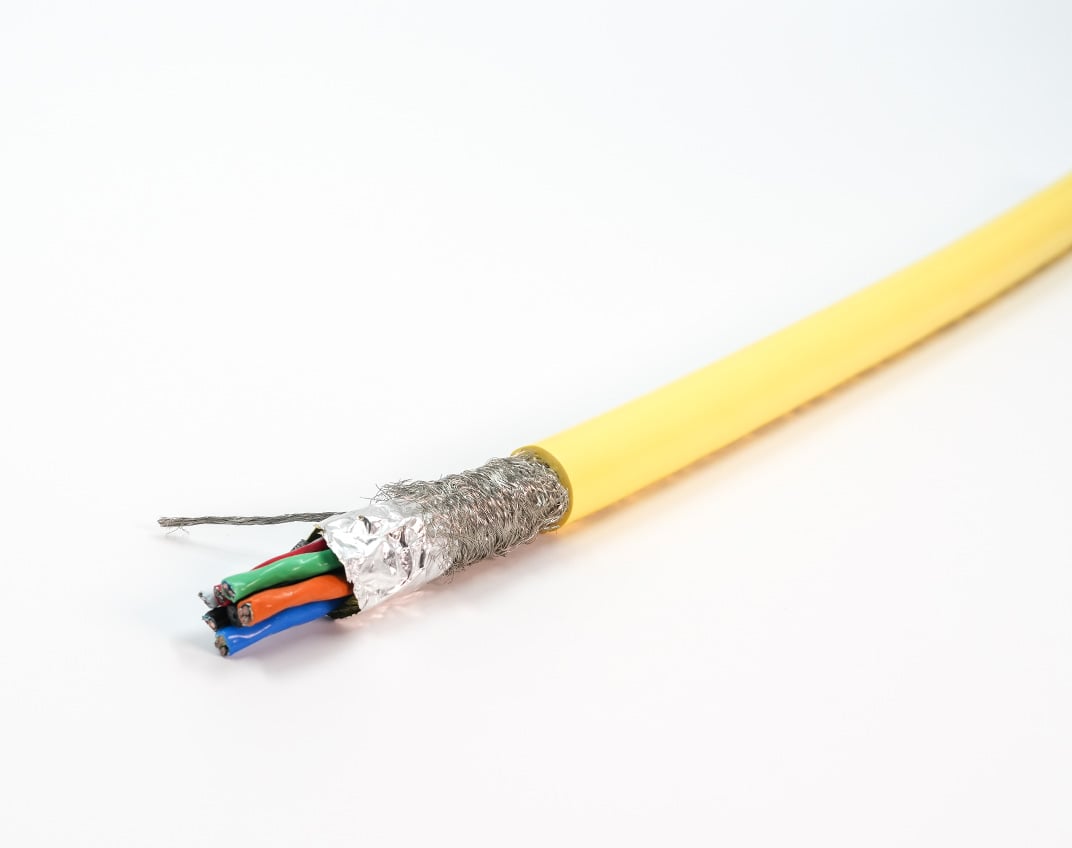

• Ultra-Shield Tinned Copper Braid Shield Plus Aluminum/Polyester Foil Shield Construction
  Provides 100% protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage.”
• Specially Compounded Security Yellow TPU Jacket
  Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, UV exposure, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Applications:

• Abrasion
• Chemicals
• Flexing
