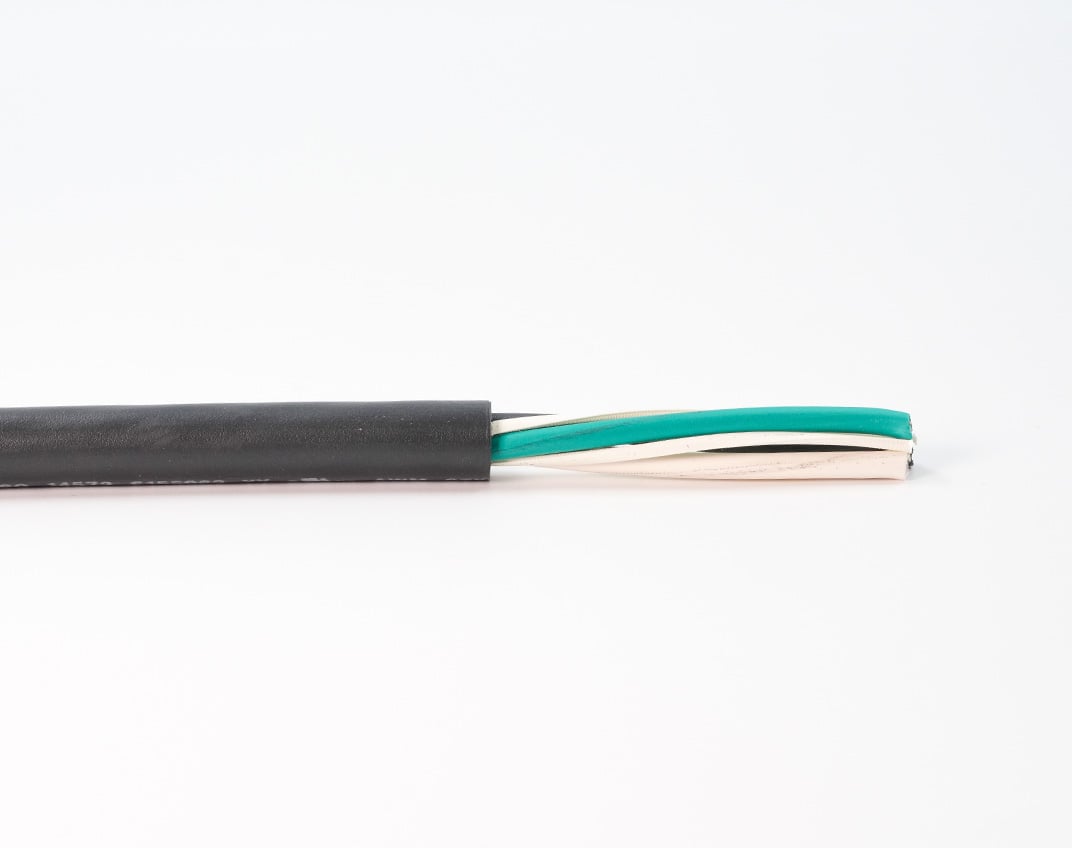

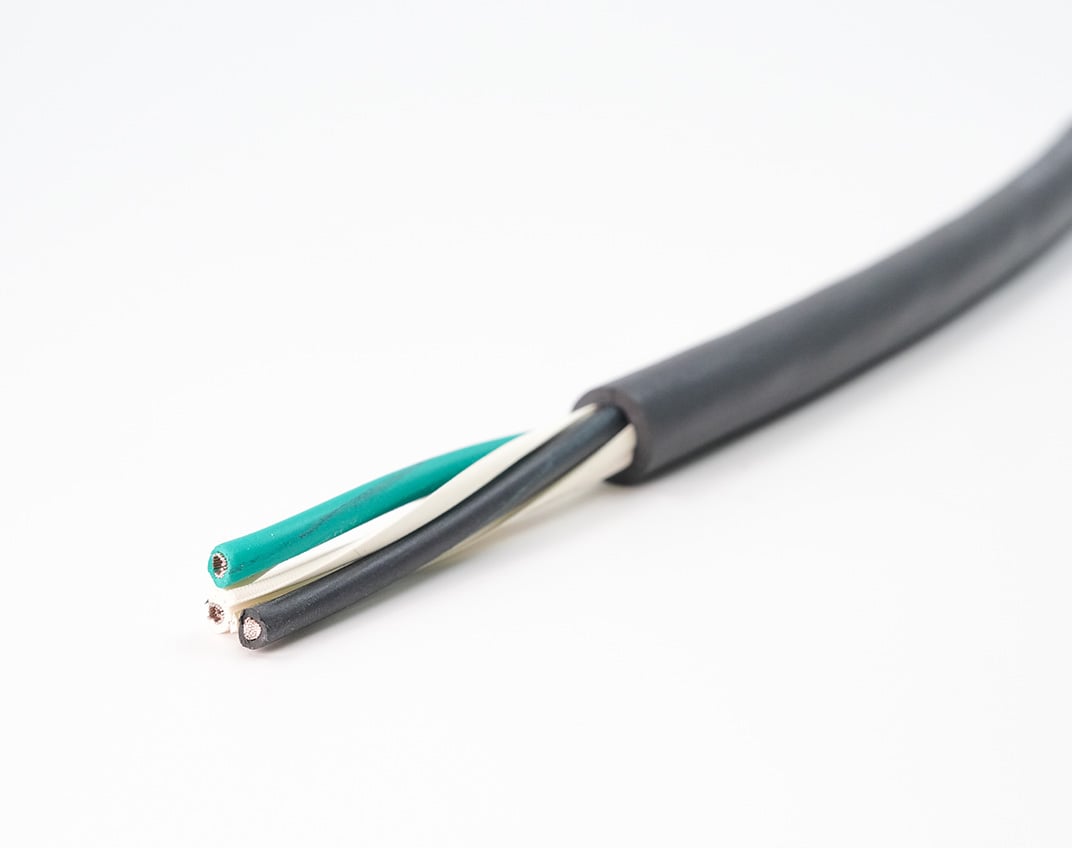

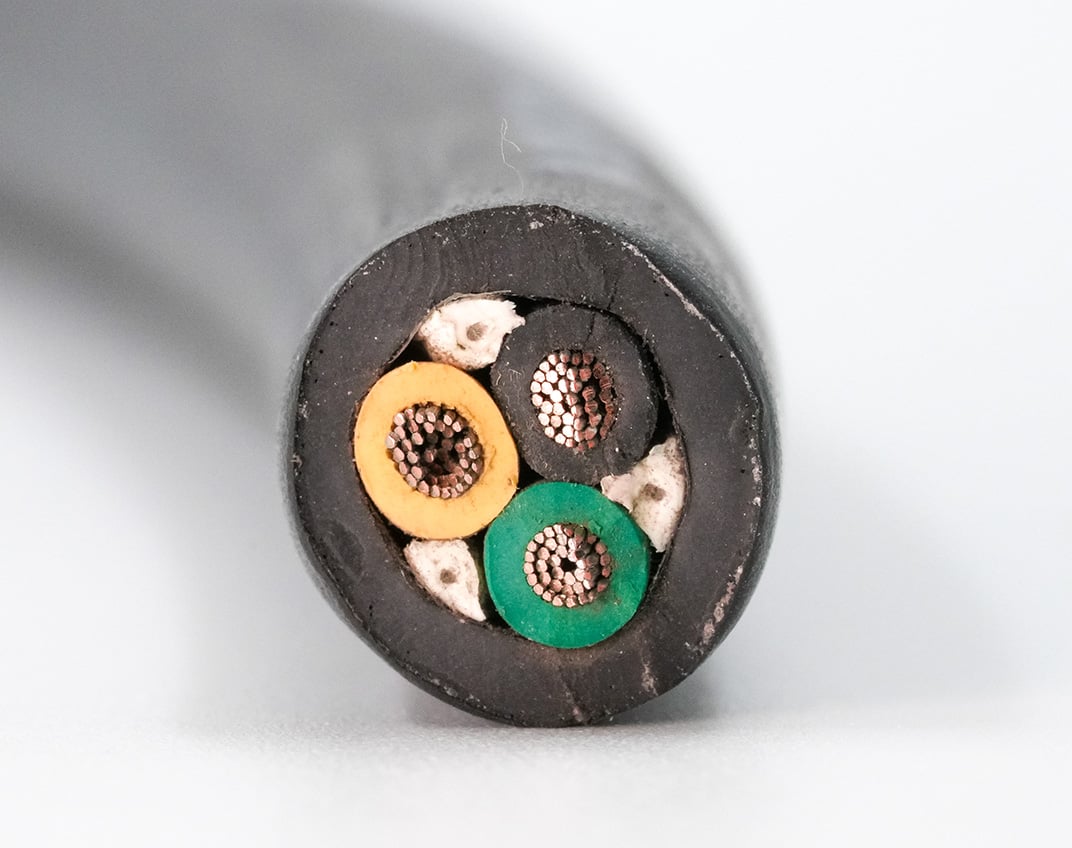

    87831 Super-Trex® Extreme Temperature Cable
87831 Super-Trex® Extreme Temperature Cable
IMAGE MAY DIFFER
SKU:
Regular price

            $0.00 AUD


          Regular price






          Sale price

          $0.00 AUD



        Unit price


          /
           per




    Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetSpecifications
Flammability Rating: FT1
Conductor Size: 10 AWG
Conductor Pole Count: 4
Shielding Type:
Cond Stranding: 105/30
Ampacity: 55
Jacket Thickness: 1.651 mm
Nominal OD: 13.6144 mm
Max Conductor Temperature: 150°C
Cold Temperature Rating: -70°C
Rating: UL listed, cUL
Super-Trex® Extreme Temperature Cable is a portable cord/power cable designed to operate effectively in temperatures ranging from -70°C to 150°C per ISO standards (UL/cUL 105°C), remaining flexible and protected no matter the environment.
This heat and cold-resistant portable cord/power cable features a cross-linked jacket that offers excellent resistance to abrasion, oils, and chemicals.
Features:
- Stranded Tinned Copper Conductors
Resist corrosion, improve flexibility, and help reduce conductor fatigue and breakage in flexing applications. - Cross Linked Insulation On Individual Conductors
The temperature rating of the insulation is matched to the jacket to provide maximum protection in high and low temperature applications. The heavy-duty design provides extra cut through protection. - High Temperature Cross Linked TSE Jacket
The jacket protects the cable from high temperature operation and remains flexible at extreme cold temperatures. The heavy-duty jacket provides protection from cutting, abrasion, water, oils, chemicals and is UV resistant. - UL Recognized
Certified by UL to both Canadian and U.S. requirements.
Applications:
- Abrasion
 - Chemicals
 - Extreme Temperature
