87840 Super-Trex® Extreme Temperature Cable

87840 Super-Trex® Extreme Temperature Cable

IMAGE MAY DIFFER

SKU:

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out

Downloads

Datasheet

Specifications


Flammability Rating: FT1
Conductor Size: 14 AWG
Conductor Pole Count: 3
Shielding Type:
Cond Stranding: 41/30
Ampacity: 34
Jacket Thickness: 1.651 mm
Nominal OD: 10.8204 mm
Max Conductor Temperature: 150°C
Cold Temperature Rating: -70°C
Rating: UL listed, cUL

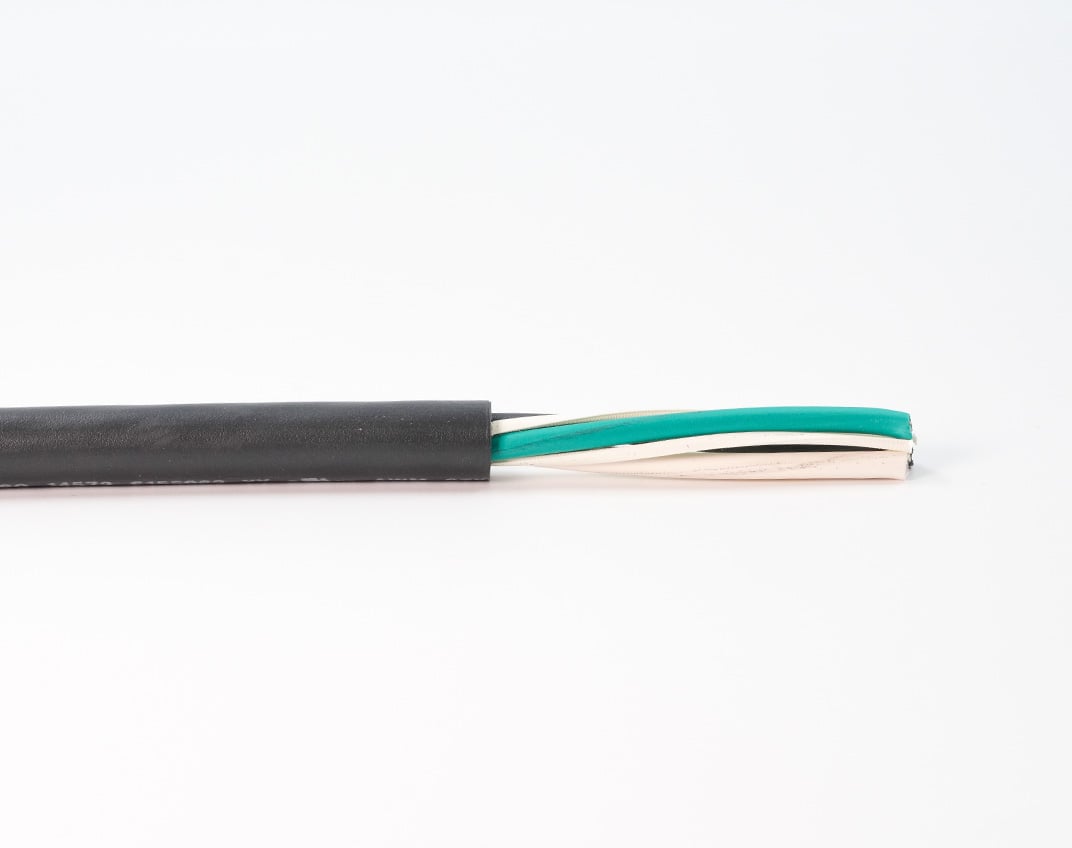

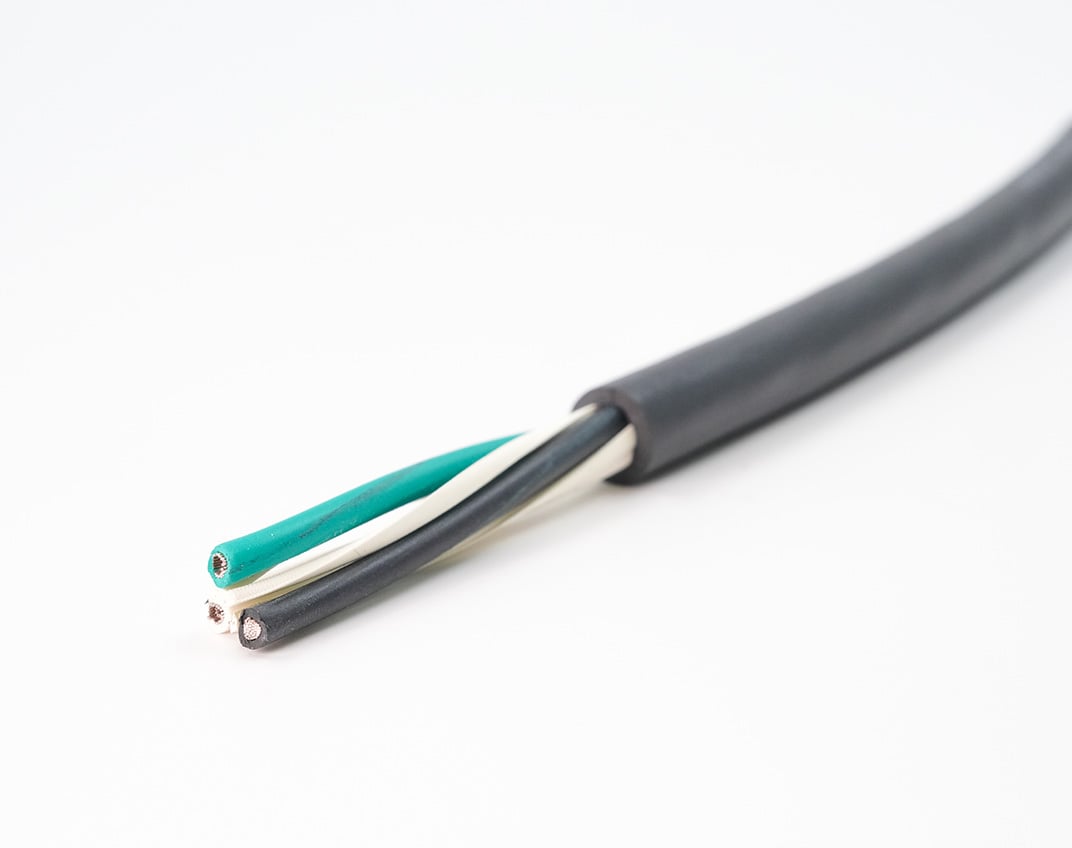

Super-Trex® Extreme Temperature Cable is a portable cord/power cable designed to operate effectively in temperatures ranging from -70°C to 150°C per ISO standards (UL/cUL 105°C), remaining flexible and protected no matter the environment.

This heat and cold-resistant portable cord/power cable features a cross-linked jacket that offers excellent resistance to abrasion, oils, and chemicals.

Features:

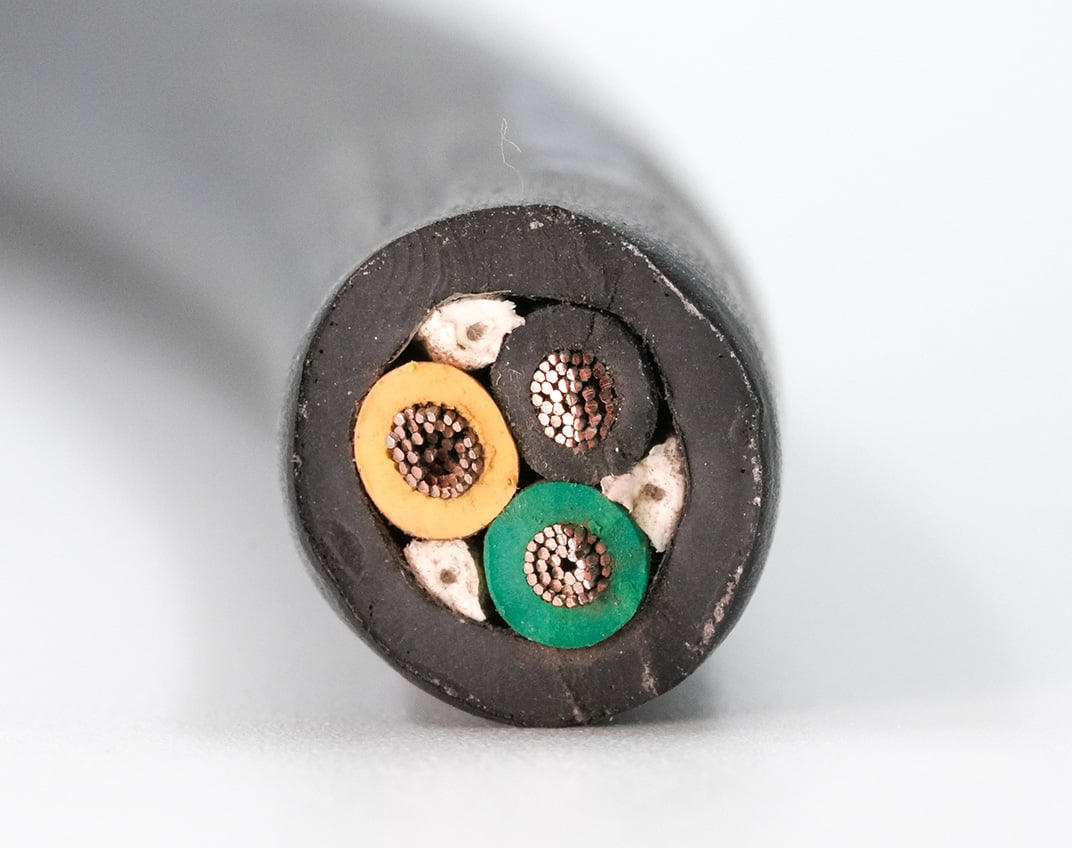

  • Stranded Tinned Copper Conductors
    Resist corrosion, improve flexibility, and help reduce conductor fatigue and breakage in flexing applications.
  • Cross Linked Insulation On Individual Conductors
    The temperature rating of the insulation is matched to the jacket to provide maximum protection in high and low temperature applications. The heavy-duty design provides extra cut through protection.
  • High Temperature Cross Linked TSE Jacket
    The jacket protects the cable from high temperature operation and remains flexible at extreme cold temperatures. The heavy-duty jacket provides protection from cutting, abrasion, water, oils, chemicals and is UV resistant.
  • UL Recognized
    Certified by UL to both Canadian and U.S. requirements.

Applications:

  • Abrasion
  • Chemicals
  • Extreme Temperature
View full details
