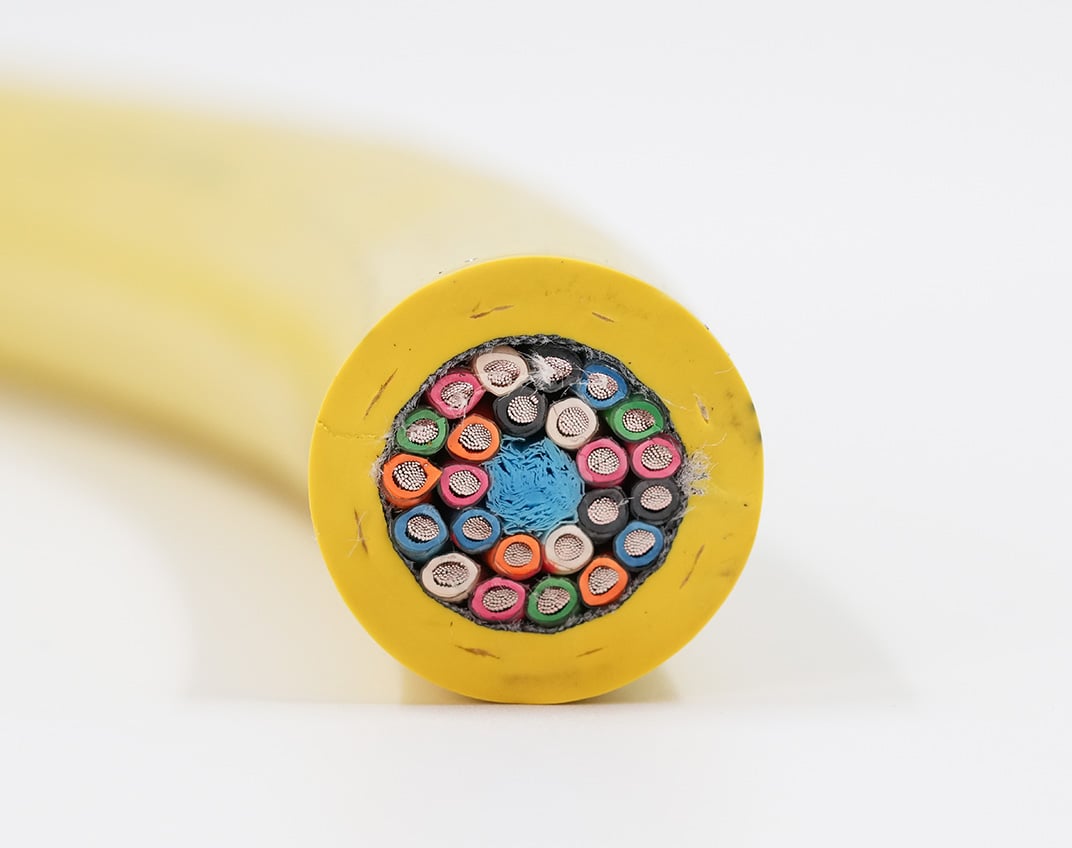

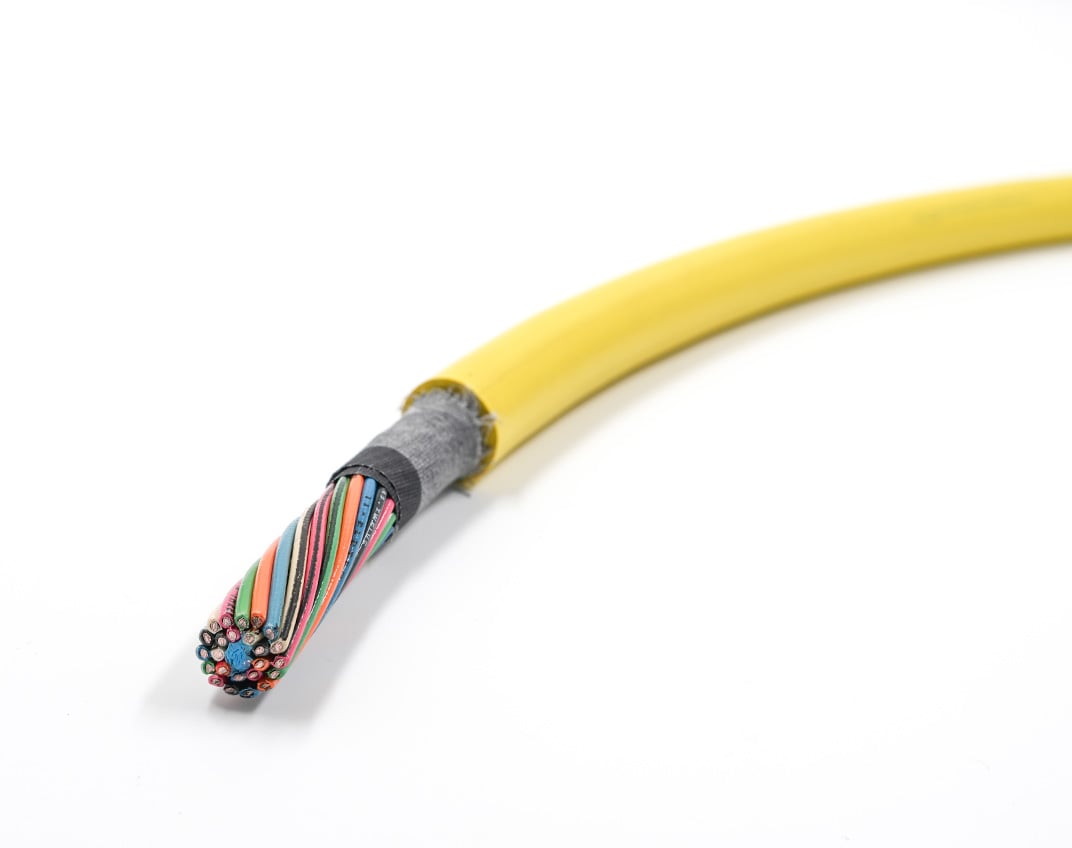

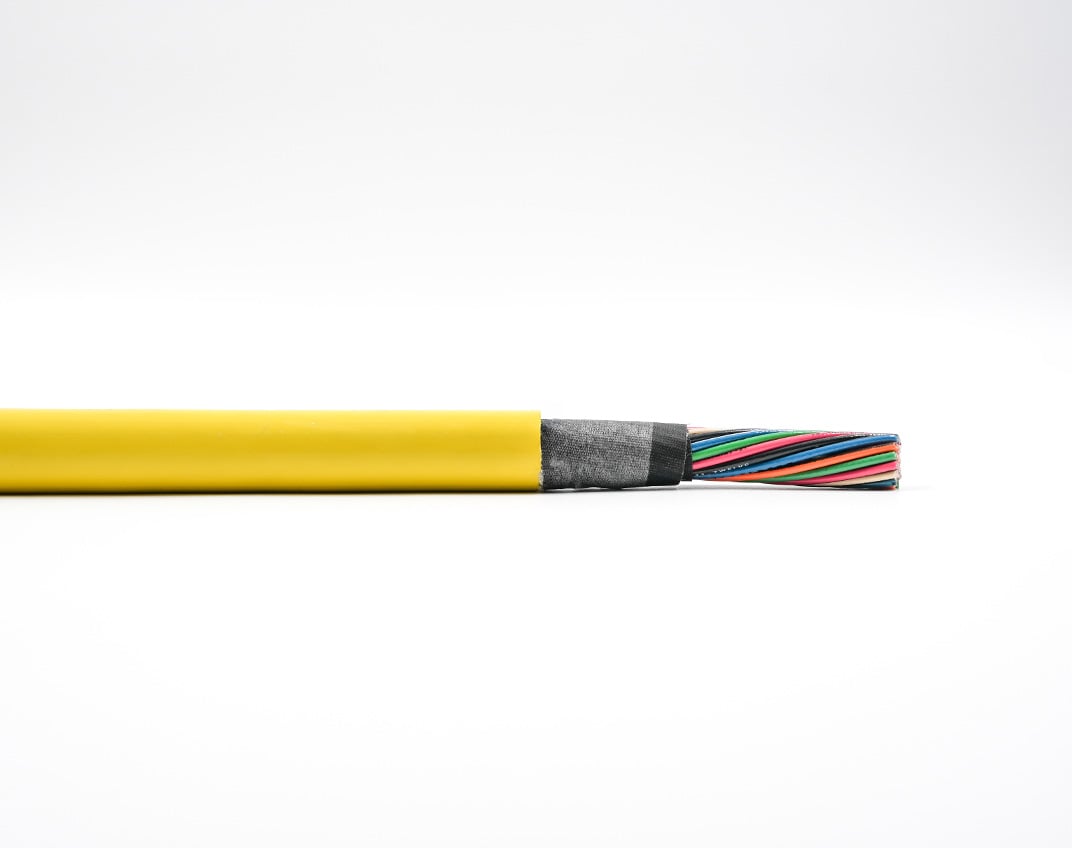

88822 Super-Trex® Multi-Conductor P&R Cable

Super-Trex® Multi-Conductor P&R Cable is designed specifically for payout and retractile (P&R) reeling applications.

This P&R cable features our live-flex conductor insulation for increased flexibility and high dielectric, tensile and mechanical properties. A security yellow TSE dual-layer jacket provides protection against abuse tearing, abrasion, impact, oil, chemicals. This product is ideal for use in applications that see direct flame

Features:

• Finely Stranded Tinned Copper Conductors
  Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.
• Live-Flex XLPE Insulation System
  Increases flexibility and provides high dielectric, tensile, and mechanical properties. Low coefficient of friction between conductors.
• No-Wick Rayon-Reinforced Synthetic Fillers
  Adds tensile strength. Improves flexibility and won’t wick up liquids. Act like a shock absorber to reduce damage from impact.
• Non-Woven Polyester Tape Separator
  Improves flexibility, allows the conductor bundle to move easily within the jacket for longer flex life.
• Nylon Reinforcing Braid Embedded Between Two-Layer Jacket
  Provides added strength. Improves cable resistance to impact, abrasion, twisting, and pulling
• Specially Compounded Security Yellow TSE Jacket
  Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Applications:

• Abrasion
• Chemicals
• Flexing
• Impact
• Tension
