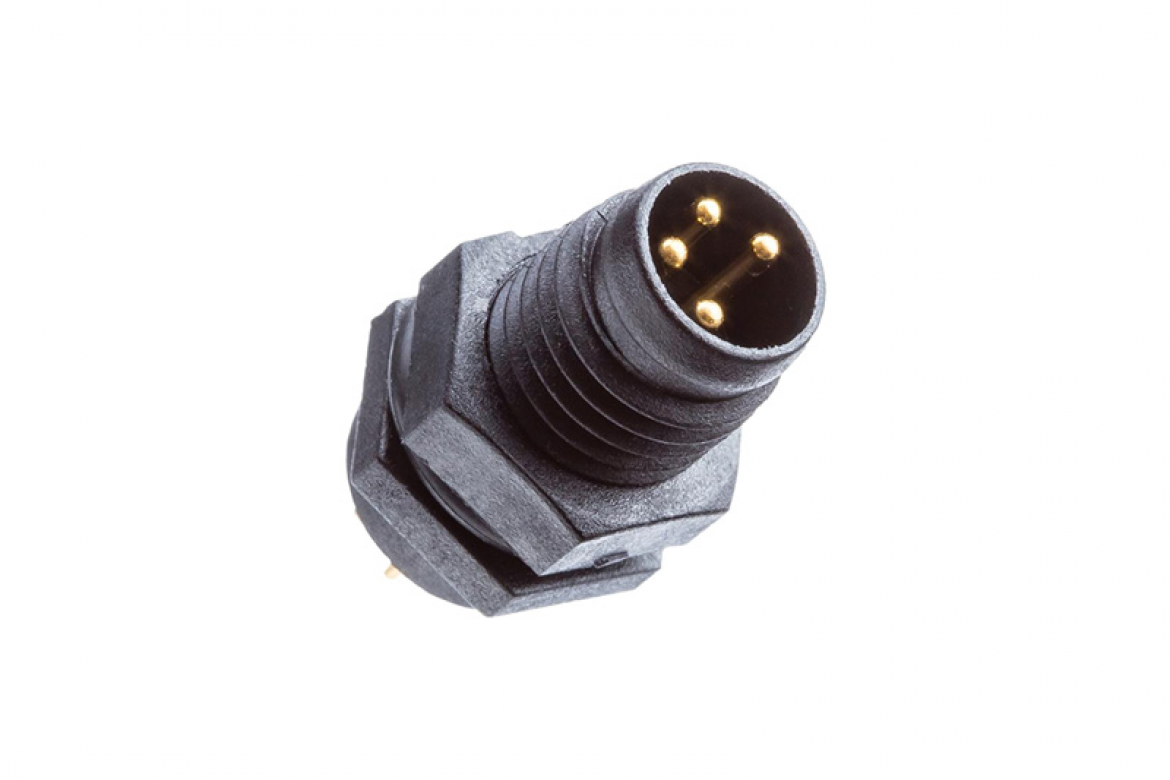

8AP-03PMMP-SF7001 Metric Circular Connector
8AP-03PMMP-SF7001 Metric Circular Connector
IMAGE MAY DIFFER
SKU:8AP-03PMMP-SF7001
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Specifications
No. of Positions: 03Contact Material: Plastic, Non-shielded
AWG: N/A
Amperage: 3A
IP Rating: IP67
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 1000
Shape: Hexagonal
Cable Diameter: N/A
Connector Gender: Male
Contact Gender: Male
Salt Spray: 48h
Operating Voltage: 50V AC / 60V DC
Receptacle Nut Thread: M8*1.0
Mating Style: Screw Thread
Fasten Style: Front
Assembly Style: PCB 180°
Length (mm): N/A
Panel Thickness: 3.00
Guided M8 Metric Circular Connector, Plastic, 3A, 03 pins, Male Connector, Male Contact, Hexagonal, Screw Thread, PCB 180°, Receptacle, Front Fastened, IP67 Unmated
