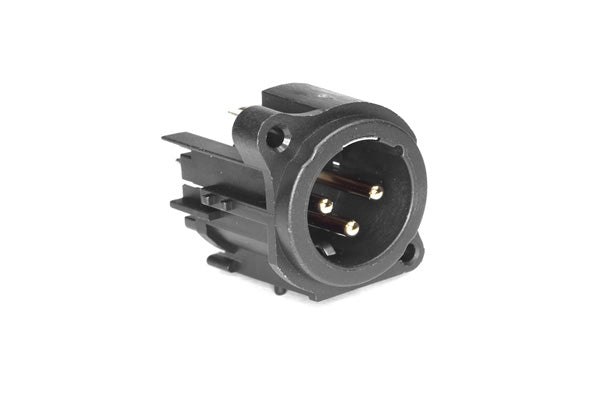

AC3MAV1-AU-PRE 3 Pole XLRMale ChassisMount, AType, Gold Plated Contacts, Vertical PCBMount, Separate ground Pin 1. Black Finish
AC3MAV1-AU-PRE 3 Pole XLRMale ChassisMount, AType, Gold Plated Contacts, Vertical PCBMount, Separate ground Pin 1. Black Finish
IMAGE MAY DIFFER
SKU:AC3MAV1-AU-PRE
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
No. of Positions: 3Gender: Male
Finish: Black
Current Carrying Capacity: 6A
IP Rating: IP40
Contact Plating: Gold
Termination: Printed Circuit Boards (PCB)
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V ( Not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1500V
Typical Contact Resistance: <5mΩ
Insulation Resistance: 2GΩ
Operating Temperature: -25˚C to +75˚C (-13°F to +167°F)
Mating Cycle Durability: 1500
Housing Material: Diecast Zinc Alloy
3 Pole XLR Male Chassis Mount, A Type, Gold Plated Contacts, Vertical PCB Mount, Separate ground Pin 1. Black Finish
