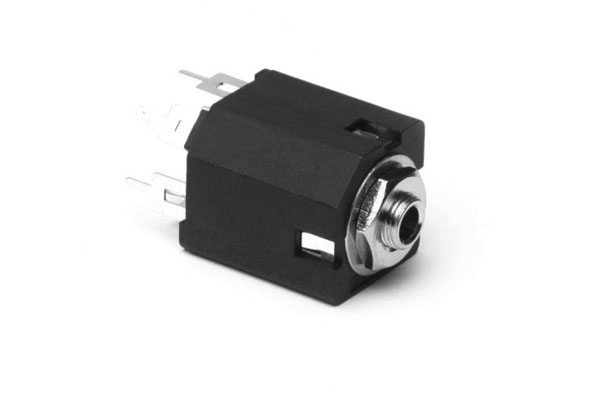

ACJM-MV35-2S 3.5mm Vertical PCB Phone Jack,Mono (2S Channels),Metal Bore, Without Nut,MetalThreadless

Name: ACJM-MV35-2S 3.5mm Vertical PCB Phone Jack,Mono (2S Channels),Metal Bore, Without Nut,MetalThreadless
Brand: Amphenol Audio
SKU: ACJM-MV35-2S
Availability: InStock

IMAGE MAY DIFFER

SKU:ACJM-MV35-2S

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

Current Carrying Capacity: 10A (depending on mating connector)
IP Rating: IP40
Termination: Solder
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Operating Temperature: -25ºC to +70ºC (-13ºF to 158ºF)
Mating Cycle Durability: 10,000
Housing Material: Nylon PA66 30% Glass Filled

3.5mm Vertical PCB Phone Jack, Mono (2S Channels), Metal Bore, Without Nut, Metal Threadless
