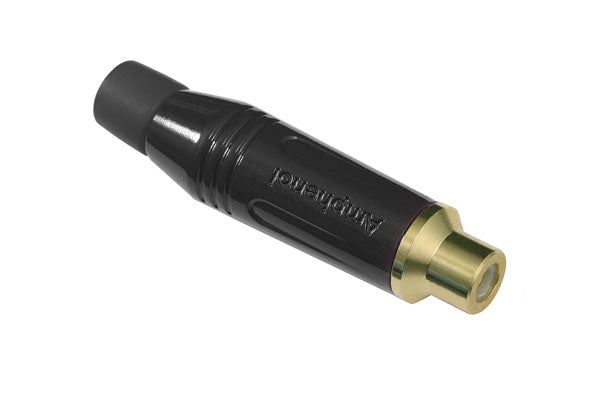

ACJR-BLKRCA Female Cable Connector,Musician Range, Diecast Shell, Gold Plated Contacts, Black Finish, Black Grommet
ACJR-BLKRCA Female Cable Connector,Musician Range, Diecast Shell, Gold Plated Contacts, Black Finish, Black Grommet
IMAGE MAY DIFFER
SKU:ACJR-BLK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 2Gender: Female
Finish: Black
Current Carrying Capacity: 10A (depending on mating connector)
IP Rating: IP40
Contact Plating: Gold
Termination: Solder
Max Wire Gauge: 14AWG - 2.5mm²
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: < 10mΩ (Depends on mating connector)
Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
Operating Temperature: -25ºC to +75ºC (-13ºF to +167ºF)
Mating Cycle Durability: 500
Housing Material: Diecast Zinc Alloy EZDA No.3
RCA Female Cable Connector, Musician Range, Diecast Shell, Gold Plated Contacts, Black Finish, Black Grommet
